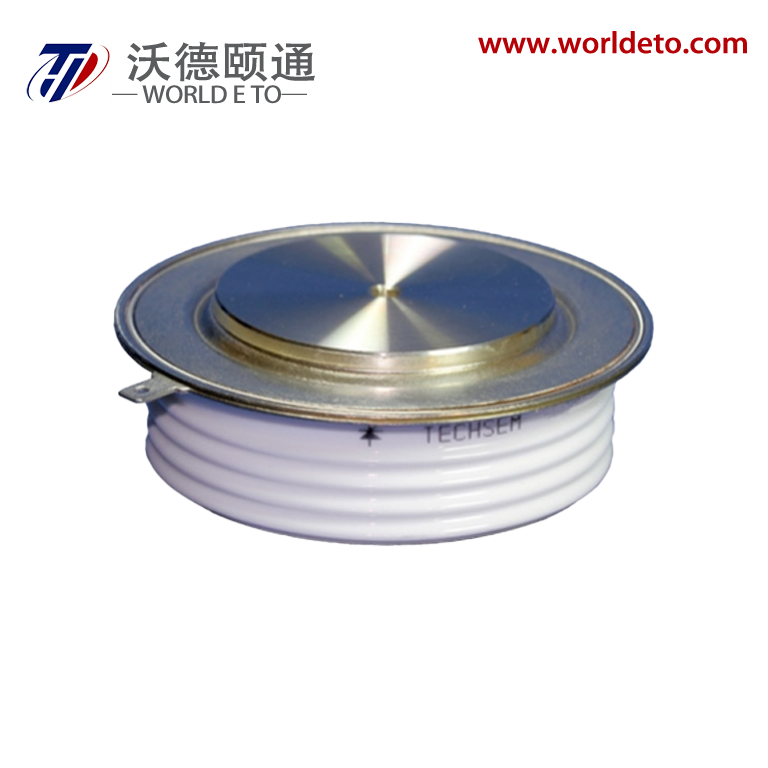

SYMBOL
|
CHARACTERISTIC
|
TEST CONDITIONS
|
Tj(℃) |
VALUE |
UNIT
|
Min |
Type |
Max |
IF(AV) |
Mean forward current |
180°half sine wave 50Hz Double side cooled |
TC=70℃ |
125 |
|
|
700 |
A |
VRRM |
Repetitive peak reverse voltage |
tp=10ms |
125 |
4000 |
|
4500 |
V |
IRRM |
Repetitive peak current |
at VRRM |
125 |
|
|
100 |
mA |
IFSM |
Surge forward current |
10ms half sine wave VR=0 |
125
|
|
|
16 |
kA |
I2t |
I2t for fusing coordination |
|
|
1280 |
103A2s |
VFO |
Threshold voltage |
|
125
|
|
|
1.70 |
V |
rF |
Forward slope resistance |
|
|
0.98 |
mΩ |
VFM |
Peak forward voltage |
IFM=2000A, F=24kN |
25 |
|
|
3.80 |
V |
Irm |
Reverse recovery current |
ITM=1000A, tp=4000µs, di/dt=-60A/µs, VR=100V
|
125
|
|
610 |
|
A |
trr |
Reverse recovery time |
|
7.0 |
|
µs |
Qrr |
Recovery charge |
|
1500 |
|
µC |
Rth(j-c) |
Thermal resistance Junction to case |
At 180°sine, double side cooled Clamping force 24kN |
|
|
|
0.020 |
℃ /W
|
Rth(c-h) |
Thermal resistance case to heatsink |
|
|
|
0.005 |
Fm |
Mounting force |
|
|
19 |
|
26 |
kN |
Tvj |
Junction temperature |
|
|
-40 |
|
125 |
℃ |
Tstg |
Stored temperature |
|
|
-40 |
|
140 |
℃ |
Wt |
Weight |
|
|
|
440 |
|
g |
Outline |
ZT50cT |
