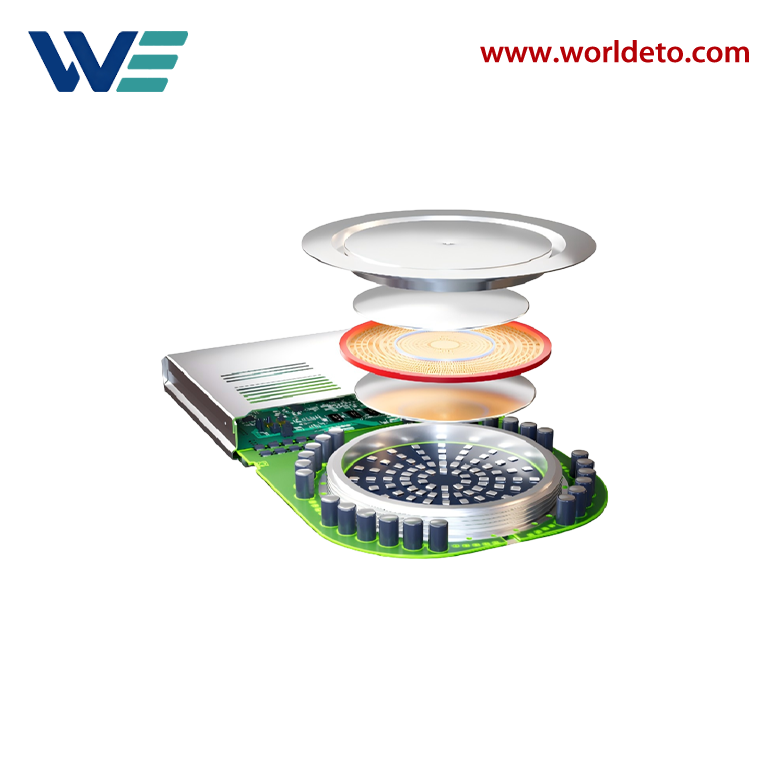

Asymmetric IGCT (A-IGCT)

YT-ASC80Y6500IC#,Asymmetric IGCT Plus

6500V 8000A, Integrated Gate Drive

Brand:

Spu:

YT-ASC80Y6500IC#

Appurtenance:

Product Brochure:DOWNLOAD

Introduction
Outline

Introduction

YT-ASC80Y6500IC#

Applications

Modular multilevel converte
Static var compensato
High power converter

Features

High withstand current
Black-startup capability
Failure short circuit mode

Key Parameters

V _DRM	6500	V
I_TGQM	8000	A
I_TSM	48.2	kA
VTO	1.24	V
r_T	0.22	mΩ
V_DClink	4000	V

Blocking Data

Symbol	Conditions	Min	Typ	Max	Uint
V _DRM	TVJ= 125℃ , I D ≤I DRM, tp= 10ms	-	-	6500	V
I _DRM	TVJ= 125℃ , VD= V DRM, tp= 10ms	-	-	150	mA
dv/dt	TVJ= 125℃ , VD=0.67V DRM			1000	V/ μs
V_DClink	The intermediate DC voltage allowed for a 100FIT failure rate	-	-	4000	V
V_RRM	/	-	-	20	V

On-State Data

Symbol	Conditions	Min	Typ	Max	Uint
IT(RMS)	TC = 85℃ , Half-wave sinusoidal, double-sided cooling	-	-	4290	A
I_TSM I²t	TVJ = 125℃ , Half-wave sinusoidal, 10ms, VD= VR=0	- -	- -	48.2 1162	kA 10⁴A²s
V_TM	TVJ = 125℃ , IT =4000A	-	2.52	-	V
V_TO r_T	TVJ = 125℃ , IT = 1000…4000A	- -	1.24 0.22	- -	V mΩ

Turn-on Data

Symbol

Conditions

Min

Typ

Max

Uint

di_T/dt

TVJ = 125℃ , IT = 4000A, VD = 4000V, f=0..500Hz

1000

A/ μs

t_don

t_donSF

t_r

E _on

TVJ = 125℃ , IT =4000A, VD = 4000V, di/dt = VD/L i , C CL =20μF,

L i = 3μH, L CL = 0.3μH

1.5

μs

Turn-off Data

Symbol

Conditions

Min

Typ

Max

Uint

I_TGQM

TVJ = 125℃ , V DM ≤ V DRM, VD =4000V, L CL = 0.3μH, C CL = 20μF, R S = 0.5Ω

8000

t_doff

t_doffSF

t_f

E _off

TVJ = 125℃ , ITGQ = 8000A, VD =4000V, V DM ≤ V DRM, C CL = 20μF, R S = 4Ω ,

L i =2μH, L CL = 0.3μH

μs

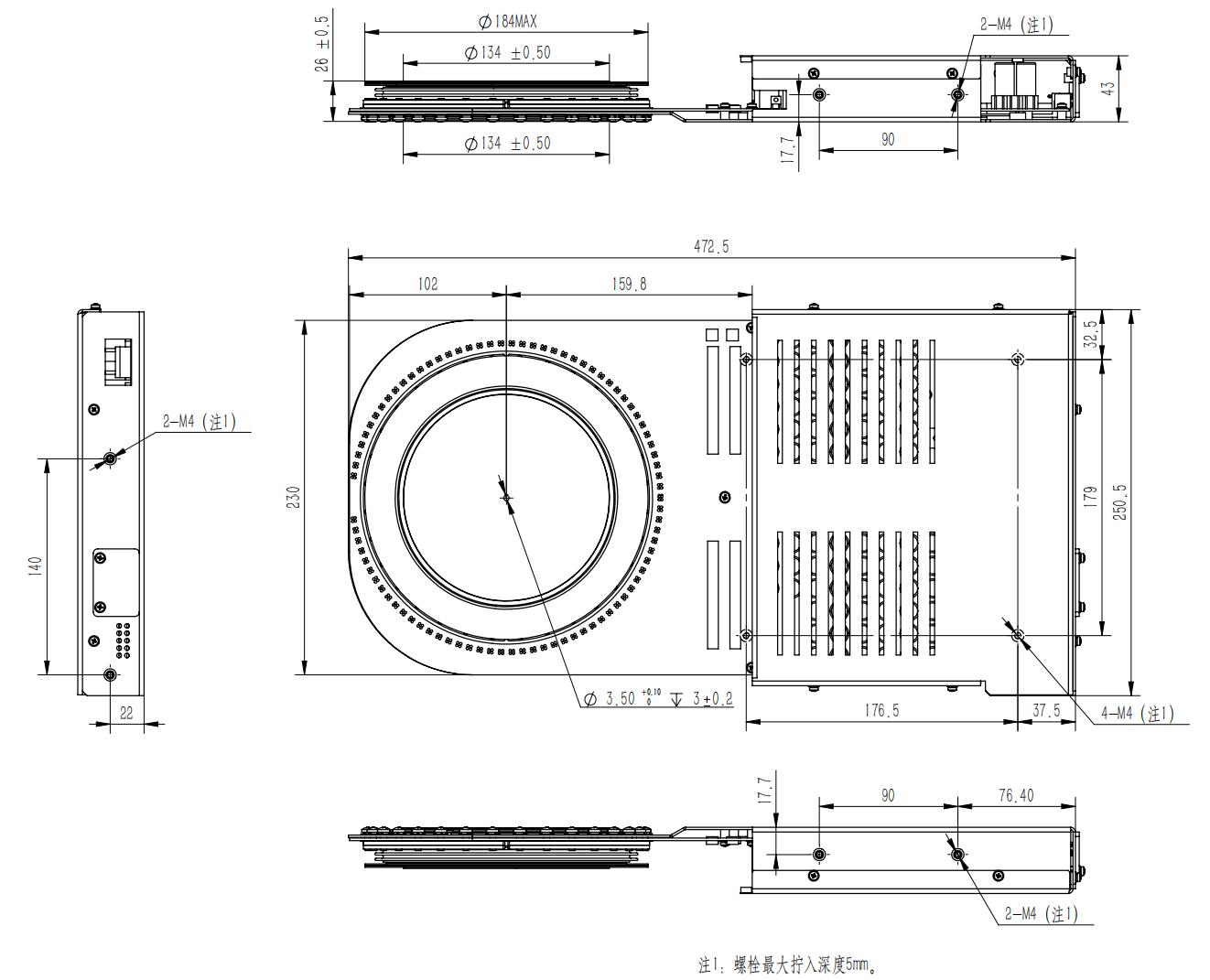

Outline
