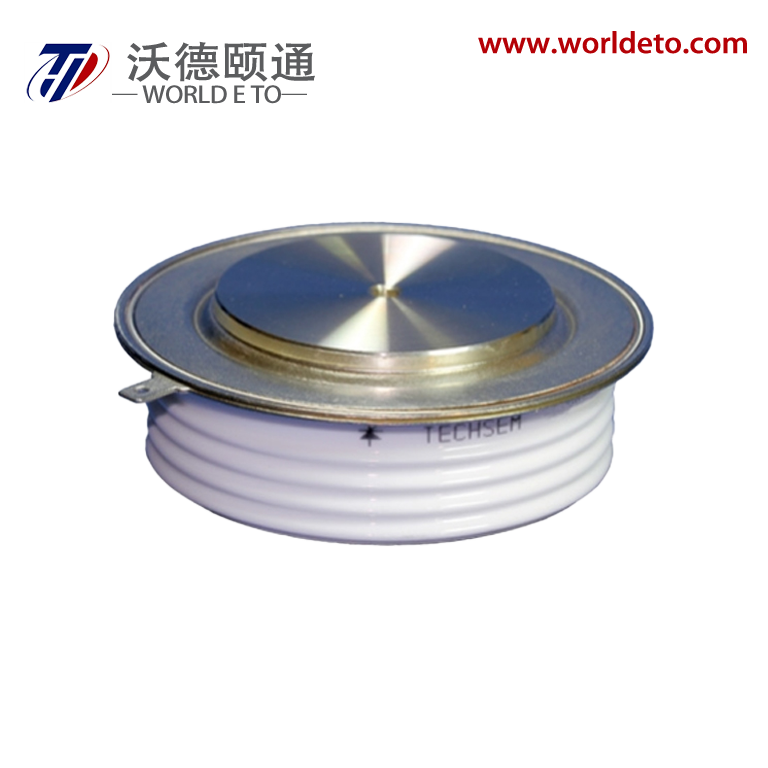

IT(AV) | 538A |
VRRM | 4000V 4200V 4500V 5000V |
Features
Typical Applications
SYMBOL |
CHARACTERISTIC |
TEST CONDITIONS | Tj(℃) | VALUE |
UNIT | |||
Min | Type | Max | ||||||
IF(AV) | Mean forward current | 180°half sine wave 50Hz Double side cooled, | TC=85℃ |
|
|
| 538 | A |
VRRM | Repetitive peak reverse voltage | tp=10ms | 150 | 4000 |
| 5000 | V | |
IRRM | Repetitive peak current | at VRRM | 150 |
|
| 50 | mA | |
IFSM | Surge forward current | 10ms half sine wave VR=0.6VRRM | 150 |
|
| 7.5 | kA | |
I2t | I2t for fusing coordination |
|
| 281 | A2s*103 | |||
VFO | Threshold voltage |
| 150 |
|
| 1.89 | V | |
rF | Forward slope resistance |
|
| 1.18 | mΩ | |||
VFM | Peak forward voltage | ITM=1000A, F=15kN | 25 |
|
| 3.80 | V | |
Irm | Reverse recovery current | ITM=1000A, tp=4000µs, di/dt=-60A/µs, VR=100V |
150 |
| 240 |
| A | |
trr | Reverse recovery time |
| 10 |
| µs | |||
Qrr | Recovery charge |
| 720 | 900 | µC | |||
Rth(j-c) | Thermal resistance Junction to case | At 180° sine, double side cooled Clamping force15kN |
|
|
| 0.035 |
℃ /W | |
Rth(c-h) | Thermal resistance case to heat sink |
|
|
| 0.008 | |||
Fm | Mounting force |
|
| 10 |
| 20 | kN | |
Tvj | Junction temperature |
|
| -40 |
| 150 | ℃ | |
Tstg | Stored temperature |
|
| -40 |
| 160 | ℃ | |
Wt | Weight |
|
|
| 250 |
| g | |

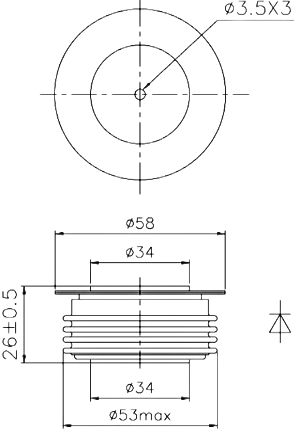

Outline | ZT33cT |
