Time-delay relay

JSB-5145M JSB-5145M （1Z）10A,28Vd.c.20000 Times Time-delay relay for military use,Defense, aerospace, automation control, ignition control

Time-delay relay for military use,Defense, aerospace, automation control, ignition control

Brand:

Spu:

JSB-5145M

Introduction

Introduction

This product can be widely used in national defense, aviation, aerospace, scientific research, industrial control, and other electronic and electrical equipment for timing switching circuits.

10A,28Vd.c.20000Times

Dimensions:20.5mm×10.5mm×17mm(L×W×H)

Features

Compact Size, High Load Current Capability
One Set of Changeover Contacts
Welded Hermetic Seal
High Timing Accuracy
Long Delay Time Using PIC Microcontroller

Parameter	Min	Typ	Max	Unit
Output Parameters
Number of Contact Sets	1Z(one changeover)
Contact Load and Life Cycles	10A,28Vd.c.20000 Times
Contact Resistance			100	mΩ
Input Parameters
Operating Voltage	24.3	27	29.7	Vd.c.
Input Current			70	mA
Timing Parameters
Time-delay parameters	0.1s～86400s
Timing Accuracy	±2%±5ms
Recycle Time	1			s
Electrical Performance
Insulation Resistance	1000			MΩ
Dielectric Withstand Voltage	500			Vr.m.s.

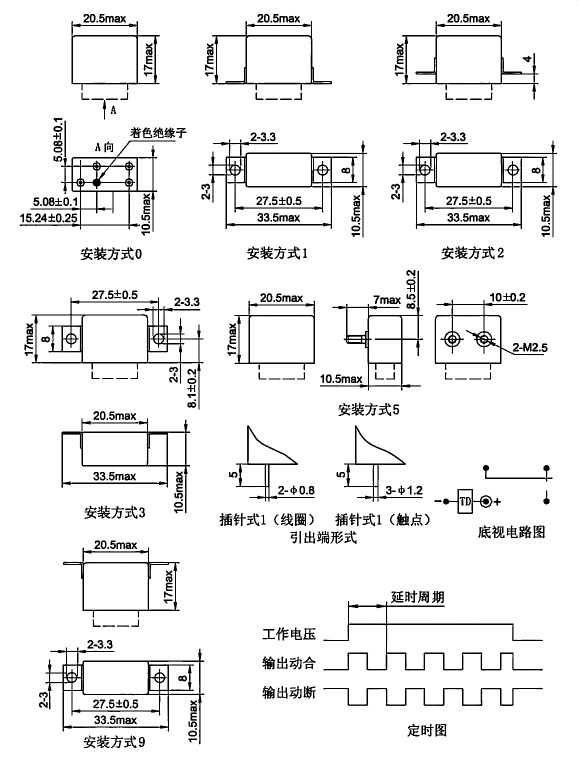

Dimensions Installation Method

jsb 5145m jsb 5145m 1z10a28vdc20000 times time delay relay for military usedefense aerospace automation control ignition control-0

Time-delay relayList

P/N	Description	Pics

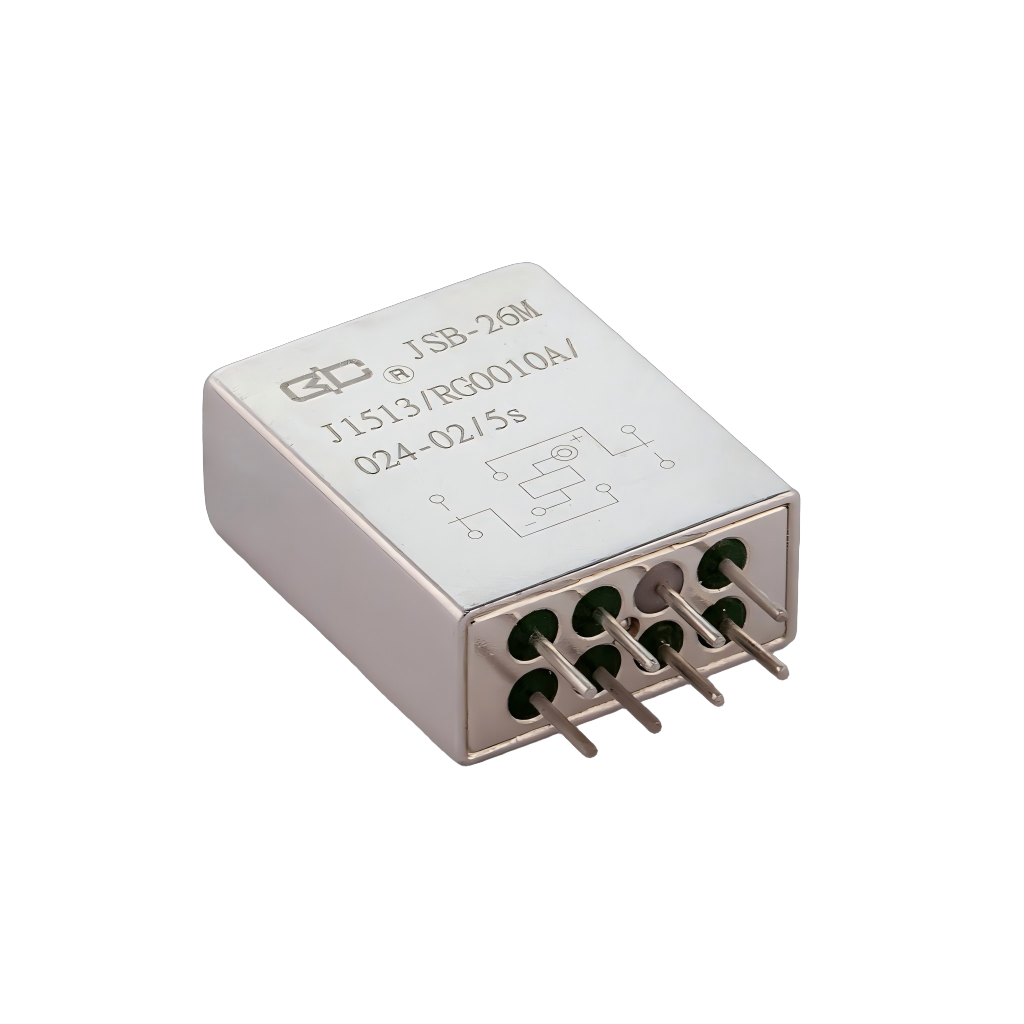

JSB-26MG	JSB-26MG,This type of solid-state delay relay is widely used in the fields of national defense, aviation, aerospace, scientific research, industrial control, and other electronic and electrical equipment timing switching circuits.

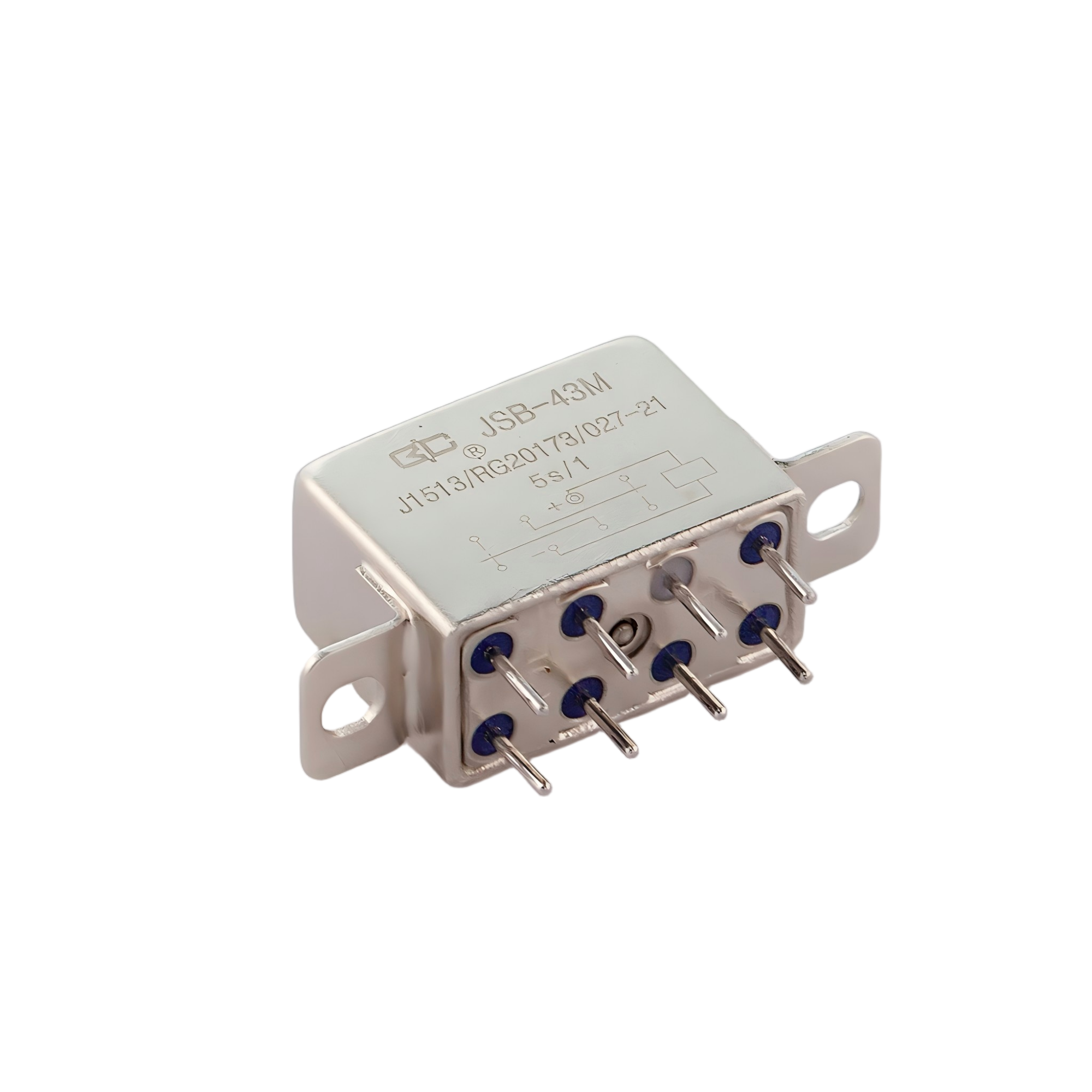

JSB-43M	JSB-43M is a sealed hybrid delay relay widely used in the fields of national defense, aviation, aerospace, scientific research, industrial control, and other electronic and electrical equipment timing switching circuits.
JSB-44MG	JSB-44MG,This type of solid-state delay relay is widely used in the fields of national defense, aviation, aerospace, scientific research, industrial control, and other electronic and electrical equipment timing switching circuits.

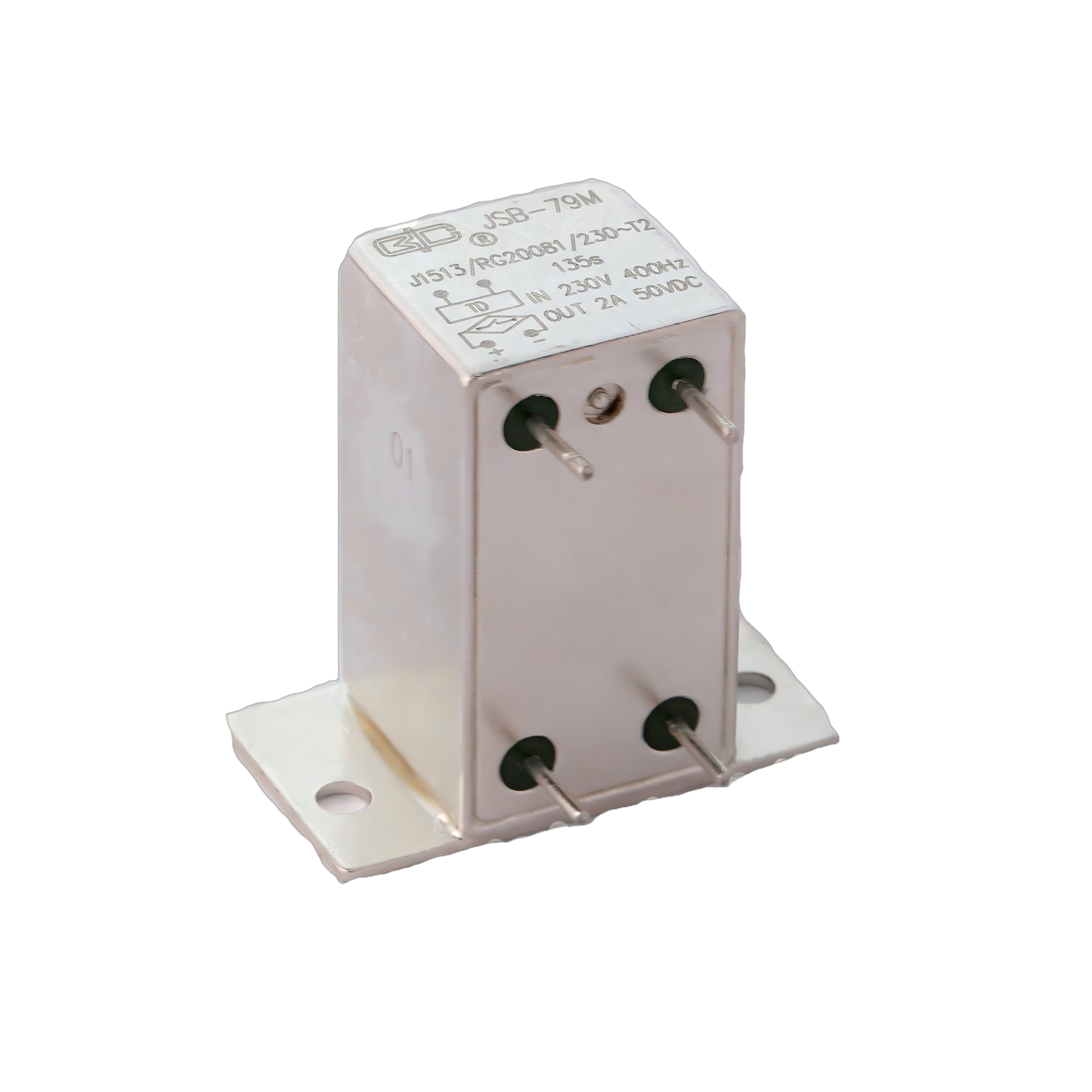

JSB-79M	JSB-79M,This type of solid-state delay relay is widely used in the fields of national defense, aviation, aerospace, scientific research, industrial control, and other electronic and electrical equipment timing switching circuits.

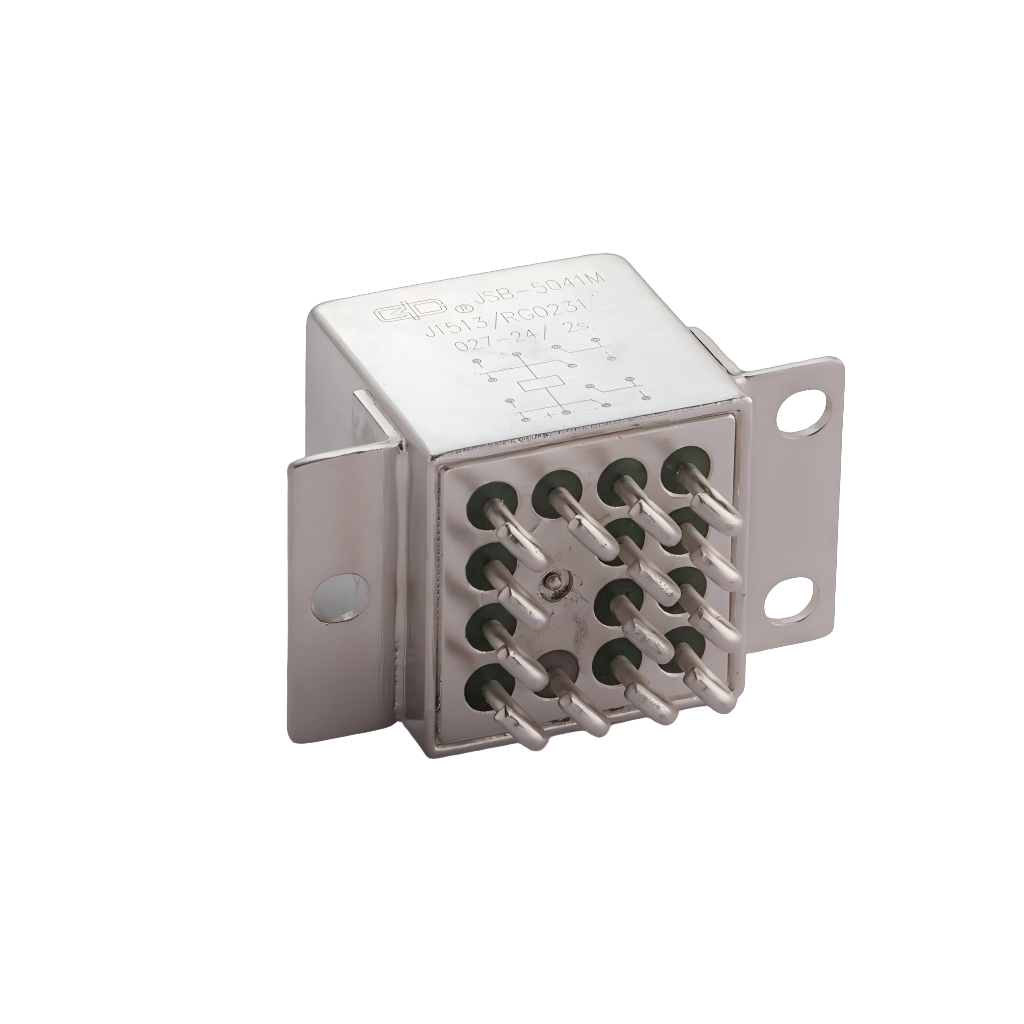

JSB-5041M	JSB-5041M is a hybrid delay relay widely used in the fields of national defense, aviation, aerospace, scientific research, industrial control, and other electronic and electrical equipment timing switching circuits.

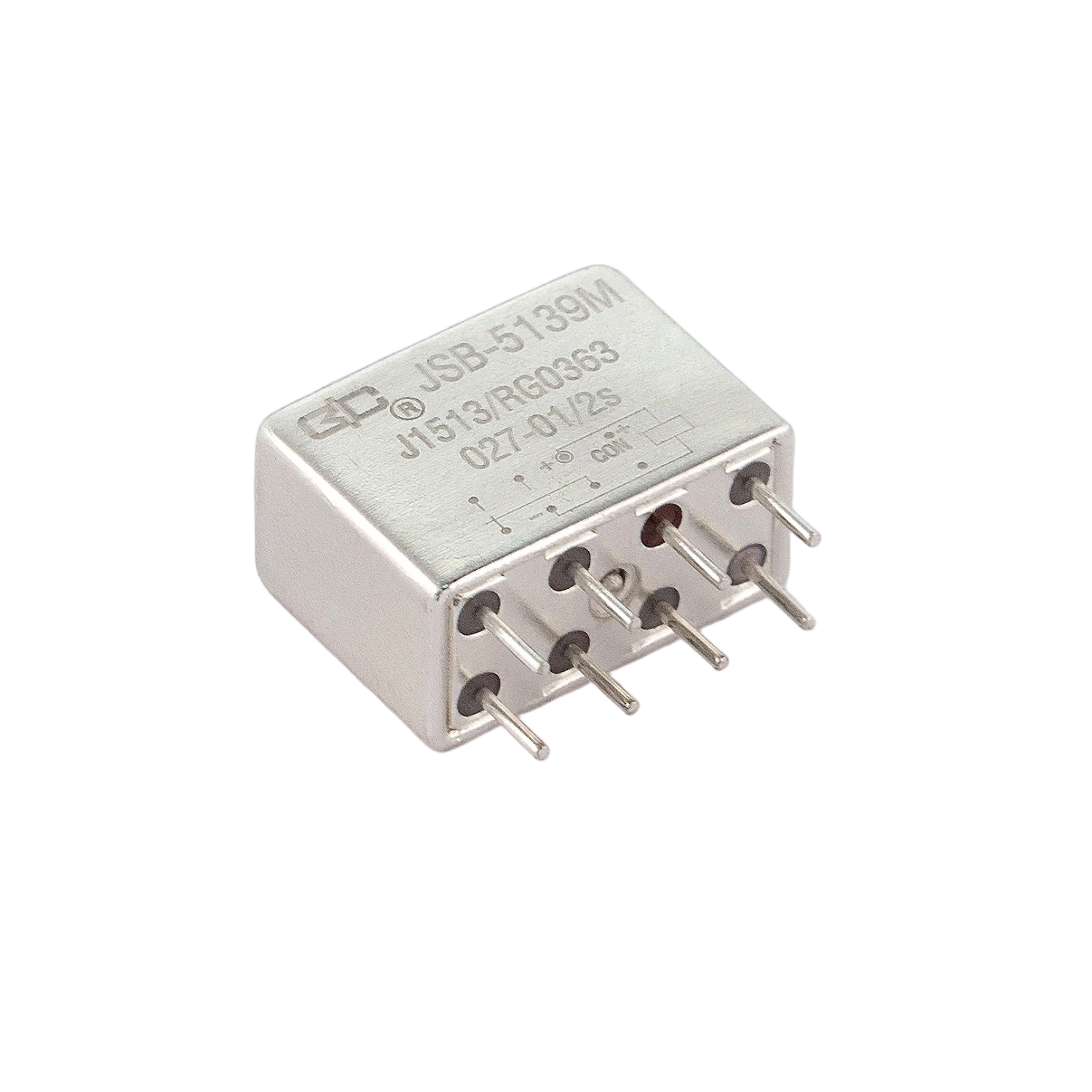

JSB-5139M	JSB-5139M is a hybrid delay relay widely used in the fields of national defense, aviation, aerospace, scientific research, industrial control, and other electronic and electrical equipment timing switching circuits.
JSB-5140M	JSB-5140M is a hybrid delay relay widely used in the fields of national defense, aviation, aerospace, scientific research, industrial control, and other electronic and electrical equipment timing switching circuits.

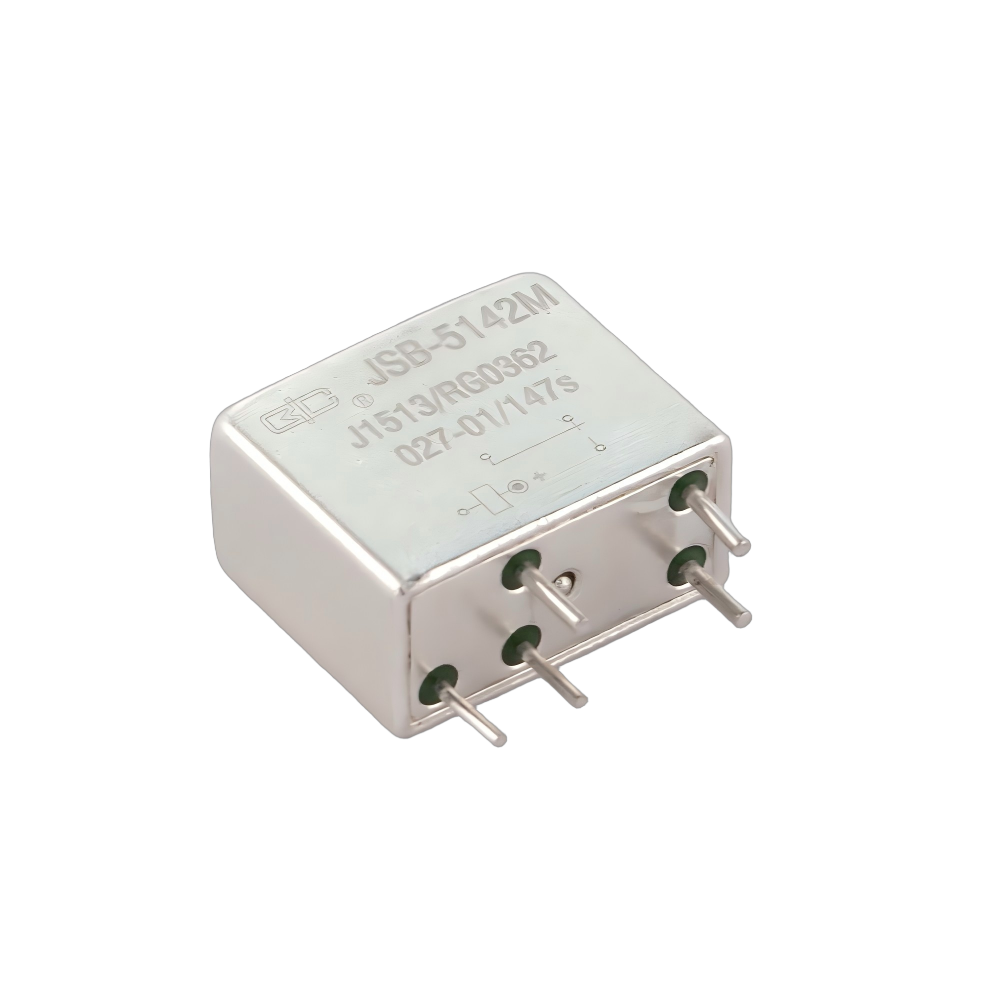

JSB-5142M	JSB-5142M is a hybrid delay relay widely used in the fields of national defense, aviation, aerospace, scientific research, industrial control, and other electronic and electrical equipment timing switching circuits.

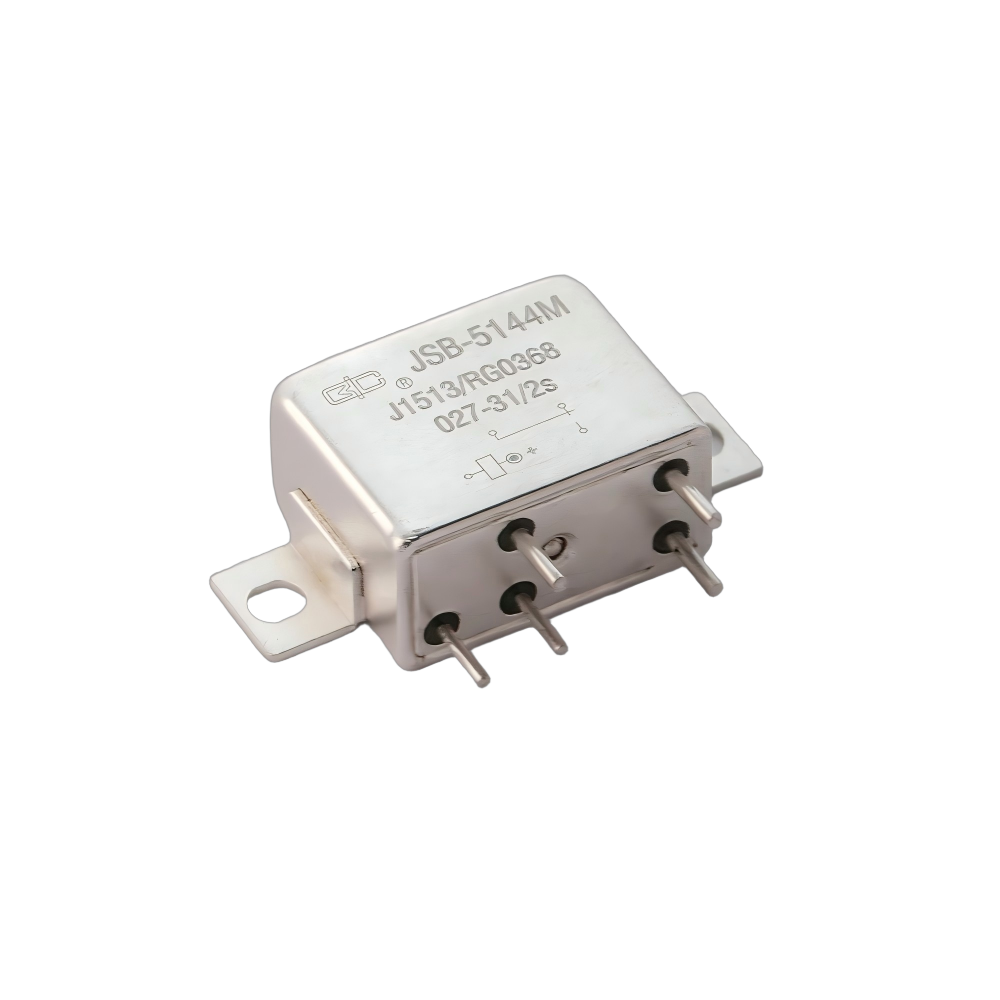

JSB-5144M	JSB-5144M is a hybrid delay relay widely used in the fields of national defense, aviation, aerospace, scientific research, industrial control, and other electronic and electrical equipment timing switching circuits.

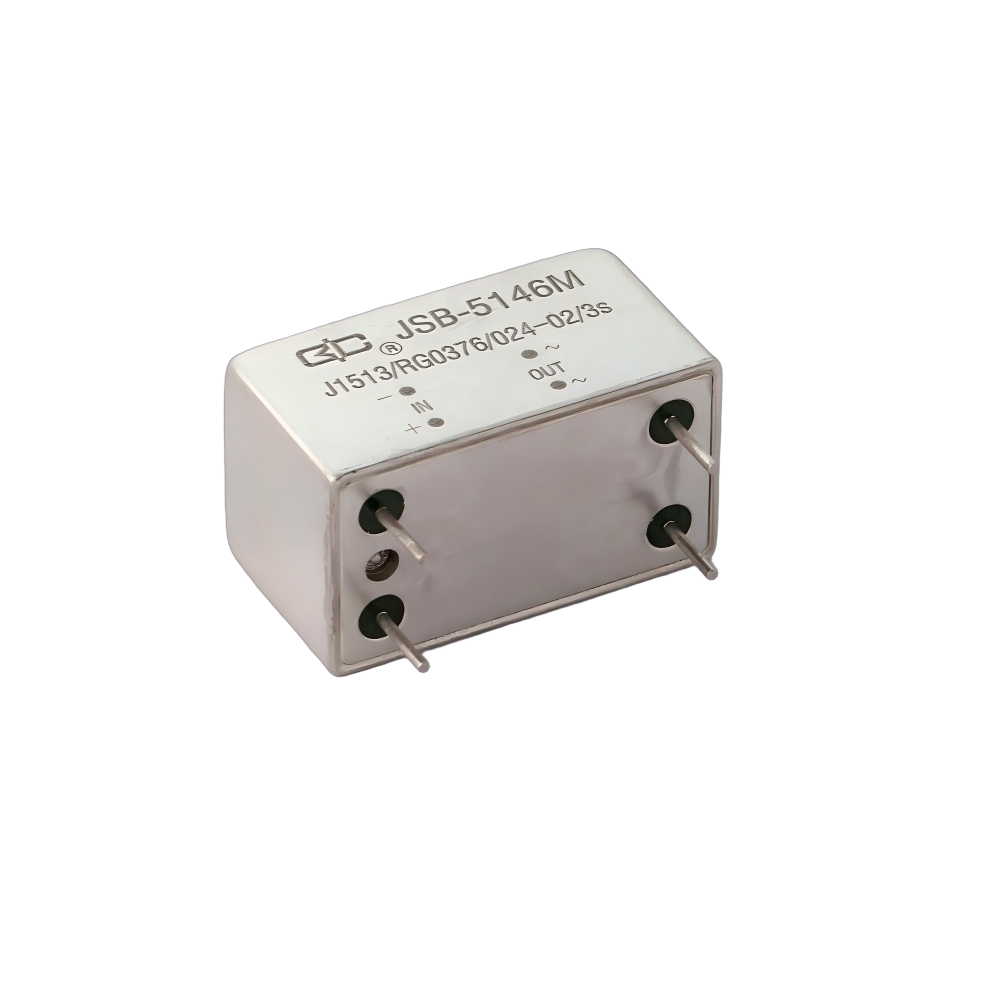

JSB-5146M	JSB-5146M is a hybrid delay relay widely used in the fields of national defense, aviation, aerospace, scientific research, industrial control, and other electronic and electrical equipment timing switching circuits.

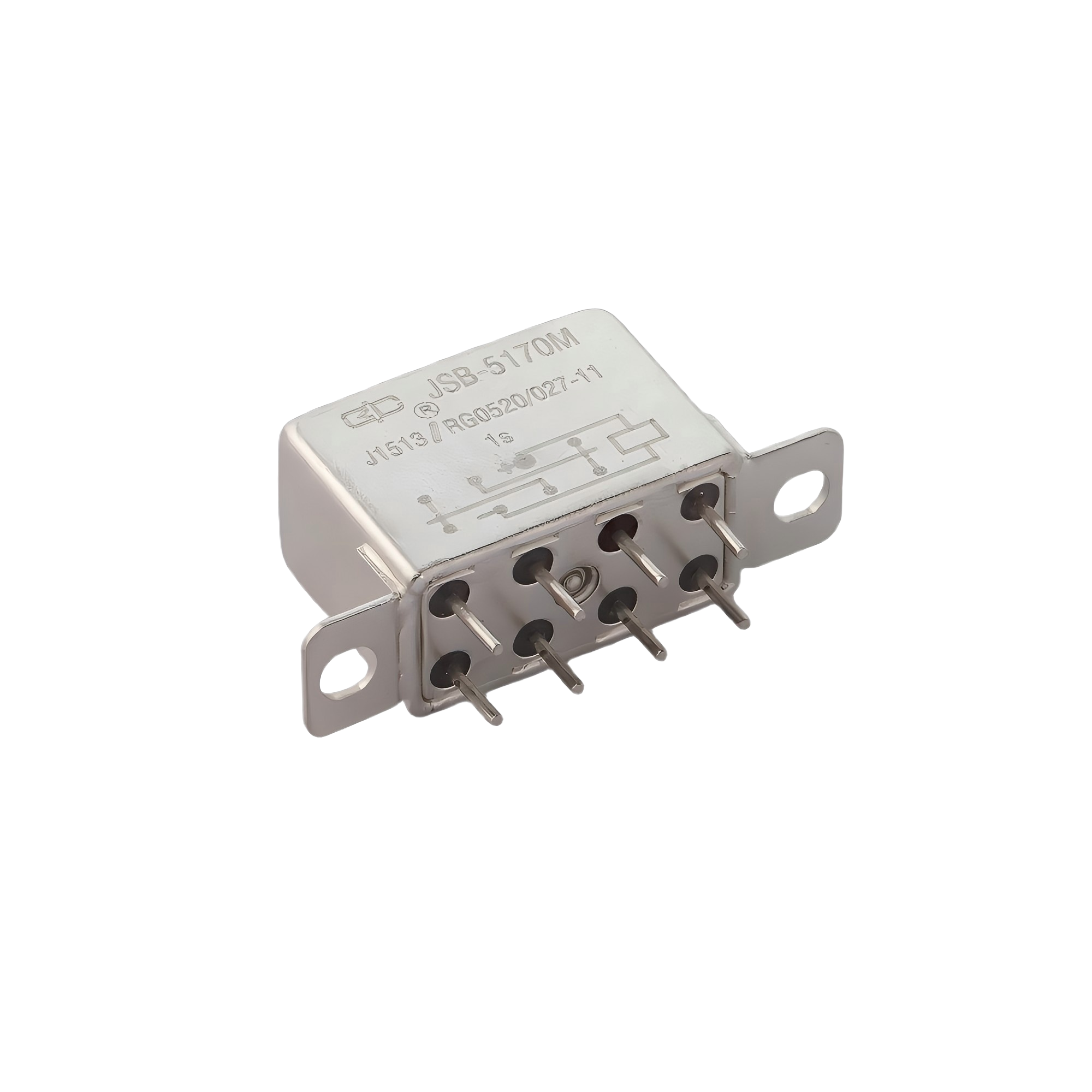

JSB-5170	JSB-5170 is a hybrid delay relay widely used in the fields of national defense, aviation, aerospace, scientific research, industrial control, and other electronic and electrical equipment timing switching circuits.
JSB-5173	JSB-5173 is a hybrid delay relay widely used in the fields of national defense, aviation, aerospace, scientific research, industrial control, and other electronic and electrical equipment timing switching circuits.

*** For more product information, please contact the agent.
