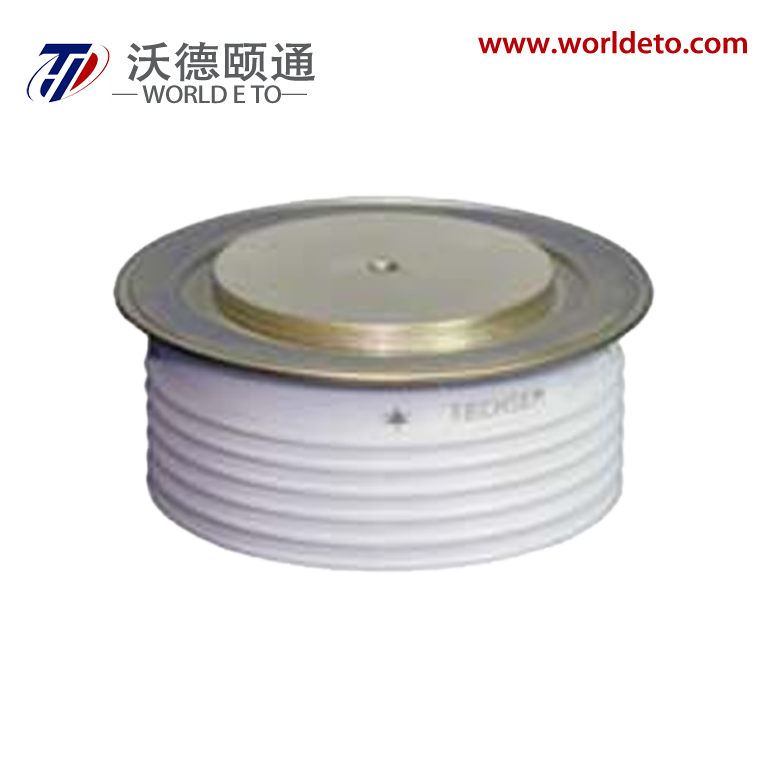

IT(AV) | 900A |
VRRM | 8100V 8300V 8500V |
Features
Typical Applications
SYMBOL |
CHARACTERISTIC |
TEST CONDITIONS | Tj(℃) | VALUE |
UNIT | |||
Min | Type | Max | ||||||
IF(AV) | Mean forward current | 180°half sine wave 50Hz Double side cooled | TC=85℃ | 150 |
|
| 900 | A |
VRRM | Repetitive peak reverse voltage | tp=10ms | 150 | 8000 |
| 8500 | V | |
IRRM | Repetitive peak current | at VRRM tp=10ms | 150 |
|
| 200 | mA | |
IFSM | Surge forward current | 10ms half sine wave. VR=0.6VRRM |
150 |
|
| 10 | kA | |
I2t | I2t for fusing coordination |
|
| 500 | 103A2s | |||
VFO | Threshold voltage |
|
150 |
|
| 1.00 | V | |
rF | Forward slope resistance |
|
| 1.00 | mΩ | |||
VFM | Peak forward voltage | IFM=1500A, F=24kN | 25 |
|
| 2.60 | V | |
Qrr | Recovery charge | IFM=1000A, tp=4000µs, di/dt=-20A/µs, VR=100V | 150 |
| 4000 |
| µC | |
Rth(j-c) | Thermal resistance Junction to case | At 180°sine. double side cooled Clamping force 24kN |
|
|
| 0.022 |
℃ /W | |
Rth(c-h) | Thermal resistance case to heatsink |
|
|
| 0.005 | |||
Fm | Mounting force |
|
| 19 |
| 26 | kN | |
Tvj | Junction temperature |
|
| -40 |
| 150 | ℃ | |
Tstg | Stored temperature |
|
| -40 |
| 160 | ℃ | |
Wt | Weight |
|
|
| 560 |
| g | |

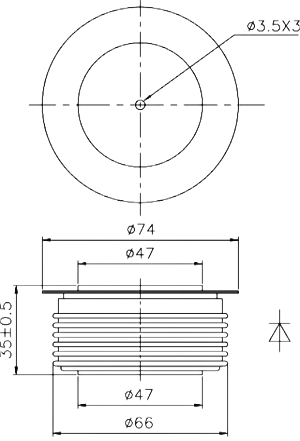

Outline | ZT50dT |
