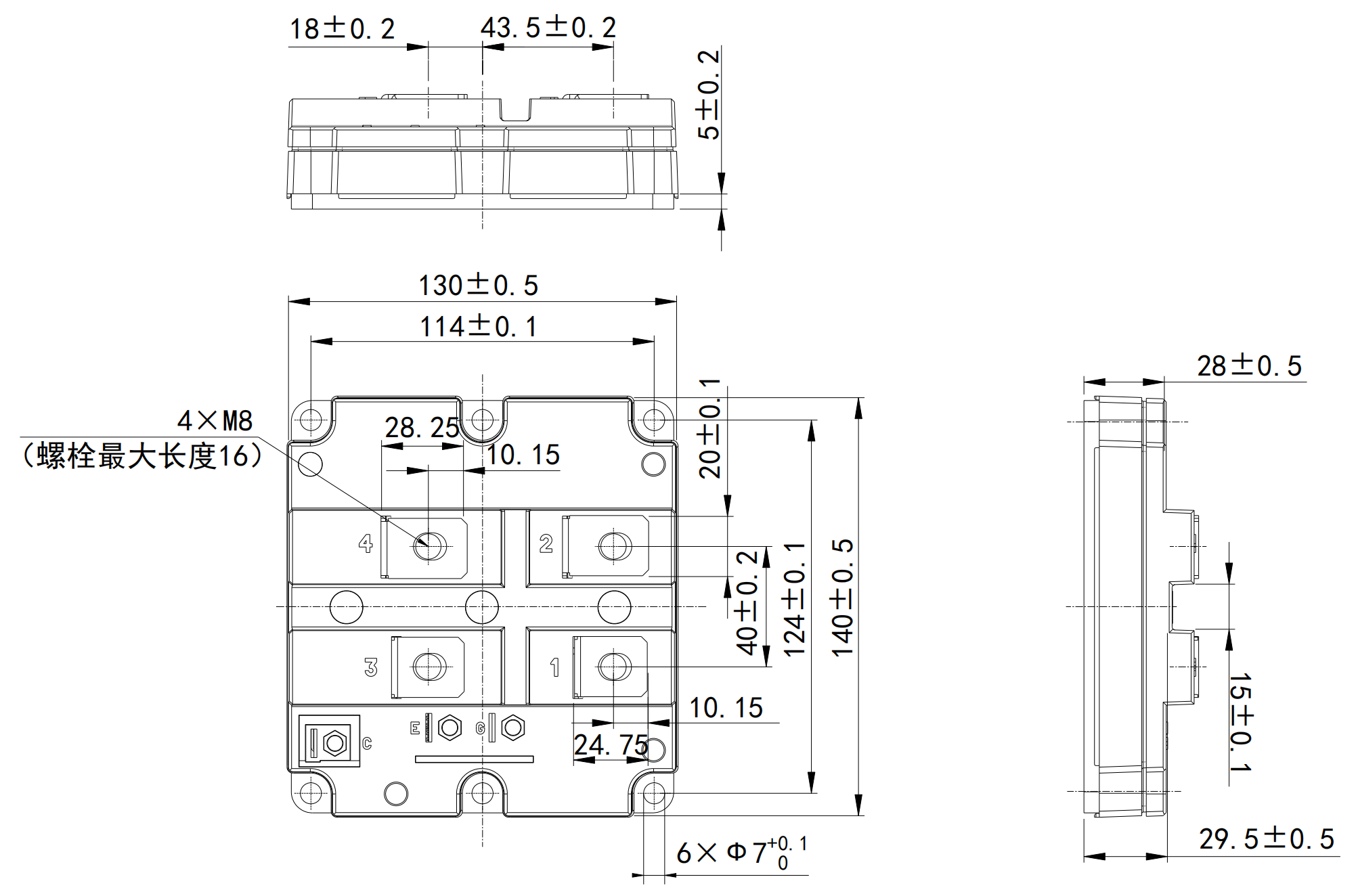

Diode Module，3300V 1500A,38mm
Brief introduction
Diode module, 3300V, 1500A, produced by CRRC.
Key Parameters
VRRM |
3300 |
V |
|
VF |
Typ. |
2.40 |
V |
IF |
Max. |
1500 |
A |
IFRM |
Max. |
3000 |
A |
Typical Applications
Features
Absolute Maximum Ratings
Symbol |
Parameter |
Test Conditions |
Value |
Unit |
VRRM |
Repetitive voltage |
TC= 25 °C |
3300 |
V |
IF |
Forward current |
DC |
1500 |
A |
IFRM |
Peak forward current |
tP = 1ms |
3000 |
A |
IFSM |
Surge current |
VR =0V, tP = 10ms, Tvj = 25 °C |
12000 |
A |
I2t |
I2t I2t |
VR =0V, tP = 10ms, Tvj = 125 °C |
720 |
kA2s |
Visol |
Isolation voltage - per module |
(Commoned terminals to base plate), AC RMS,1 min, 50Hz, TC= 25 °C |
6000 |
V |
QPD |
Partial discharge - per module |
IEC1287. V1=3500V, V2=2600V,50Hz RMS,TC= 25 °C |
10 |
pC |
Electrical Characteristics
Symbol |
Parameter |
Test Conditions |
Min. |
Typ. |
Max. |
Unit |
|
|
IRRM |
Repetitive reverse current |
VRM = VRRM |
|
|
1 |
mA |
|
VRM = VRRM, TC=150 °C |
|
|
100 |
mA |
|||
|
VF |
Forward voltage |
IF = 1500A |
|
2.40 |
|
V |
|
IF = 1500A,Tvj = 150 °C |
|
2.80 |
|
V |
|||
|
Qrr |
Reverse recovery charge |
IF =1500A, VCC = 1800V, RG(ON)=1.0Ω , CGE=330nF, LS=150nH, - diF/dt = 4000A/μs, (Tvj= 150 °C). IGBT: TIM1500ESM33-PSA011 |
Tvj= 25 °C |
|
1020 |
|
μC |
Tvj= 150 °C |
|
1710 |
|
μC |
|||
|
Irr |
Reverse recovery current |
Tvj= 25 °C |
|
1260 |
|
A |
|
Tvj= 150 °C |
|
1450 |
|
A |
|||
|
Erec |
Reverse recovery energy |
Tvj= 25 °C |
|
1.50 |
|
J |
|
Tvj= 150 °C |
|
2.60 |
|
J |
|||
