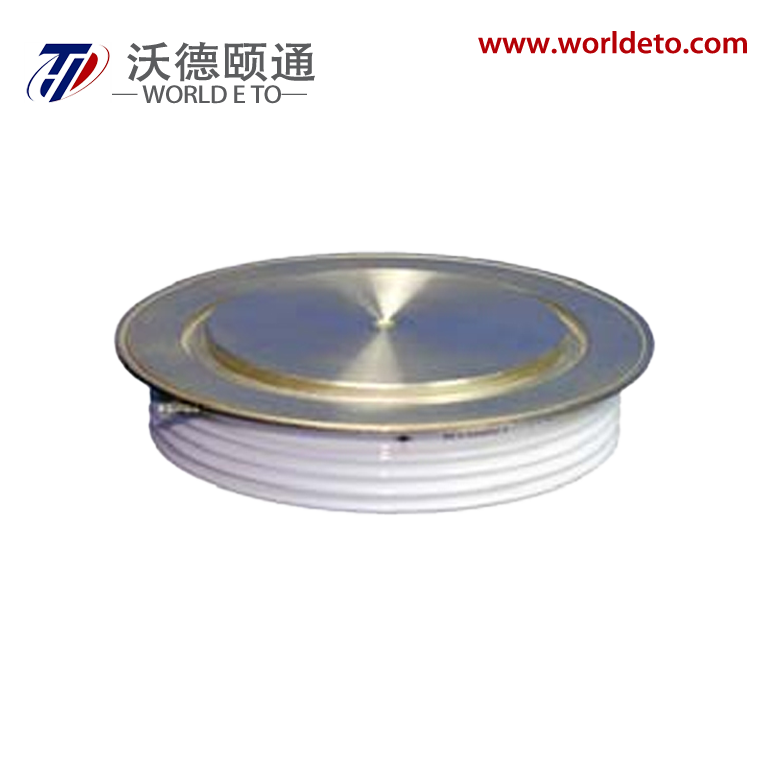

Y76KFE,Non Symmetric Fast Turn-off Thyristor

SYMBOL

CHARACTERISTIC

TEST CONDITIONS

Tj(℃)

VALUE

UNIT

Min

Type

Max

IT(AV)

Mean on-state current

180。half sine wave 50Hz Double side cooled,

TC=55°C

125

3415

A

TC=70°C

2870

VDRM

Repetitive peak off-state voltag

tp=10ms

125

800

2000

V

VRRM

Repetitive peak reverse voltage

1000

1800

IDRM IRRM

Repetitive peak current

VD= VDRM VR= VRRM

125

200

mA

ITSM

Surge on-state current

10ms half sine wave VR=0.6VRRM

125

35.6

kA

I2t

I2t for fusing coordination

6337

A2s*103

VTO

Threshold voltage

125

1.21

V

rT

On-stateslop resistance

0.10

mΩ

VTM

Peak on-state voltage

ITM=4000A, F=40kN

15≤tq≤35

25

2.20

V

36≤tq≤50

2.00

V

51≤tq≤75

1.80

V

dv/dt

Critical rate of rise of off-state voltage

VDM=0.67VDRM

125

1000

V/μs

di/dt

Critical rate of rise of on-state current

VDM= 67%VDRM to3000A

Gate pulse tr ≤0.5μs IGM=1.5A

125

1500

A/μs

Qrr

Recovery charge

ITM=2000A, tp=4000µs, di/dt=-20A/µs, VR=100V

125

1300

µC

tq

Circuit commutated turn-off time

ITM=2000A, tp=4000µs, VR =100V dv/dt=30V/µs,di/dt=-20A/µs

100

15

75

µs

IGT

Gate trigger current

VA=12V, IA=1A

25

45

300

mA

VGT

Gate trigger voltage

0.9

4.5

V

IH

Holding current

20

500

mA

IL

Latching current

1000

mA

VGD

Non-trigger gate voltage

VDM=67%VDRM

125

0.3

V

Rth(j-c)

Thermal resistance Junction to case

At 180°sine, double side cooled Clamping force 40kN

0.010

℃ /W

Rth(c-h)

Thermal resistance case to heat sink

0.003

Fm

Mounting force

35

47

kN

Tvj

Junction temperature

-40

125

℃

Tstg

Stored temperature

-40

140

℃

Wt

Weight

1100/ 1460

g

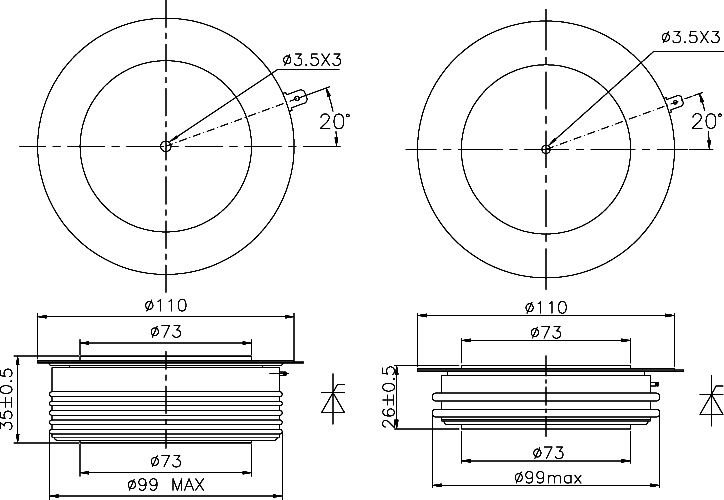

Outline

KT73cT/ KT73dT
