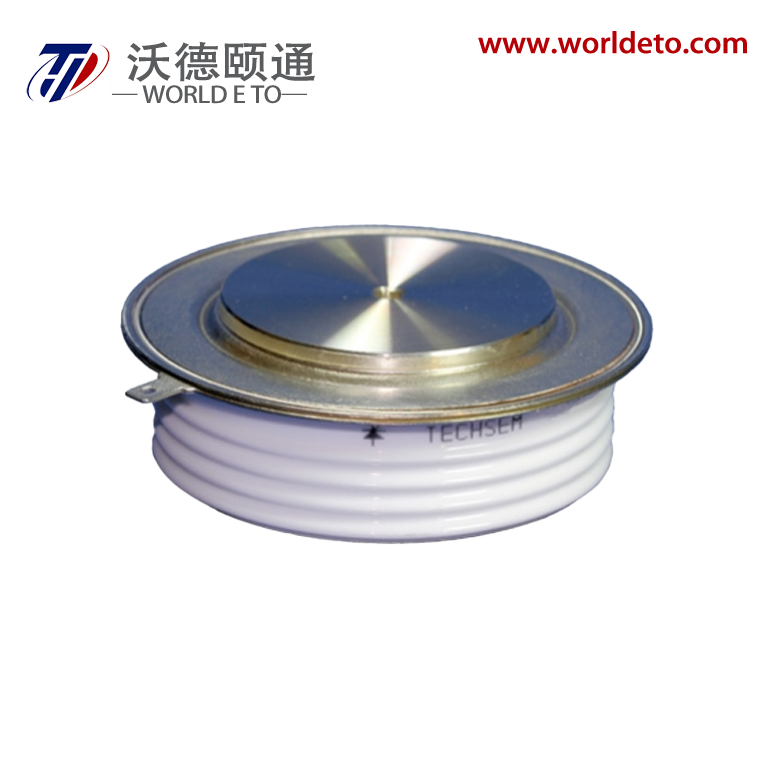

Y50KAD,High Frequency Thyristor

Part No. Y50KAD-KT50cT

Brand:
TECHSEM
Spu:
Y50KAD-KT50cT
Appurtenance:

Product Brochure:DOWNLOAD

  • Introduction
  • Outline
Introduction



IT(AV)

1260A

VDRM,VRRM

1200V    1400V

tq

12~28µs



Features

  • Interdigitated amplifying gates
  • Fast turn-on and high di/dt
  • Low switching losses
  • Short turn-off time
  • Hermetic metal cases with ceramic insulators

Typical Applications

  • Inductive heating
  • Electronic welders
  • Self-commutated inverters
  • AC motor speed control



SYMBOL



CHARACTERISTIC



TEST CONDITIONS

Tj()

VALUE



UNIT

Min

Type

Max

IT(AV)

Mean on-state current

180°half sine wave 50Hz Double side cooled,

TC=55C

125





1260

A

VDRM VRRM

Repetitive peak off-state voltage Repetitive peak reverse voltage

tp=10ms

125

1100



1400

V

IDRM IRRM

Repetitive peak off-state current Repetitive peak reverse current

at VDRM at VRRM

125





80

mA

ITSM

Surge on-state current

10ms half sine wave VR=0.6VRRM

125





16.3

kA

I2t

I2T for fusing coordination





1328

A2s*103

VTO

Threshold voltage



125





1.65

V

rT

On-stateslop resistance





0.36

VTM

Peak on-state voltage

ITM=2400A, F=24kN

25





3.20

V

dv/dt

Critical rate of rise of off-state voltage

VDM=0.67VDRM

125





1000

V/μs

di/dt

Critical rate of rise of on-state current

VDM= 67%VDRM, to2000A

Gate pulse tr ≤0.5μs    IGM=1.5A

125





1500

A/μs

Qrr

Recovery charge

ITM=1000A, tp=4000µs,  di/dt=-20A/µs, VR=100V

125



87

100

µC

tq

Circuit commutated turn-off time

ITM=1000A, tp=4000µs, VR=100V dv/dt=30V/µs, di/dt=-20A/µs

125

12



28

µs

IGT

Gate trigger current



VA=12V, IA=1A



25

30



250

mA

VGT

Gate trigger voltage

0.8



3.0

V

IH

Holding current

20



400

mA

IL

Latching current





500

mA

VGD

Non-trigger gate voltage

VDM=67%VDRM

125





0.3

V

Rth(j-c)

Thermal resistance Junction to case

At 1800 sine, double side cooled Clamping force 24kN







0.020



C /W

Rth(c-h)

Thermal resistance case to heat sink







0.005

Fm

Mounting force





19



26

kN

Tvj

Junction temperature





-40



125

C

Tstg

Stored temperature





-40



140

C

Wt

Weight







440



g

Outline

KT50cT



Outline
