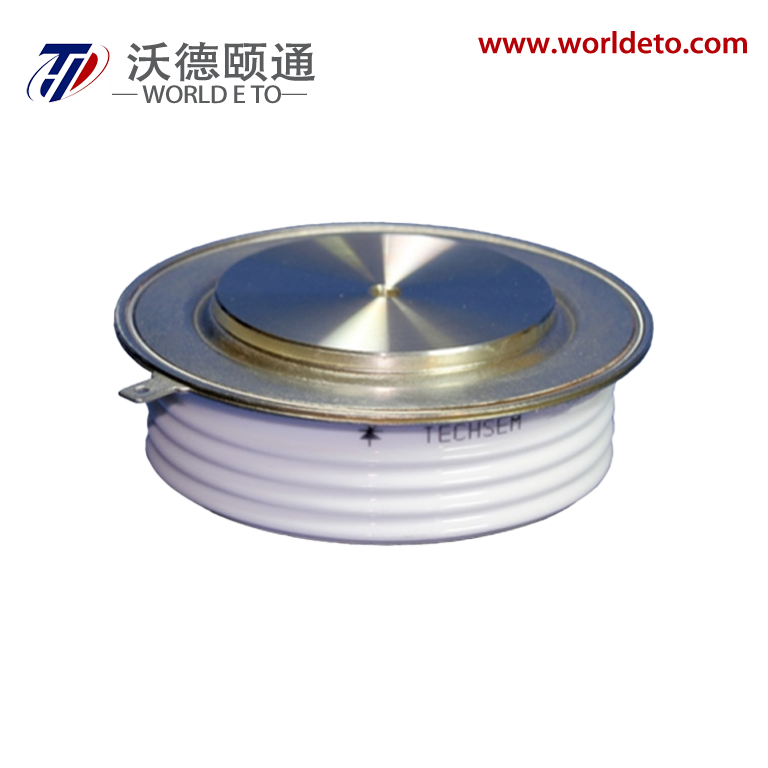

Y50KFE,Non Symmetric Fast Turn-off Thyristor

Part No. Y50KFE-KT50cT

Brand:
TECHSEM
Spu:
Y50KFE-KT50cT
Appurtenance:

Product Brochure:DOWNLOAD

  • Introduction
  • Outline
Introduction

IT(AV)

1494A

VDRM

1200V~2000V

VRRM

1000V~1800V

tq

15~55µs

 Features

  • Interdigitated amplifying gates
  • Fast turn-on and high di/dt
  • Low switching losses

Typical Applications

  • Inductive heating
  • Electronic welders
  • Self-commutated inverters



SYMBOL



CHARACTERISTIC



TEST CONDITIONS



Tj(℃)

VALUE



UNIT

Min

Type

Max

IT(AV)

Mean on-state current

180°half sine wave 50Hz Double side cooled,

TC=55℃

125





1494

A

TC=70℃





1243

VDRM

Repetitive peak off-state voltage



tp=10ms



125

1200



2000



V

VRRM

Repetitive peak reverse voltage

1000



1800

IDRM IRRM

Repetitive peak current

at VDRM at VRRM

125





80

mA

ITSM

Surge on-state current

10ms half sine wave VR=0.6VRRM

125





17

kA

I2t

I2t for fusing coordination





1445

A2s* 103

VTO

Threshold voltage



125





1.57

V

rT

On-state slop resistance





0.21

VTM

Peak on-state voltage

ITM=3000A, F=24kN

15μs≤tq≤28μs

25





2.50

V

29μs≤tq≤55μs





2.10

V

dv/dt

Critical rate of rise of off-state voltage

VDM=0.67VDRM

125





1000

V/μs

di/dt

Critical rate of rise of on-state current

VDM= 67%VDRM     to 1600A,

Gate pulse tr ≤0.5μs   IGM= 1.5A

125





1500

A/μs

Qrr

Recovery charge

ITM= 1000A,tp=4000μs, di/dt=-20A/μs, VR= 100V

125



750



μC

tq

Circuit commutated turn-off time

ITM= 1000A,tp=4000μs, VR= 100V dv/dt=30V/μs ,di/dt=-20A/μs

125

15



55

μs

IGT

Gate trigger current



VA= 12V, IA= 1A



25

40



300

mA

VGT

Gate trigger voltage

0.9



3.0

V

IH

Holding current

20



500

mA

IL

Latching current





1000

mA

VGD

Non-trigger gate voltage

VDM=67%VDRM

125





0.3

V

Rth(j-c)

Thermal resistance Junction to case

At 1800 sine, double side cooled Clamping force 24kN







0.020



C /W

Rth(c-h)

Thermal resistance case to heat sink







0.005

Fm

Mounting force





19



26

kN

Tvj

Junction temperature





-40



125

Tstg

Stored temperature





-40



140

Wt

Weight







440



g

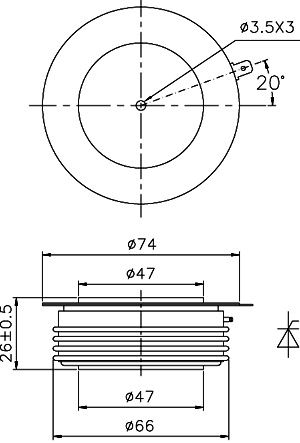

Outline

KT50cT



Outline
