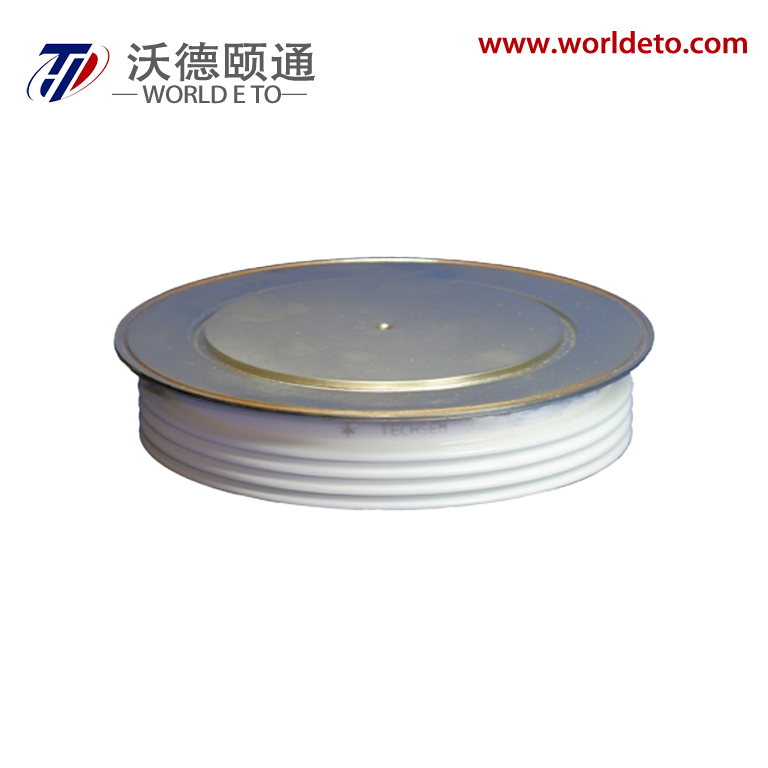

Part No. Y100ZPG-ZT100cT
Product Brochure:DOWNLOAD
IT(AV) |
5650A |
VRRM |
4500V 5000V |
Features
Typical Applications
|
SYMBOL |
CHARACTERISTIC |
TEST CONDITIONS |
Tj(℃) |
VALUE |
UNIT |
|||
Min |
Type |
Max |
||||||
|
IF(AV) |
Mean forward current |
180°half sine wave 50Hz Double side cooled, |
TC=85。C |
150 |
|
|
5650 |
A |
VRRM |
Repetitive peak reverse voltage |
tp=10ms |
150 |
4300 |
|
5000 |
V |
|
IRRM |
Repetitive peak current |
at VRRM |
150 |
|
|
300 |
mA |
|
IFSM |
Surge forward current |
10ms half sine wave VR=0.6VRRM |
150 |
|
|
60 |
kA |
|
I2t |
I2t for fusing coordination |
|
|
18000 |
A2s*103 |
|||
VFO |
Threshold voltage |
|
150 |
|
|
0.91 |
V |
|
rF |
Forward slope resistance |
|
|
0.10 |
mΩ |
|||
VFM |
Peak forward voltage |
IFM=5000A, F=108kN |
25 |
|
|
2.00 |
V |
|
Qrr |
Recovery charge |
IFM=2000A, tp=4000µs, di/dt=-20A/µs, VR=100V |
150 |
|
9000 |
|
µC |
|
Rth(j-c) |
Thermal resistance Junction to case |
At 180°sine, double side cooled Clamping force 108kN |
|
|
|
0.0050 |
℃/W |
|
Rth(c-h) |
Thermal resistance case to heat sink |
|
|
|
0.0015 |
|||
Fm |
Mounting force |
|
|
81 |
|
108 |
kN |
|
Tvj |
Junction temperature |
|
|
-40 |
|
150 |
℃ |
|
Tstg |
Stored temperature |
|
|
-40 |
|
160 |
℃ |
|
Wt |
Weight |
|
|
|
2000 |
|
g |
|
Outline |
ZT100cT |
|||||||
