Photo MOS Relay，photoelectric coupler，Special relay
Features |
Application |
|
●Contact Form 2a ●Load Voltage 400V ● Load Current 0.12A ●Low Off-State Leakage Current 1µA |
●Automatic Test Equipment ●Telephone Equipment ●Sensing Equipment ●Security Equipment ●I/O Modules ●Modem |

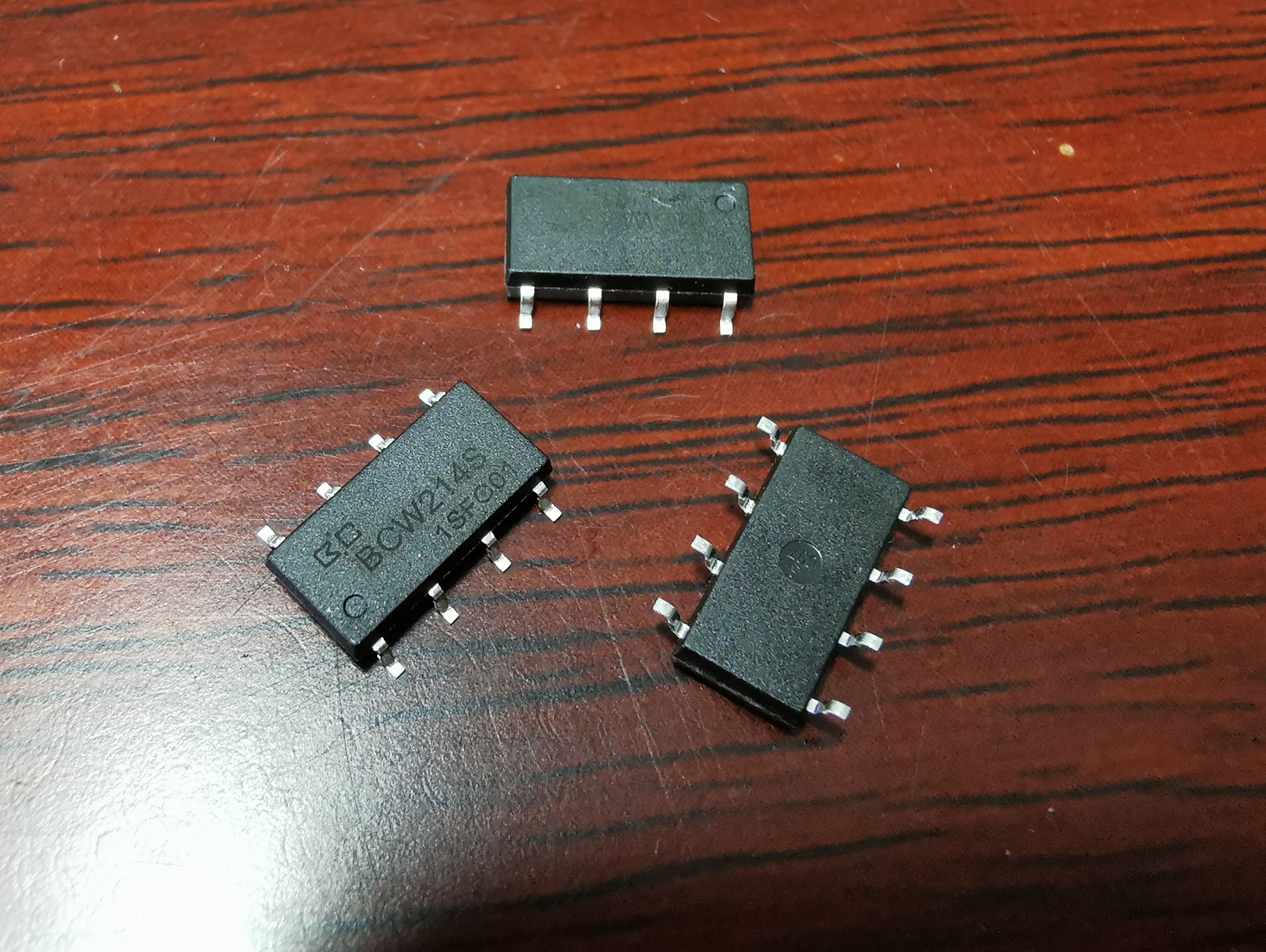

Type
Output rating |
Marking model |
|
Load voltage |
Load current |
|
400V |
0.12A |
BCW214S |
Dimensions
Terminal Identification
Wiring Diagram
Technical parameters （Ambient Temperature 25℃）
(1) I/O Absolute Maximum Ratings
Item |
Symbol |
BCW214S |
||
Operating Temperature |
TOPR |
-40℃～+85℃ |
||
Storage Temperature |
TSTG |
-40℃～+100℃ |
||
Input |
Continuous LED Current |
MAX. |
IF |
50mA |
Peak LED Current LED (f=100Hz,Duty=1%) |
MAX. |
IFP |
1000mA |
|
LED Reverse Voltage |
MAX. |
VR |
5V |
|
Input Power Dissipation |
MAX. |
PIN |
75mW |
|
Output |
Load Voltage |
MAX. |
VL |
400V(AC peak or DC) |
Load Current |
MAX. |
IL |
0.12A |
|
Peak Load Current (1ms,1shot) |
MAX. |
IPEAK |
0.6A |
|
Output Power Dissipation |
MAX. |
POUT |
300mW |
|
Total Power Dissipation |
MAX. |
PT |
350mW |
|
I/O Breakdown Voltage |
MAX. |
VI/O |
1500Vrms |
|
I/O Breakdown Voltage |
MAX. |
VI/O |
3750Vrms |
|
Electrical Specifications
Item |
Symbol |
BCW214S |
Conditions |
||
Input |
LED Forward Voltage
|
TYP. |
VF |
1.3V |
IF=10mA |
MAX. |
1.5V |
||||
Operation LED Current |
TYP. |
IF ON |
0.5mA |
|
|
MAX. |
1mA |
||||
Recovery LED Voltage |
MIN. |
VF OFF |
0.7V |
|
|
Output |
On-Resistance |
TYP. |
RON |
20Ω |
IF=5mA,IL=100mA, within 1 sec. |
MAX. |
28Ω |
||||
Off-State Leakage Current |
MAX. |
ILEAK |
1µA |
VL=Rating |
|
Output Capacitance |
TYP. |
COUT |
52pF |
VL=0V,f=1MHz |
|
Timeparameters |
Turn-On Time |
TYP. |
TON |
0.23ms |
IF=5mA,IL=100mA |
MAX. |
1ms |
||||
Turn-Off Time |
TYP. |
TOFF |
0.03ms |
||
MAX. |
0.2ms |
||||
I/O |
I/O Insulation Resistance |
MIN. |
RI/O |
1000MΩ |
DC500V |
I/O Capacitance |
TYP. |
CI/O |
1.3pF |
f=1MHz |
|
