Next-Generation Power Semiconductor Solutions
Our SiC MOSFET portfolio covers voltage ratings from 650V to 3300V, delivering outstanding efficiency, high power density, and superior reliability for demanding power conversion applications.
Key Features
Voltage Range: 650V – 3300V
Low RDS(on) and ultra-low switching losses
Fast switching speed for high-frequency operation
Maximum junction temperature up to 175°C
High power density and simplified thermal management
Enhanced system efficiency and reduced operating costs
Applications
EV Charging Systems
Solar Inverters & Energy Storage Systems (ESS)
Industrial Motor Drives
UPS & Data Center Power Supplies
Rail Transit & High-Power Converters
Smart Grid and Renewable Energy Systems
Why Choose SiC?
Compared with conventional silicon devices, SiC MOSFETs offer higher efficiency, smaller system size, lower cooling requirements, and improved reliability, enabling the development of more compact and energy-efficient power electronic systems.
Empowering the Future of High-Efficiency Power Conversion.

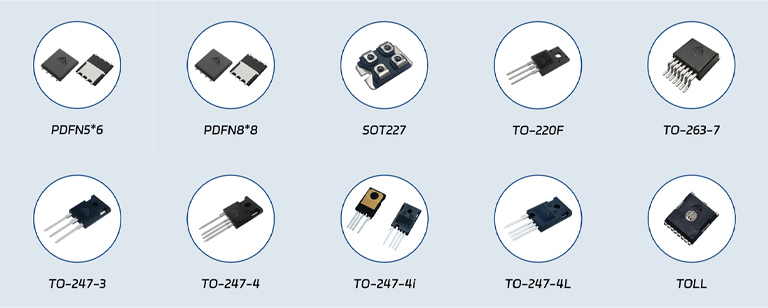

Voltage Range: 650V | 1200V | 1700V | 2000V | 3300V
| SiC MOSFET |
| 650V |
| Product SKU |
RDS(on) @25℃
|
ID
|
VGS
|
Package |
| SCE300N650MDSK |
4mΩ |
300A |
18V |
SOT227 |
| SCE100N650MT3 |
12mΩ |
100A |
18V |
TO-247-3 |
| SCE100N650MT4 |
12mΩ |
100A |
18V |
TO-247-4 |
| SCER12N650MD02 |
12mΩ |
100A |
18V |
TOLL |
| SCER35N650MD02 |
35mΩ |
60A |
18V |
TOLL |
| SCER35N650MD88 |
35mΩ |
60A |
18V |
PDFN8*8 |
| SCE60N650MT3 |
30mΩ |
60A |
18V |
TO-247-3 |
| SCE60N650MT4 |
30mΩ |
60A |
18V |
TO-247-4 |
| SCE60N650MDT7 |
30mΩ |
60A |
18V |
DT3PAK |
| SCE60N650MT7 |
30mΩ |
60A |
18V |
TO-263-7 |
| SCE30N650MF3 |
60mΩ |
30A |
18V |
TO-220F |
| SCE30N650MT3 |
60mΩ |
36A |
18V |
TO-247-3 |
| SCE30N650MT4 |
60mΩ |
36A |
18V |
TO-247-4 |
| SCE30N650MT7 |
60mΩ |
36A |
18V |
TO-263-7 |
| SCER60N650MD88 |
60mΩ |
36A |
18V |
PDFN8*8 |
| SCER90N650MD88PB |
72mΩ |
25A |
12V |
PDFN8*8 |
| SCE25N650MF3 |
88mΩ |
25A |
12V |
TO-220F |
| SCE20N650MF3C |
180mΩ |
20A |
12V/15V/18V |
TO-220F |
| SCER180N650D52C |
180mΩ |
20A |
12V/15V/18V |
TO-252-3 |
| SCE15N650MF3C |
260mΩ |
15A |
12V/15V/18V |
TO220F |
| SCER260N650D52C |
260mΩ |
15A |
12V/15V/18V |
TO-252-3 |
| SCER320N650MD56 |
320mΩ |
8A |
12V |
PDFN5*6 |
| SCER320N650MD56R |
320mΩ |
8A |
12V |
PDFN5*6 |
| SCER320N650MD88 |
320mΩ |
8A |
12V |
PDFN8*8 |
| SCE8N650MF3C |
360mΩ |
8A |
12V/15V/18V |
TO220F |
| SCER380N650D52C |
380mΩ |
8A |
12V/15V/18V |
TO-252-3 |
| 1200V |
| Product SKU |
RDS(on) @25℃
|
ID
|
VGS
|
Package |
| SCE200N1200MDSK |
7.5mΩ |
250A |
18V |
SOT227 |
| SCE200N1200MT4X |
7.5mΩ |
250A |
18V |
TO-247-4 |
| SCE200N1200MT4 |
8mΩ |
200A |
18V |
TO-247-4 |
| SCE150N1200MT4 |
10mΩ |
150A |
15V/18V |
TO-247-4 |
| SCE150N1200MT4G |
10mΩ |
150A |
15V/18V |
TO-247-4 |
| SCE100N1200MDS |
16mΩ |
100A |
18V |
SOT227 |
| SCE100N1200MDSK |
16mΩ |
100A |
18V |
SOT227 |
| SCE100N1200MT3 |
16mΩ |
100A |
18V |
TO-247-3 |
| SCE100N1200MT4 |
16mΩ |
115A |
18V |
TO-247-4 |
| SCE100N1200MT4X |
16mΩ |
115A |
15V/18V |
TO-247-4 |
| SCER16N1200MD02 |
16mΩ |
100A |
18V |
TOLL |
| SCE100N1200MT4PB |
20mΩ |
100A |
15V |
TO-247-4 |
| SCER20N1200MD02PB |
20mΩ |
100A |
15V |
TOLL |
| SCE75N1200MT4PB |
30mΩ |
75A |
15V/18V |
TO-247-4 |
| SCE75N1200MT4SPB |
30mΩ |
75A |
15V/18V |
TO-247-4 |
| SCE75N1200MT4SX |
30mΩ |
75A |
15V/18V |
TO-247-4 |
| SCE75N1200MT4X |
30mΩ |
75A |
15V/18V |
TO-247-4 |
| SCER30N1200MD03X |
30mΩ |
75A |
15V/18V |
TOLT |
| SCER30N1200MD04X |
30mΩ |
75A |
15V/18V |
QDPAK |
| SCE60N1200MT3 |
45mΩ |
60A |
18V |
TO-247-3 |
| SCE60N1200MT4 |
45mΩ |
60A |
18V |
TO-247-4 |
| SCE60N1200MT4i |
45mΩ |
60A |
18V |
TO-247-4 |
| SCE60N1200MT4S |
45mΩ |
60A |
18V |
TO-247-4 |
| SCE60N1200MT7 |
45mΩ |
60A |
18V |
TO-263-7 |
| SCER45N1200MD02 |
45mΩ |
60A |
18V |
TOLL |
| SCER45N1200MD03 |
45mΩ |
60A |
18V |
TOLT |
| SCER50N1200MD88 |
50mΩ |
60A |
18V |
PDFN8*8 |
| SCE30N1200MT3 |
80mΩ |
32A |
18V |
TO-247-3 |
| SCE30N1200MT4 |
80mΩ |
32A |
18V |
TO-247-4 |
| SCE30N1200MT7 |
80mΩ |
32A |
18V |
TO-263-7 |
| SCER80N1200MD02 |
80mΩ |
30A |
18V |
TOLL |
| SCER80N1200MD88 |
80mΩ |
30A |
18V |
PDFN8*8 |
| SCE20N1200MT3PB |
160mΩ |
20A |
15V |
TO-247-3 |
| SCE20N1200MT4PB |
160mΩ |
20A |
15V |
TO-247-4 |
| SCE20N1200MT7PB |
160mΩ |
20A |
15V |
TO-263-7 |
| SCER160N1200MD02PB |
160mΩ
|
20A |
15V |
TOLL |
| SCER160N1200MD88PB |
160mΩ |
20A |
15V |
PDFN8*8 |
| 1500V |
| Product SKU |
RDS(on) @25℃
|
ID
|
VGS
|
Package |
| SCE30N1500MT4 |
60mΩ |
30A |
18V |
TO-247-4L |
| SCE30N1500MT4LQ |
60mΩ |
30A |
18V |
TO-247-4L |
| 1700V |
|
|
|
|
| Product SKU |
RDS(on) @25℃
|
ID
|
VGS
|
Package |
| SCE120N1700MT4L |
14mΩ |
120A |
15V/18V |
TO-247-4L |
| SCE120N1700MT4LG |
14mΩ |
120A |
15V/18V |
TO-247-4L |
| SCE100N1700MT3 |
25mΩ |
100A |
18V |
TO-247-3 |
| SCE100N1700MT4L |
26mΩ |
100A |
18V |
TO-247-4L |
| SCE100N1700MT4i |
25mΩ |
100A |
18V |
TO-247-4 |
| SCE40N1700MT3 |
72mΩ |
40A |
18V |
TO-247-3 |
| SCE40N1700MT4L |
72mΩ |
40A |
18V |
TO-247-4L
|
| SCE5N1700MT3PB |
750mΩ |
5A |
12V |
TO-247-3 |
| SCE5N1700MT7PB |
750mΩ |
5A |
12V |
TO-263-7 |
| SCE1N1700MF3PB |
10000mΩ |
1A |
12V |
TO-220F |
| 2000V |
| Product SKU |
RDS(on) @25℃
|
ID
|
VGS
|
Package |
| SCE30N2000MT4PB |
88mΩ |
30A |
15V |
TO-247-4 |
| 3300V |
| Product SKU |
RDS(on) @25℃
|
ID
|
VGS
|
Package |
| SCE80N3300MT4 |
40mΩ |
80A |
18V |
TO-247-4 |
| SCE20N3300MT4 |
160mΩ |
20A |
18V |
TO-247-4 |
