Brief introduction
Thyristor/Diode module, MTx400 MFx600 MT400,400A,Water cooling,produced by TECHSEM .
|
|
|
VRRM,VDRM | Type & Outline | |
2000V 2200V 2500V 2500V | MTx400-20-405F3 MTx400-22-405F3 MTx400-25-405F3 MT400-25-405F3G | MFx400-20-405F3 MFx400-22-405F3 MFx400-25-405F3 |
MTx stands for any type of MTC, MTA, MTK
|
Features
Typical Applications
SYMBOL |
CHARACTERISTIC |
TEST CONDITIONS | Tj(℃) | VALUE |
UNIT | ||
Min | Type | Max | |||||
IT(AV) | Mean on-state current | 180°half sine wave 50Hz Single side cooled, TC=55。C |
125 |
|
| 400 | A |
IT(RMS) | RMS on-state current |
|
| 628 | A | ||
IDRM IRRM | Repetitive peak current | at VDRM at VRRM | 125 |
|
| 45 | mA |
ITSM | Surge on-state current | VR=60%VRRM,t= 10ms half sine, | 125 |
|
| 11 | kA |
I2t | I2t for fusing coordination | 125 |
|
| 605 | 103A2s | |
VTO | Threshold voltage |
|
125 |
|
| 0.82 | V |
rT | On-state slope resistance |
|
| 0.79 | mΩ | ||
VTM | Peak on-state voltage | ITM= 1200A | 25 |
|
| 2.18 | V |
dv/dt | Critical rate of rise of off-state voltage | VDM=67%VDRM | 125 |
|
| 1000 | V/μs |
di/dt | Critical rate of rise of on-state current | Gate source 1.5A tr ≤0.5μs Repetitive | 125 |
|
| 200 | A/μs |
IGT | Gate trigger current |
VA= 12V, IA= 1A |
25 | 30 |
| 200 | mA |
VGT | Gate trigger voltage | 0.8 |
| 3.0 | V | ||
IH | Holding current | 10 |
| 200 | mA | ||
IL | Latching current |
|
| 1000 | mA | ||
VGD | Non-trigger gate voltage | VDM=67%VDRM | 125 |
|
| 0.20 | V |
Rth(j-c) | Thermal resistance Junction to case | Single side cooled per chip |
|
|
| 0.11 | ℃/W |
Rth(c-h) | Thermal resistance case to heatsink | Single side cooled per chip |
|
|
| 0.04 | ℃/W |
Viso | Isolation voltage | 50Hz,R.M.S,t= 1min,Iiso:1mA(MAX) |
| 3000 |
|
| V |
Fm | Terminal connection torque(M12) |
|
| 12 |
| 14 | N·m |
Mounting torque(M6) |
|
| 4.5 |
| 6 | N·m | |
Tvj | Junction temperature |
|
| -40 |
| 125 | ℃ |
Tstg | Stored temperature |
|
| -40 |
| 125 | ℃ |
Wt | Weight |
|
|
| 1060 |
| g |

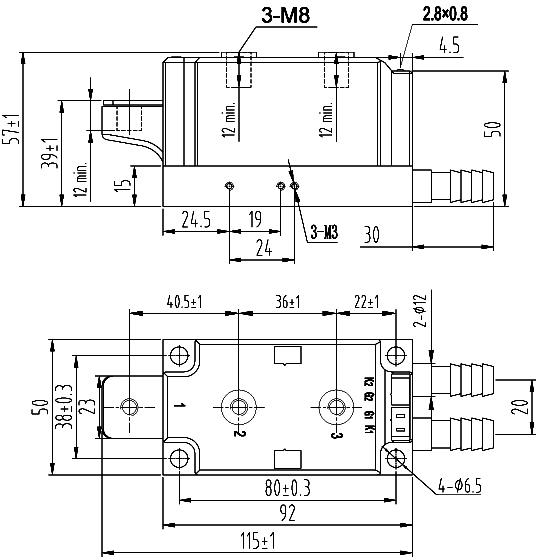

Outline | 405F3 |
