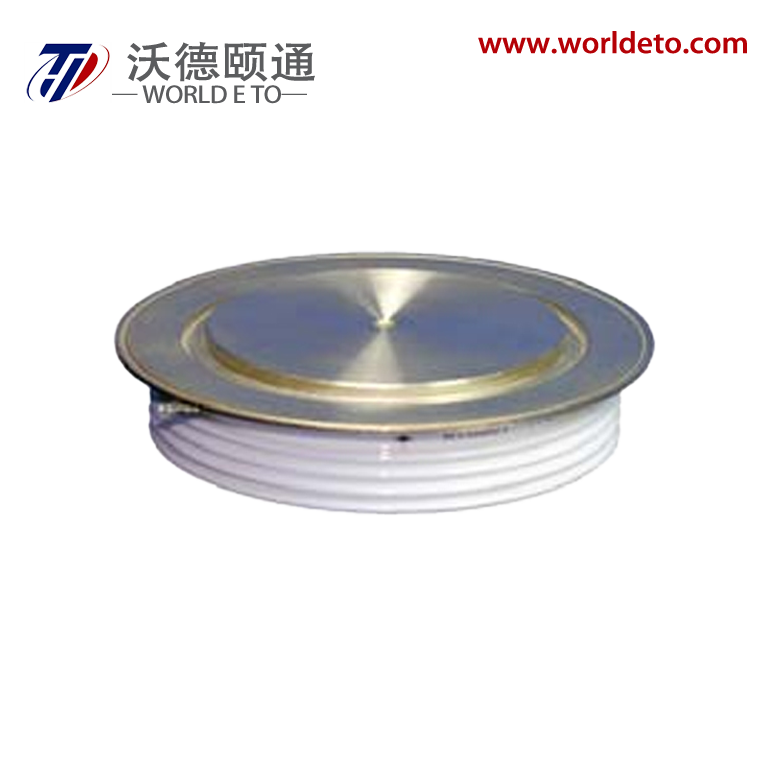

IT(AV) | 4240A |
VDRM | 1200V~2000V |
VRRM | 1000V~1800V |
tq | 15~80µs |
Features
Typical Applications
SYMBOL |
CHARACTERISTIC |
TEST CONDITIONS | Tj(℃) | VALUE |
UNIT | ||||
Min | Type | Max | |||||||
IT(AV) | Mean on-state current | 180°half sine wave 50Hz Double side cooled, | TC=55°C | 125 |
|
| 4240 | A | |
VDRM | Repetitive peak off-state voltage |
tp=10ms |
125 | 1200 |
| 2000 | V | ||
VRRM | Repetitive peak reverse voltage | 1000 |
| 1800 | V | ||||
IDRM IRRM | Repetitive peak current | at VDRM at VRRM | 125 |
|
| 250 | mA | ||
ITSM | Surge on-state current | 10ms half sine wave VR=0.6VRRM | 125 |
|
| 46 | kA | ||
I2t | I2t for fusing coordination |
|
| 10580 | A2s*103 | ||||
VTO | Threshold voltage |
| 125 |
|
| 1.14 | V | ||
rT | On-state slope resistance |
|
| 0.10 | mΩ | ||||
VTM |
Peak on-state voltage |
ITM=5000A, F=70kN | 15μs≤tq≤35µs |
25 |
|
| 2.50 | V | |
36μs≤tq≤60µs |
|
| 1.80 | V | |||||
61μs≤tq≤80µs |
|
| 1.60 | V | |||||
dv/dt | Critical rate of rise of off-state voltage | VDM=0.67VDRM | 125 |
|
| 1000 | V/μs | ||
di/dt | Critical rate of rise of on-state current (Non-repetitive) | VDM= 67%VDRM ,to4000A Gate pulse tr ≤0.5μs IGM=1.5A | 125 |
|
| 1200 | A/μs | ||
Qrr | Recovery charge | ITM=2000A, tp=4000µs, di/dt=-20A/µs, VR=100V | 125 |
| 2100 |
| µC | ||
tq | Circuit commutated turn-off time | ITM=2000A, tp=4000µs, VR=100V dv/dt=30V/µs,di/dt=-20A/µs | 125 | 25 |
| 80 | µs | ||
IGT | Gate trigger current |
VA=12V, IA=1A |
25 | 40 |
| 450 | mA | ||
VGT | Gate trigger voltage | 0.9 |
| 4.5 | V | ||||
IH | Holding current | 20 |
| 1000 | mA | ||||
IL | Latching current |
|
| 1000 | mA | ||||
VGD | Non-trigger gate voltage | VDM=67%VDRM | 125 |
|
| 0.3 | V | ||
Rth(j-c) | Thermal resistance Junction to case | At 1800 sine, double side cooled Clamping force 70 kN |
|
|
| 0.007 |
℃ /W | ||
Rth(c-h) | Thermal resistance case to heat sink |
|
|
| 0.002 | ||||
Fm | Mounting force |
|
| 63 |
| 84 | kN | ||
Tvj | Junction temperature |
|
| -40 |
| 125 | ℃ | ||
Tstg | Stored temperature |
|
| -40 |
| 140 | ℃ | ||
Wt | Weight |
|
|
| 1390 |
| g | ||

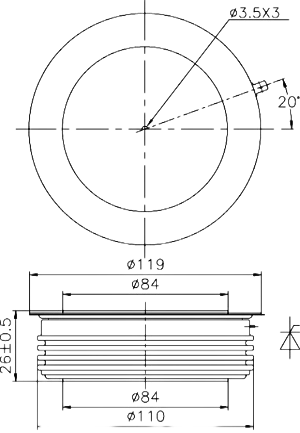

Outline | KT84cT |
