Brief introduction
Thyristor/Diode module, MTx400 MFx400 MT400,400A,Water cooling,produced by TECHSEM .
VRRM,VDRM |
Type & Outline |
|
600V |
MTx400-06-405F3 |
MFx400-06-405F3 |
800V |
MTx400-08-405F3 |
MFx400-08-405F3 |
1000V |
MTx400-10-405F3 |
MFx400-10-405F3 |
1200V |
MTx400-12-405F3 |
MFx400-12-405F3 |
1400V |
MTx400-14-405F3 |
MFx400-14-405F3 |
1600V |
MTx400-16-405F3 |
MFx400-16-405F3 |
1800V |
MTx400-18-405F3 |
MFx400-18-405F3 |
1800V |
MT400-18-405F3G |
|
MTx stands for any type of MTC,MTA,MTK
MFx stands for any type of MFC,MFA,MFK
Features
Typical Applications
SYMBOL |
CHARACTERISTIC |
TEST CONDITIONS |
Tj(℃) |
VALUE |
UNIT |
||
Min |
Type |
Max |
|||||
IT(AV) |
Mean on-state current |
180。half sine wave 50Hz Single side cooled, THS=55℃ |
125 |
|
|
400 |
A |
IT(RMS) |
RMS on-state current |
|
|
628 |
A |
||
IDRM IRRM |
Repetitive peak current |
at VDRM at VRRM |
125 |
|
|
35 |
mA |
ITSM |
Surge on-state current |
VR=60%VRRM, t=10ms half sine |
125 |
|
|
12.5 |
kA |
I2t |
I2t for fusing coordination |
125 |
|
|
781 |
103A2s |
|
VTO |
Threshold voltage |
|
125 |
|
|
0.80 |
V |
rT |
On-state slope resistance |
|
|
0.80 |
mΩ |
||
VTM |
Peak on-state voltage |
ITM=1200A |
25 |
|
|
1.90 |
V |
dv/dt |
Critical rate of rise of off-state voltage |
VDM=67%VDRM |
125 |
|
|
1000 |
V/μs |
di/dt |
Critical rate of rise of on-state current |
Gate source 1.5A tr ≤0.5μs Repetitive |
125 |
|
|
200 |
A/μs |
IGT |
Gate trigger current |
VA=12V, IA=1A |
25 |
30 |
|
200 |
mA |
VGT |
Gate trigger voltage |
0.8 |
|
3.0 |
V |
||
IH |
Holding current |
10 |
|
200 |
mA |
||
IL |
Latching current |
|
|
1000 |
mA |
||
VGD |
Non-trigger gate voltage |
VDM=67%VDRM |
125 |
|
|
0.20 |
V |
Rth(j-c) |
Thermal resistance Junction to case |
Single side cooled per chip |
|
|
|
0.11 |
℃/W |
Rth(c-h) |
Thermal resistance case to heatsink |
Single side cooled per chip |
|
|
|
0.04 |
℃/W |
Viso |
Isolation voltage |
50Hz,R.M.S,t=1min,Iiso:1mA(MAX) |
|
3000 |
|
|
V |
Fm |
Terminal connection torque(M12) |
|
|
12 |
|
14 |
N·m |
Mounting torque(M6) |
|
|
4.5 |
|
6 |
N·m |
|
Tvj |
Junction temperature |
|
|
-40 |
|
125 |
℃ |
Tstg |
Stored temperature |
|
|
-40 |
|
125 |
℃ |
Wt |
Weight |
|
|
|
1060 |
|
g |

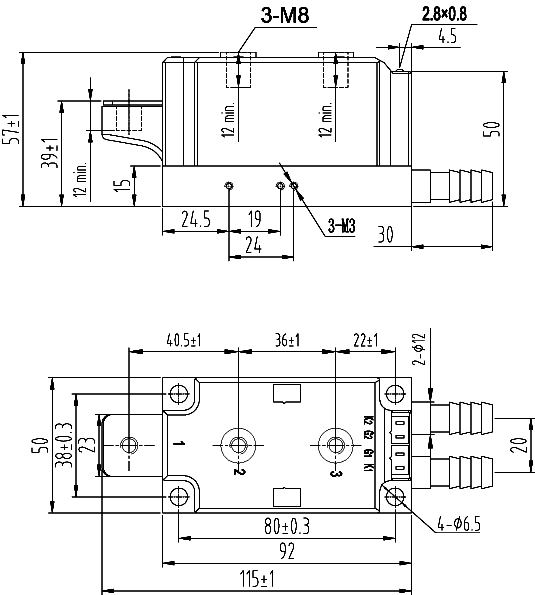

Outline |
405F3 |
