Brief introduction
Thyristor/Diode Module, MTx1000 MFx1000 MT1000，1000A,Water cooling，produced by TECHSEM .

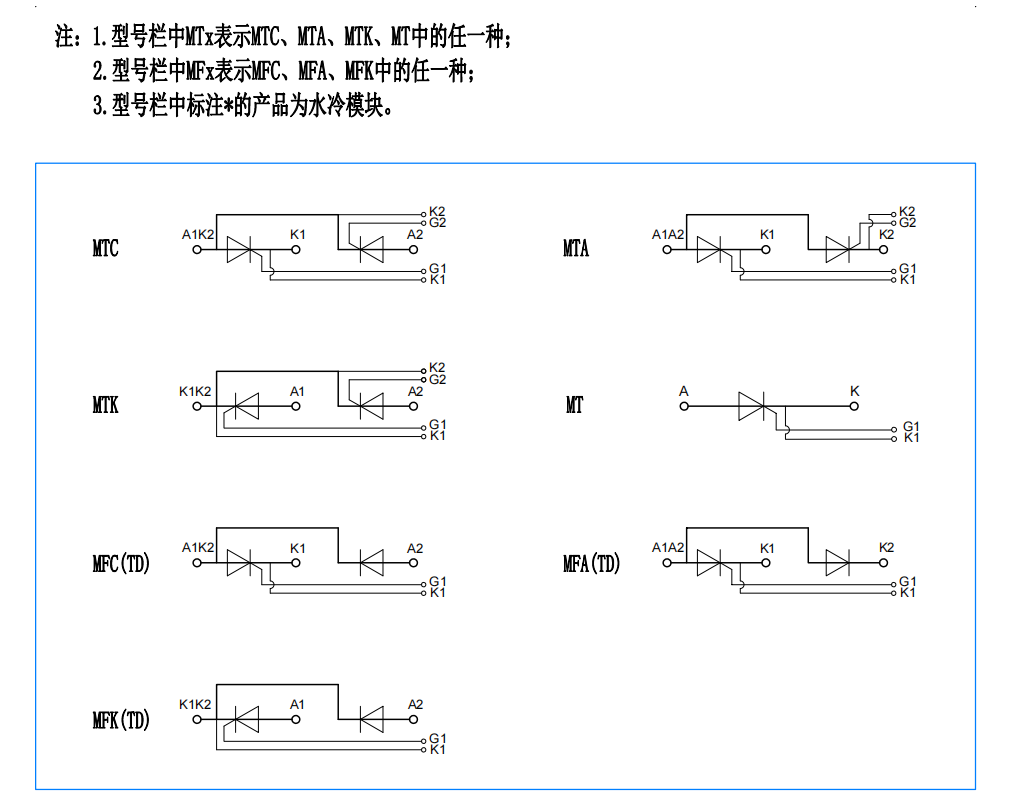

VRRM,VDRM |
Type & Outline |
2000V |
MTx1000-20-411F3 |
MFx1000-20-411F3 |
2200V |
MTx1000-22-411F3 |
MFx1000-22-411F3 |
2500V |
MTx1000-25-411F3 |
MFx1000-25-411F3 |
2500V |
MT1000-25-411F3G |
|
Features
- Isolated mounting base 3000V~
- Pressure contact technology with
- Increased power cycling capability
- Space and weight saving
Typical Applications
- AC/DC Motor drives
- Various rectifiers
- DC supply for PWM inverte
|
SYMBOL
|
CHARACTERISTIC
|
TEST CONDITIONS
|
Tj(℃) |
VALUE |
UNIT
|
Min |
Type |
Max |
IT(AV) |
Mean on-state current |
180。half sine wave 50Hz
Single side cooled, THS=55℃
|
125
|
|
|
1000 |
A |
IT(RMS) |
RMS on-state current |
|
|
1570 |
A |
IDRM IRRM |
Repetitive peak current |
at VDRM at VRRM |
125 |
|
|
50 |
mA |
ITSM |
Surge on-state current |
VR=60%VRRM, t=10ms half sine |
125 |
|
|
18.0 |
kA |
I2t |
I2t for fusing coordination |
125 |
|
|
1620 |
103A2s |
VTO |
Threshold voltage |
|
125
|
|
|
0.85 |
V |
rT |
On-state slope resistance |
|
|
0.24 |
mΩ |
VTM |
Peak on-state voltage |
ITM=3000A |
25 |
|
|
2.20 |
V |
dv/dt |
Critical rate of rise of off-state voltage |
VDM=67%VDRM |
125 |
|
|
1000 |
V/μs |
di/dt |
Critical rate of rise of on-state current |
Gate source 1.5A
tr ≤0.5μs Repetitive
|
125 |
|
|
200 |
A/μs |
IGT |
Gate trigger current |
VA= 12V, IA= 1A
|
25
|
30 |
|
200 |
mA |
VGT |
Gate trigger voltage |
0.8 |
|
3.0 |
V |
IH |
Holding current |
10 |
|
200 |
mA |
IL |
Latching current |
|
|
1000 |
mA |
VGD |
Non-trigger gate voltage |
VDM=67%VDRM |
125 |
|
|
0.20 |
V |
Rth(j-c) |
Thermal resistance Junction to case |
Single side cooled per chip |
|
|
|
0.048 |
。C/W |
Rth(c-h) |
Thermal resistance case to heatsink |
Single side cooled per chip |
|
|
|
0.024 |
。C/W |
Viso |
Isolation voltage |
50Hz,R.M.S,t= 1min,Iiso:1mA(MAX) |
|
3000 |
|
|
V |
|
Fm
|
Terminal connection torque(M12) |
|
|
12 |
|
16 |
N·m |
Mounting torque(M8) |
|
|
10 |
|
12 |
N·m |
Tvj |
Junction temperature |
|
|
-40 |
|
125 |
℃ |
Tstg |
Stored temperature |
|
|
-40 |
|
125 |
℃ |
Wt |
Weight |
|
|
|
3230 |
|
g |

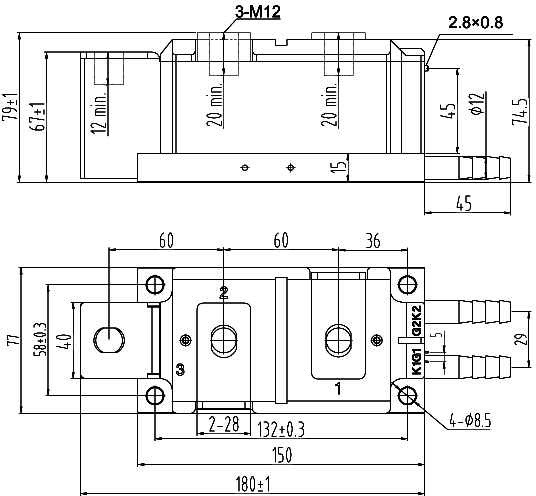

Outline |
411F3 |
