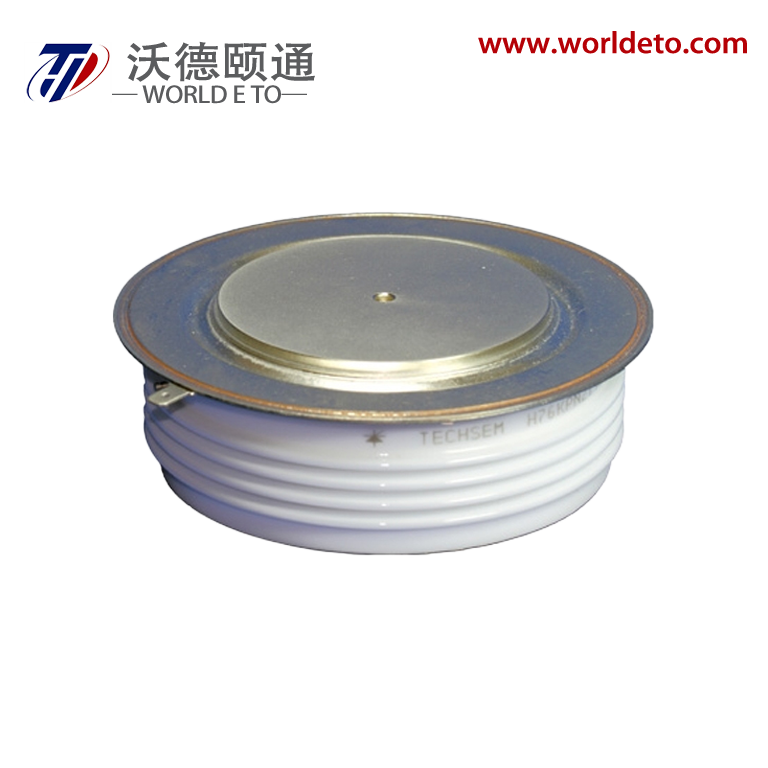

Part No. H89KPU-KT78dT
Product Brochure:DOWNLOAD
IT(AV) |
1500A |
VDRM,VRRM |
8000V 8500V |
Features：
Typical Applications：
|
SYMBOL |
CHARACTERISTIC |
TEST CONDITIONS |
Tj(℃) |
VALUE |
UNIT |
|||
Min |
Type |
Max |
||||||
|
IT(AV) |
Mean on-state current |
180。half sine wave 50Hz Double side cooled |
TC=70℃ |
115 |
|
|
1500 |
A |
IDRM IRRM |
Repetitive peak current |
at VDRM tp= 10ms at VRRM tp= 10ms |
115 |
|
|
600 |
mA |
|
ITSM |
Surge on-state current |
10ms half sine wave VR=0.6VRRM |
115 |
|
|
17 |
kA |
|
I2t |
I2t for fusing coordination |
|
|
1445 |
103A2s |
|||
VTO |
Threshold voltage |
|
115 |
|
|
1.35 |
V |
|
rT |
On-state slope resistance |
|
|
0.53 |
mΩ |
|||
VTM |
Peak on-state voltage |
ITM= 1500A, F=70kN |
25 |
|
|
2.00 |
V |
|
dv/dt |
Critical rate of rise of off-state voltage |
VDM=0.67VDRM |
115 |
|
|
2000 |
V/μs |
|
di/dt |
Critical rate of rise of on-state current |
VDM=67%VDRM, Gate pulse tr ≤0.5μs IGM= 1.5A |
115 |
|
|
200 |
A/μs |
|
Qrr |
Recovery charge |
ITM=2000A, tp=4000μs, di/dt=-5A/μs, VR=50V |
115 |
|
5000 |
|
μC |
|
IGT |
Gate trigger current |
VA= 12V, IA= 1A |
25 |
40 |
|
300 |
mA |
|
VGT |
Gate trigger voltage |
0.8 |
|
3.0 |
V |
|||
IH |
Holding current |
25 |
|
200 |
mA |
|||
VGD |
Non-trigger gate voltage |
VDM=67%VDRM |
115 |
|
|
0.3 |
V |
|
Rth(j-c) |
Thermal resistance Junction to case |
Double side cooled Clamping force 70kN |
|
|
|
0.009 |
。C /W |
|
Rth(c-h) |
Thermal resistance case to heatsink |
|
|
|
0.002 |
|||
Fm |
Mounting force |
|
|
63 |
70 |
84 |
kN |
|
Tvj |
Junction temperature |
|
|
-40 |
|
115 |
℃ |
|
Tstg |
Stored temperature |
|
|
-40 |
|
140 |
℃ |
|
Wt |
Weight |
|
|
|
1920 |
|
g |
|
Outline |
KT78dT |
|||||||
