Overview
The CM6511 series are micropower, low-noise, low-dropout negative voltage regulators capable of delivering a 200 mA output current with a typical dropout voltage of 200 mV. They feature a typical quiescent current of 45 μA during operation and 2.6 μA in shutdown mode, making them ideal for battery-powered applications.
These devices provide low output noise performance. With an external 0.01 μF bypass capacitor, output noise can be reduced to 20 μVrms over the 10 Hz to 100 kHz bandwidth. The CM6511 series operates stably with small ceramic capacitors and remains stable with an output capacitance as low as 4.7 μF.
Internal protection circuitry includes current limiting and thermal shutdown.

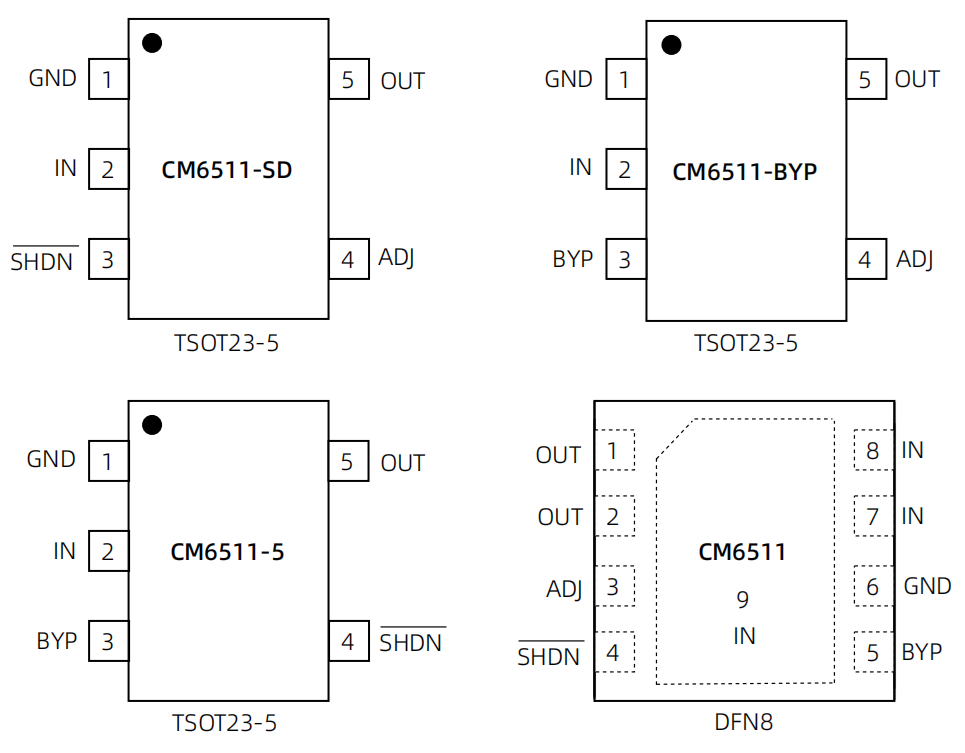

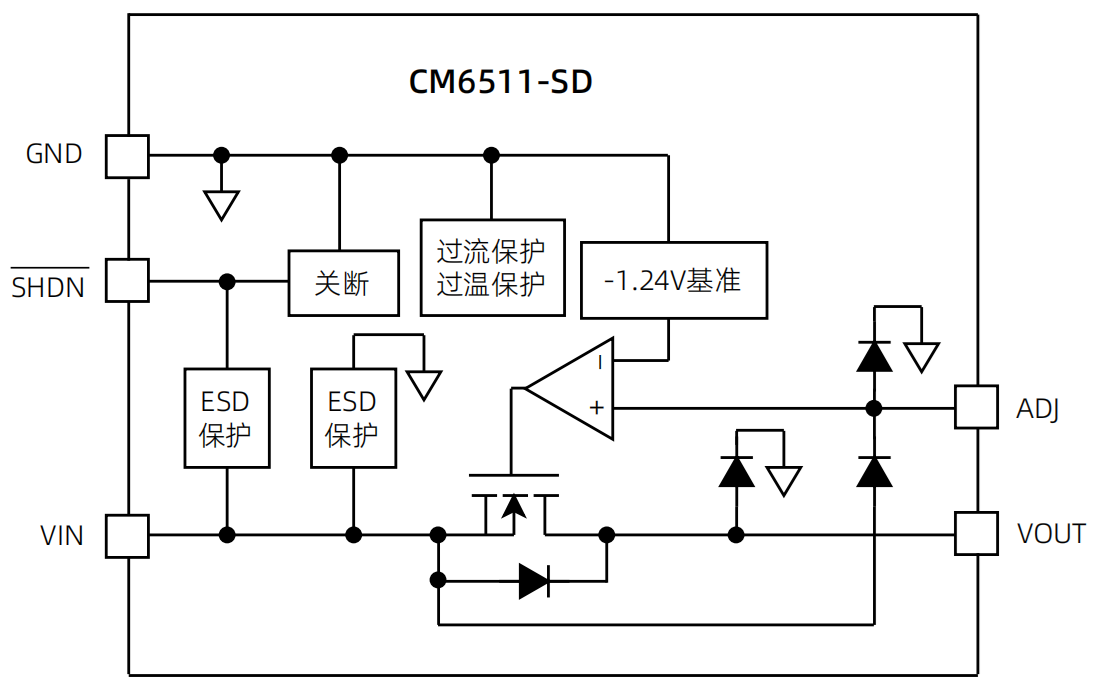

The series comprises four product variants: the CM6511-5 offers a fixed –5 V output, while the CM6511-SD, CM6511-BYP, and CM6511 support programmable output voltages based on a –1.24 V reference.

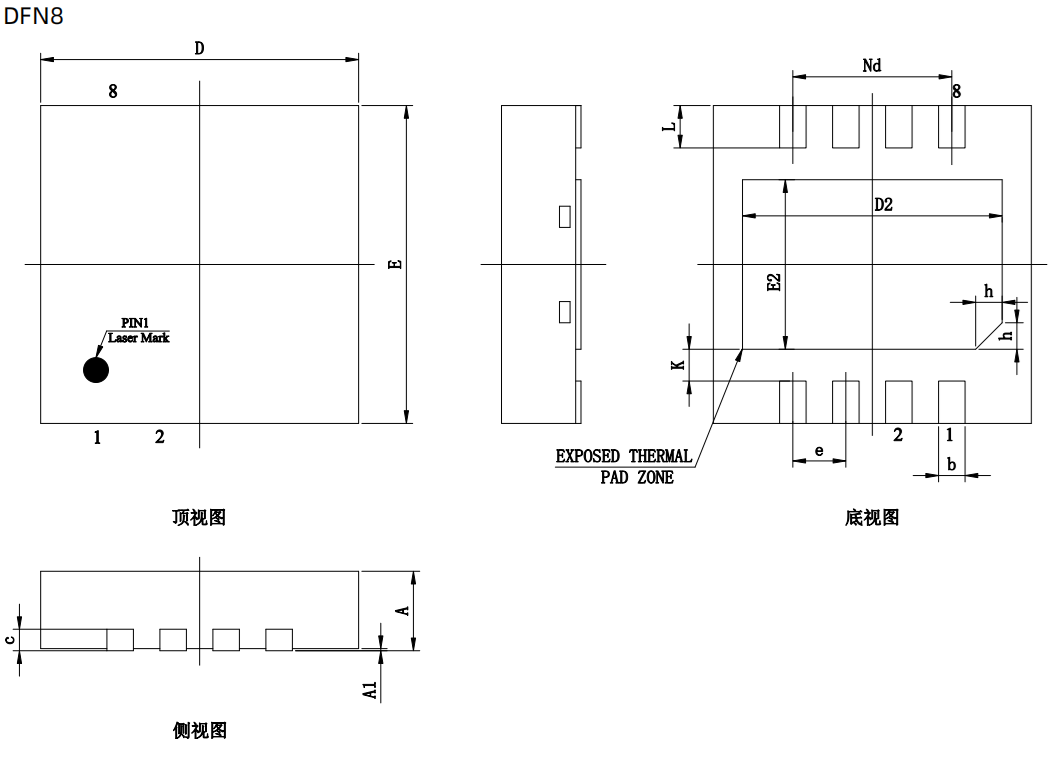

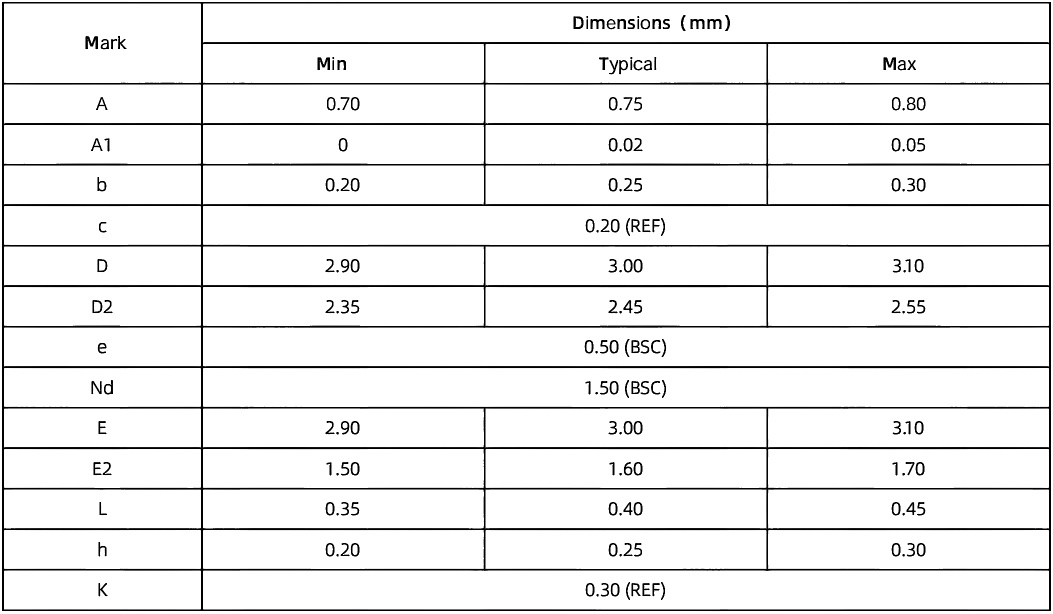

The CM6511-5, CM6511-SD, and CM6511-BYP are supplied in a TSOT23-5 package, while the CM6511 is available in a DFN-8 package. All versions are specified for the –40°C to +125°C operating temperature range.
Features
- Low output noise: 20 μVrms (10 Hz to 100 kHz)
- Low quiescent current: 45 μA
- Low dropout voltage: 200 mV
- Output current: 200 mA
- Fixed output voltage: –5 V
- Wide input voltage range: –4 V to –28 V
- Adjustable output range: –1.24 V to –28 V + VDO
- Shutdown quiescent current: 2.6 μA
- Positive or negative shutdown logic
- Current limit and thermal protection
- Package options: TSOT23-5 (2.9 mm × 1.6 mm) and DFN-8 (3 mm × 3 mm)
Applications
- Battery-powered instruments
- Low-noise regulation for noise-sensitive equipment
- Negative rail supplement for positive voltage regulators

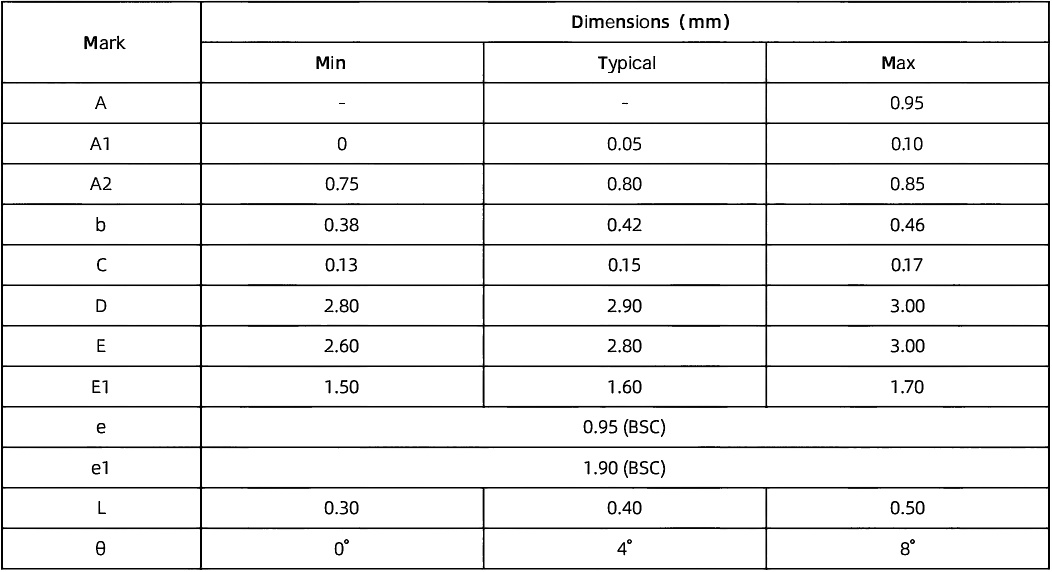

TSOT23-5
Product list
High-Precision LDO
| P/N |
Type |
Package |
MPQ(Pcs) |
Benchmarks against |
| CM6111-MSOTA |
LDO |
Reel |
4000 |
LT3042 |
| CM6111-DFNTA |
LDO |
Reel |
5000 |
LT3042 |
| CM6121-DFNTA |
LDO |
Reel |
5000 |
LT3045 |
| CM6121-DFNMTA |
LDO |
Reel |
5000 |
LT3045 |
| CM6122-DFNTA |
LDO |
Reel |
5000 |
LT3045-1 |
| CM6122-DFNMTA |
LDO |
Reel |
5000 |
LT3045-1 |
| CM6112-DFN4TA |
LDO |
Reel |
10000 |
ADP71421 / SGM2211 |
| CM6112-DFN6TA |
LDO |
Reel |
10000 |
ADP71421 / SGM2211 |
| CM6140-SOPTA |
LDO |
Reel |
3000 |
LT1963 |
| CM6140-SOTTA |
LDO |
Reel |
2000 |
LT1963 |
| CM6140-TSSTA |
LDO |
Reel |
4000 |
LT1963 |
| CM6140-TO2TA |
LDO |
Reel |
1500 |
LT1963 |
| CM6141-SOPTA |
LDO |
Reel |
3000 |
LT1963 |
| CM6141-SOTTA |
LDO |
Reel |
2000 |
LT1963 |
| CM6141-TSSTA |
LDO |
Reel |
4000 |
LT1963 |
| CM6141-TO2TA |
LDO |
Reel |
1500 |
LT1963 |
| CM6142-SOPTA |
LDO |
Reel |
3000 |
LT1963 |
| CM6142-SOTTA |
LDO |
Reel |
2000 |
LT1963 |
| CM6142-TSSTA |
LDO |
Reel |
4000 |
LT1963 |
| CM6142-TO2TA |
LDO |
Reel |
1500 |
LT1963 |
| CM6143-SOPTA |
LDO |
Reel |
3000 |
LT1963 |
| CM6143-SOTTA |
LDO |
Reel |
2000 |
LT1963 |
| CM6143-TSSTA |
LDO |
Reel |
4000 |
LT1963 |
| CM6143-TO2TA |
LDO |
Reel |
1500 |
LT1963 |
| CM6149-SOPTA |
LDO |
Reel |
4000 |
LT1963 |
| CM6149-TSSTA |
LDO |
Reel |
4000 |
LT1963 |
| CM6149-TO2TA |
LDO |
Reel |
1500 |
LT1963 |
| CM6511-SD-TSOTA |
LDO |
Reel |
2500 |
LT1964 |
| CM6511-BYP-TSOTA |
LDO |
Reel |
2500 |
LT1964 |
| CM6511-5-TSOTA |
LDO |
Reel |
2500 |
LT1964 |
| CM6511-DFNTA |
LDO |
Reel |
5000 |
LT1964 |
FAQ
Q: I am an electrical equipment manufacturer, how can I choose your products?
A: Choosing the right product is crucial for all users. You need to correctly tell me your application field and the key parameters of the product you need. I will recommend suitable products based on your requirements and send you the product data sheet for you to confirm the parameters.
Q: I am a brand owner, can you OEM for me?
A: Yes. You can choose the model you need OEM from our full range of products. For products outside of our catalog, our engineers will design according to your technical requirements.
Q:How do you ensure the quality of your products?
A: Our manufacturing factory has a complete quality management system and a top-tier quality inspection laboratory. We conduct quality inspections on semi-finished products at key points during the production process, and perform a final random inspection before shipment. Inspection reports and quality certificates are also issued.
Q:How do you guarantee that the products you supply are original and authentic?
A: Each batch of goods we export is accompanied by a certificate of origin issued by Chinese customs.
Q:Can you provide a certificate of origin that has already been issued?

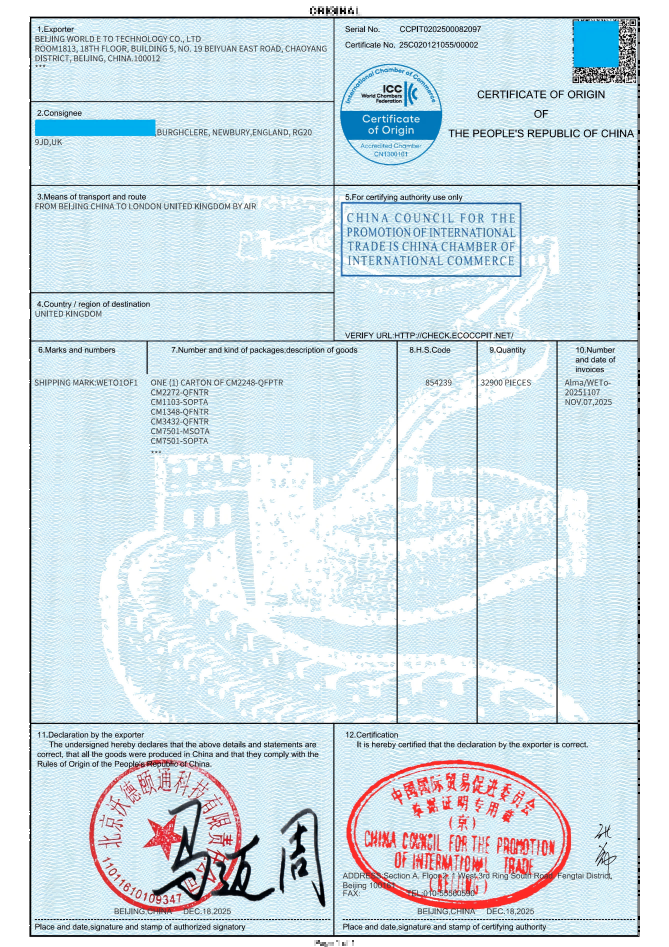

A: Of course there's no problem. Here is one of our certificates of origin. However, in order to protect the information of our buyers, we need to make necessary concealment of their information.
