Technical advantages of super junction MOSFET
The superjunction MOSFET introduces lateral electric field control through alternating P-type column structures, building upon the traditional VDMOS design, which makes the vertical electric field distribution approach an ideal rectangular shape.
Under the same epitaxial resistance conditions, this structure increases the device's voltage withstand capability by approximately 20%. For products with the same voltage rating, the superjunction technology can reduce the unit area on-resistance to less than 1/8 of that in traditional structures, achieving a synergistic optimization of conduction loss and blocking characteristics.
Our company's super junction MOSFET series products are manufactured using deep trench and multiple epitaxial technologies, featuring extremely low on-resistance and gate charge, significantly reducing conduction and switching losses. They are particularly suitable for high power density and high-efficiency power electronic conversion systems.
Why choose our MOSFET serie products?
Low conduction loss
Low switching loss
High power density
Complete product lineup
Applications
- Car charger (OBC)
- server power supply
- communication power supply
- Car mounted DC/DC
- charging pile
- charger
- adapter
- TV power
- new energy
- LED
- PC

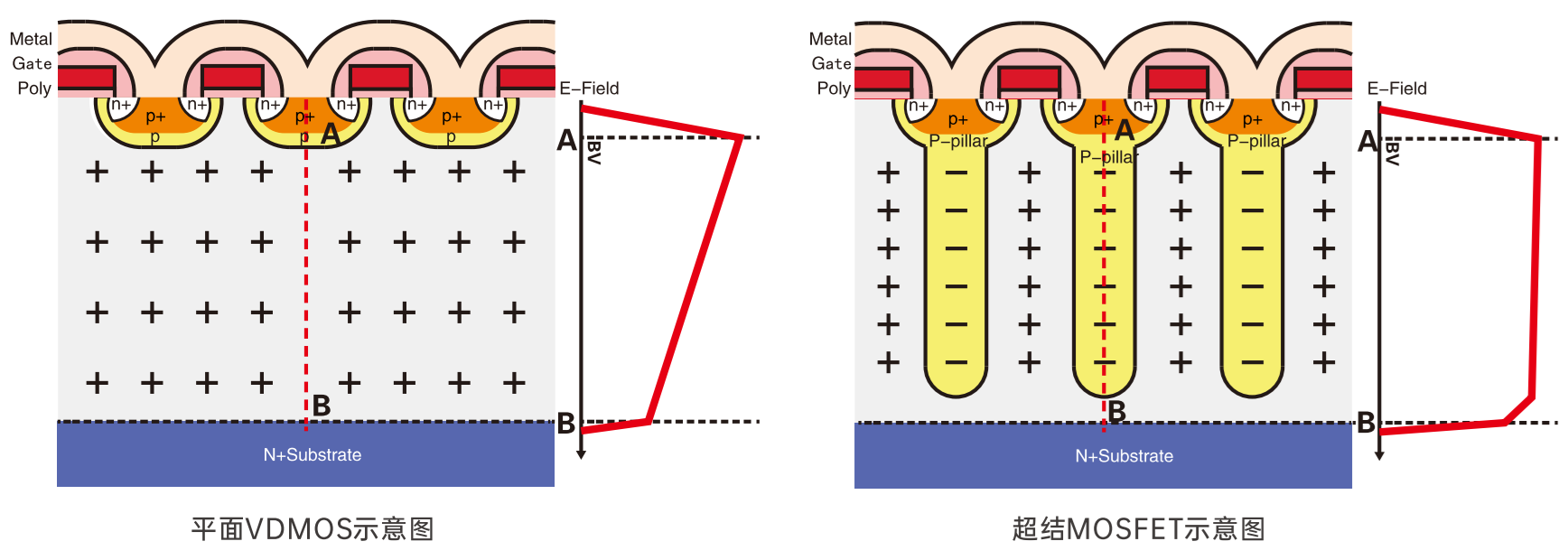

Schematic diagram of super junction MOSFET (multiple epitaxy)
Comparison between Planar MOSFET and Super junction MOSFET
About Us
We focus on the application of IGBT products. Based on the application of IGBT, we have expanded our product spectrum tohigh-end Power Assemblies customization, at the same time ,Our business has expanded into the field of automation control products, including ADC/DAC, LDO, instrumentation amplifiers, electromagnetic relays, PhotoMOS, and MOSFET. In this way, we can cooperate with top Chinese manufacturers in our areas of expertise to provide reliable and cost-effective products to our customers.
Founded on the principles of innovation and excellence,stand at the forefront of semiconductor semiconductor alternative solutions and technology.
Our vision is that provide alternative solutions to our customers, improve the cost performance of their application solutions and ensure the security of their supply chain by made in China.
