YMIF250-65 Original CRRC IGBT Module 6500V 250A High-Voltage Transistor Choppers Discrete Semiconductor Modules

YMIF250-65 Original CRRC IGBT Module 6500V 250A High-Voltage Transistor Choppers Discrete Semiconductor Modules

Introduction

Company Profile

Beijing World E To Technology Co., Ltd. is a technology-based company with import and export qualifications, Founded on the principles of innovation and excellence,stand at the forefront of semiconductor semiconductor alternative solutions and technology. specializing in semiconductor product design, contract customization, and distribution. We have strict requirements on the choice of Cooperation partners, We only cooperate ith technology companies and manufacturers with first-class design and manufacturing technology. The customization of the optimization of factory automatic transmission lines are an other important part of our contract manufacturing.

Our products

1	IGBT module and Driver
2	IGCT module and Driver
3	Inverter core board
4	Diode module
5	Thyristors module
6	Current sensor
7	Capacitor
8	Resistor
9	Solid state relay
10	Industrial robots and Core parts
11	Civil Unmanned Aircraft and Core Parts

Products Description

Features

(1) AISiC Baseplate for high power cycling capability
(2) AIN Substrates for low thermal resistance
(3) SPT+chip-set for low switching losses
(4) Low drivering power

(5) Low VCEsat

Typical Applications

(1) Traction drives
(2) Motor Controllers
(3) DC Choppers
(4) High voltage inverters/converters

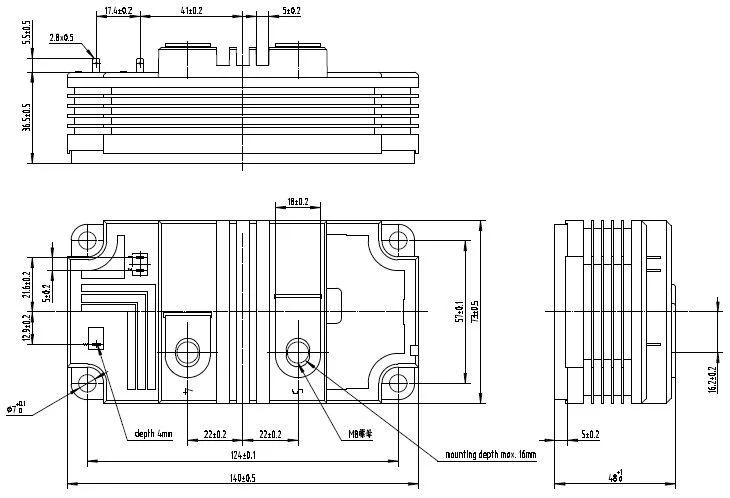

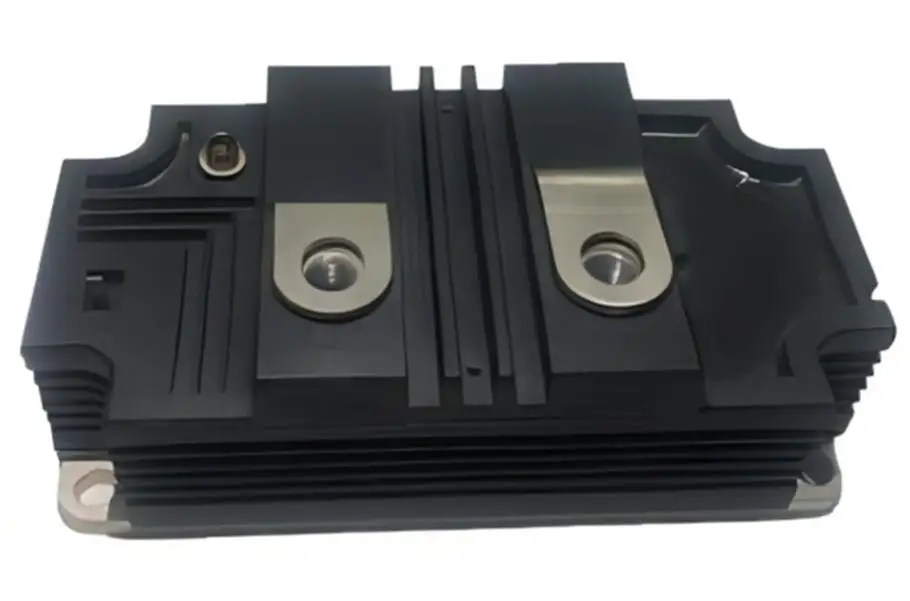

YMIF250-65

6500V/250A High voltage IGBT modules

Key Parameters

Symbol	Description	Value	Unit
V_CES		6500	V
V_CE(sat)	Typ.	4.3	V
I_C	Max.	250	A
I_CM	ICRM	500	A

Absolute Maximum Ratings

Parameter	Symbol	Conditions	min	max	Unit
Collector-emitter voltage	VCES	VGE =0V,Tvj ≥ 25°C		6500	V
DC collector current	IC	TC =80°C		250	A
Peak collector current	ICM	tp=1ms,Tc=80°C		500	A
Gate-emitter voltage	VGES		-20	20	V
Total power dissipation	Ptot	TC =25°C,perswitch(IGBT)		3200	W
DC forward current	IF			250	A
Peak forward current	IFRM	tp=1ms		500	A
IGBT short circuit SOA	tpsc	VCC =4400V,VCEMCHIP ≤ 6500V VGE ≤ 15V,Tvj≤ 125°C		10	μs
Isolation voltage	Visol	1min,f=50Hz		10200	V
Junction temperature	Tvj			125	℃
Junction operating temperature	Tvj(op)		-50	125	℃
Case temperature	TC		-50	125	℃
Storage temperature	Tstg		-50	125	℃
Mounting torques	MS		4	6	Nm
	MT1		8	10
