YMIF1000-33 New Original CRRC High-Voltage IGBT Module 3300V 1500A Transistor for Inverters/Converters Choppers & Drive

Introduction
Company Profile
Beijing World E To Technology Co., Ltd. is a technology-based company with import and export qualifications, Founded on the principles of innovation and excellence,stand at the forefront of semiconductor semiconductor alternative solutions and technology. specializing in semiconductor product design, contract customization, and distribution. We have strict requirements on the choice of Cooperation partners, We only cooperate ith technology companies and manufacturers with first-class design and manufacturing technology. The customization of the optimization of factory automatic transmission lines are an other important part of our contract manufacturing.
1
IGBT module and Driver
2
IGCT module and Driver
3
Inverter core board
4
Diode module
5
Thyristors module
6
Current sensor
7
Capacitor
8
Resistor
9
Energy storage system
10
Industrial robots and Core parts
11
Civil Unmanned Aircraft and Core Parts
Products Description

Features

(1) AISiC Baseplate for high power cycling capability
(2) AIN Substrates for low thermal resistance
(3) SPT+chip-set for low switching losses
(4) Low drivering power
(5) Low VCEsat
(6) High Thermal Cycling Capability
(7) 10μs Short Circuit Withstand
(8) High current density

Typical Applications

(1) Traction drives
(2) Motor Controllers
(3) DC Choppers
(4) High voltage inverters/converters
converters choppers  drive-0
YMIF1000-33

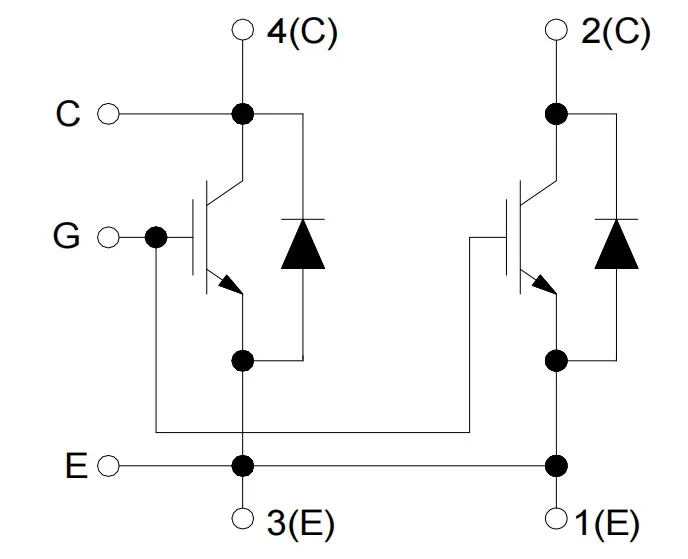

3300V/1000A Single Switch IGBT
Key Parameters
Symbol
Description
Value
Unit
VCES
3300
V
VCE(sat)
Typ.
2.4
V
IC
Max.
1000
A
ICM
ICRM
2000
A

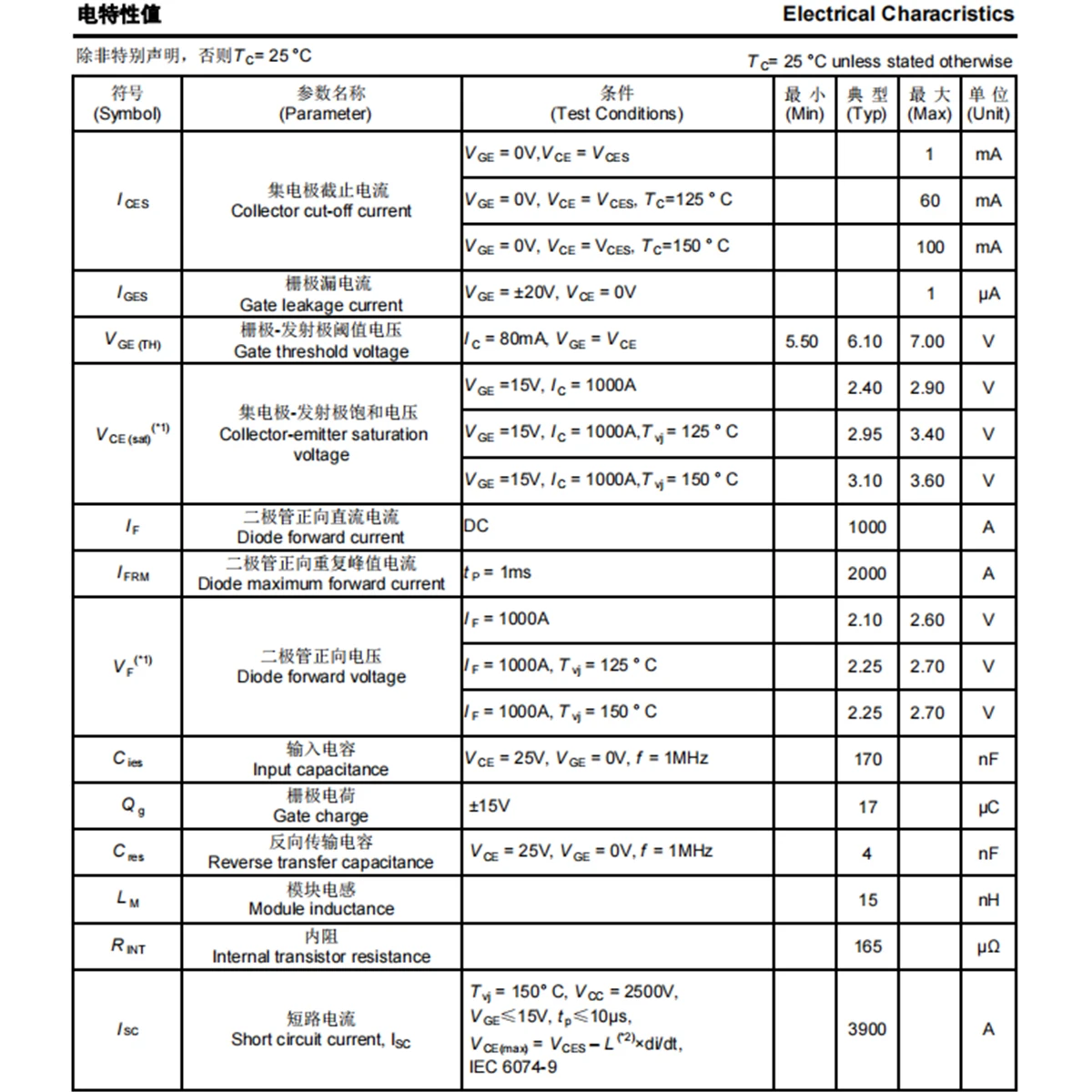

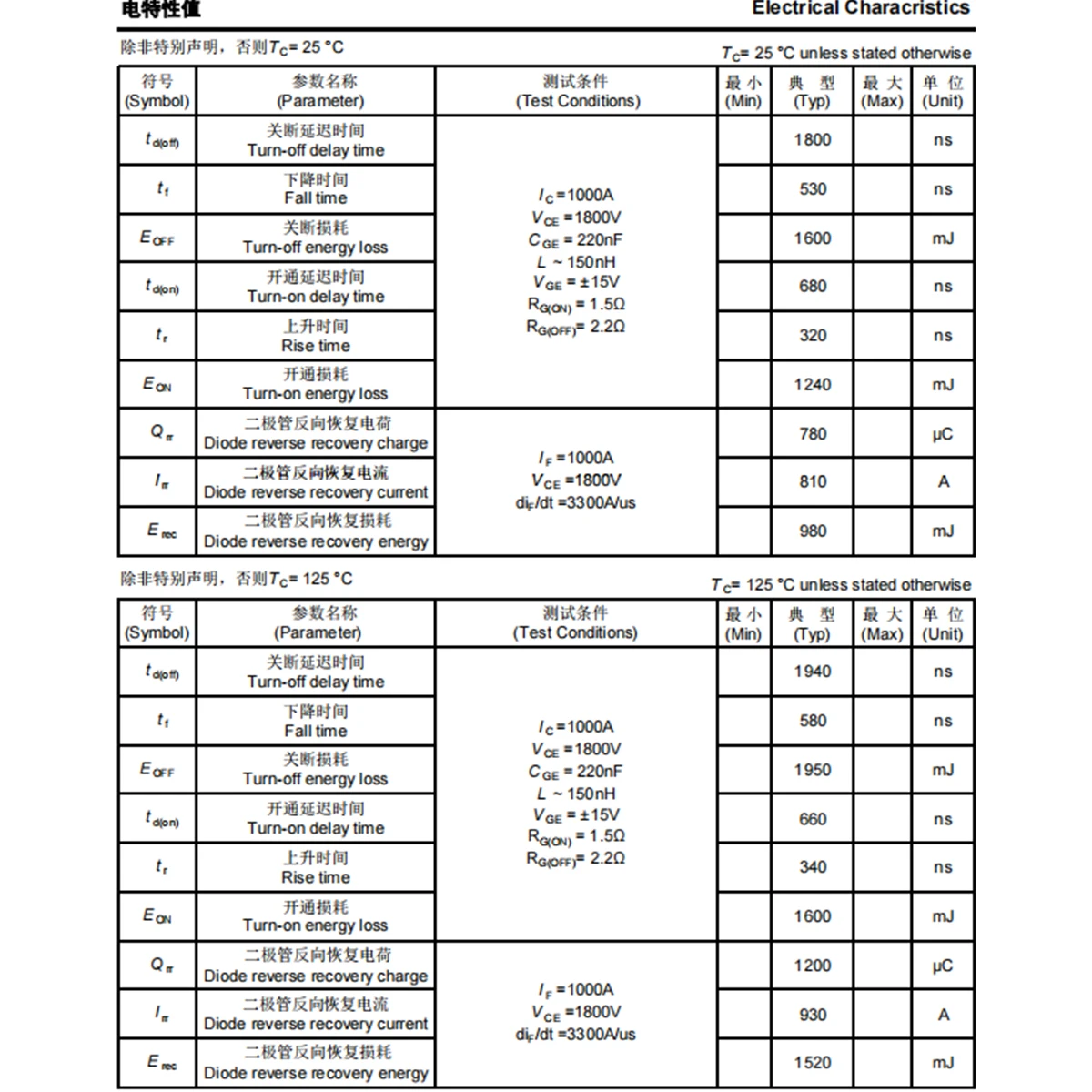

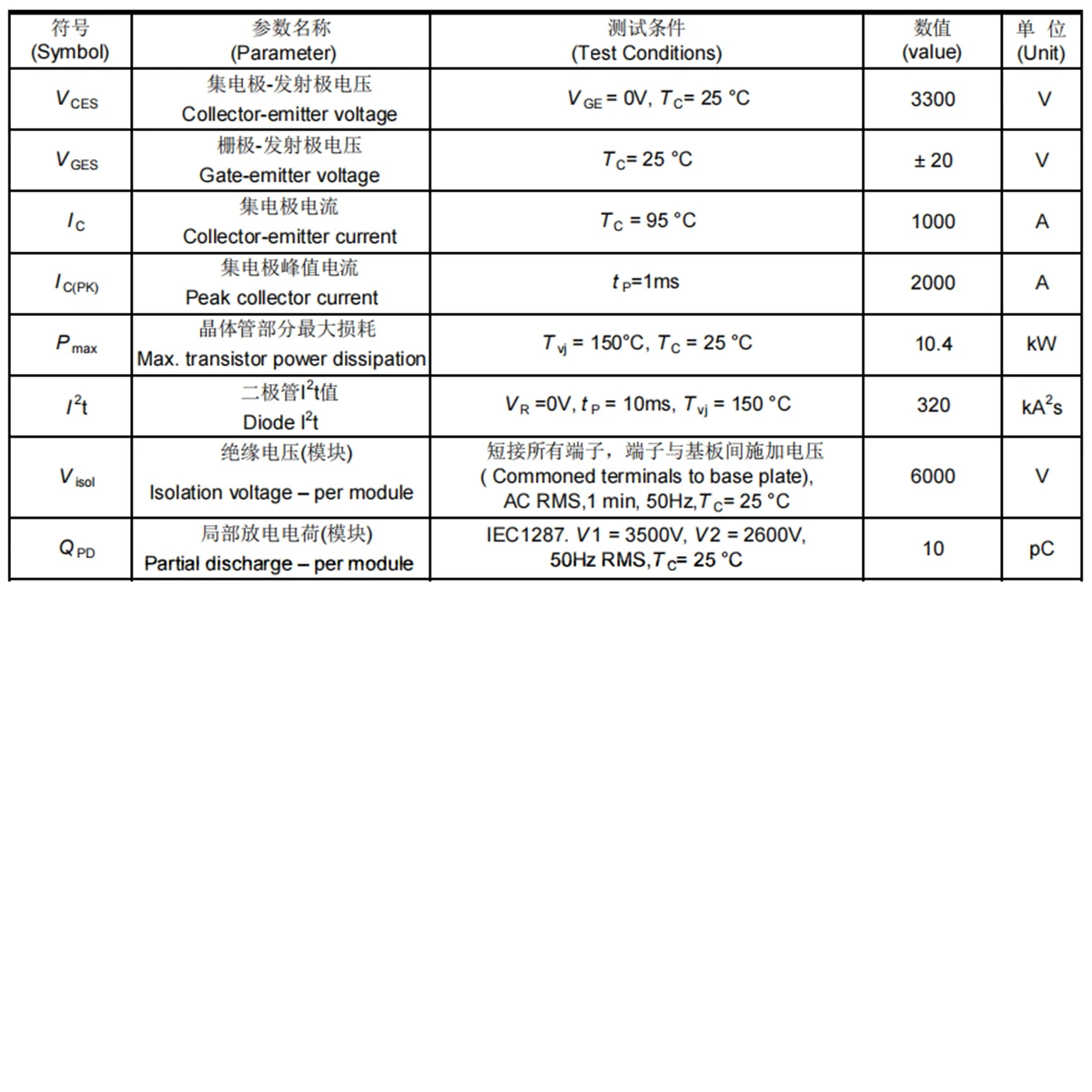

Absolute Maximum Ratings
converters choppers  drive-1
converters choppers  drive-2
converters choppers  drive-3
converters choppers  drive-4
Why Choose Us
1. we only distribute products from Chinese manufacturers with first-class technology.This is our key measure.
2. We have strict requirements on the choice of manufacturers.
3. We have the ability to provide customers with alternative solutions from China.
4. We have a responsible team.
Product packaging
converters choppers  drive-5

MPQ:

2pcs
converters choppers  drive-6

Add wooden case
According to customer requirements, wooden boxes can be added for protection.

converters choppers  drive-7
