TIM500GDM33-PSA011 New Original CRRC IGBT Power Module Discrete Semiconductor Transistor Choppers Inverters/Converters Drives

Introduction
Company Profile
Beijing World E To Technology Co., Ltd. is a technology-based company with import and export qualifications, Founded on the principles of innovation and excellence,stand at the forefront of semiconductor semiconductor alternative solutions and technology. specializing in semiconductor product design, contract customization, and distribution. We have strict requirements on the choice of Cooperation partners, We only cooperate with technology companies and manufacturers with first-class design and manufacturing technology. The customization of the optimization of factory automatic transmission lines are an other important part of our contract manufacturing.
1
IGBT module and Driver
2
IGCT module and Driver
3
Inverter core board
4
Diode module
5
Thyristors module
6
Current sensor
7
Capacitor
8
Resistor
9
Solid state relay
10
Industrial robots and Core parts
11
Civil Unmanned Aircraft and Core Parts
Products Description

Features

(1) AISiC Baseplate for high power cycling capability
(2) AIN Substrates for low thermal resistance
(3) High Thermal Cycling Capability
(4) High current density

(5) 10μs short circuit withstand
(6) Low VCEsat

Typical Applications

(1) Traction drives
(2) Motor Controllers
(3) Choppers
(4) Medium voltage inverters/converters
converters drives-0

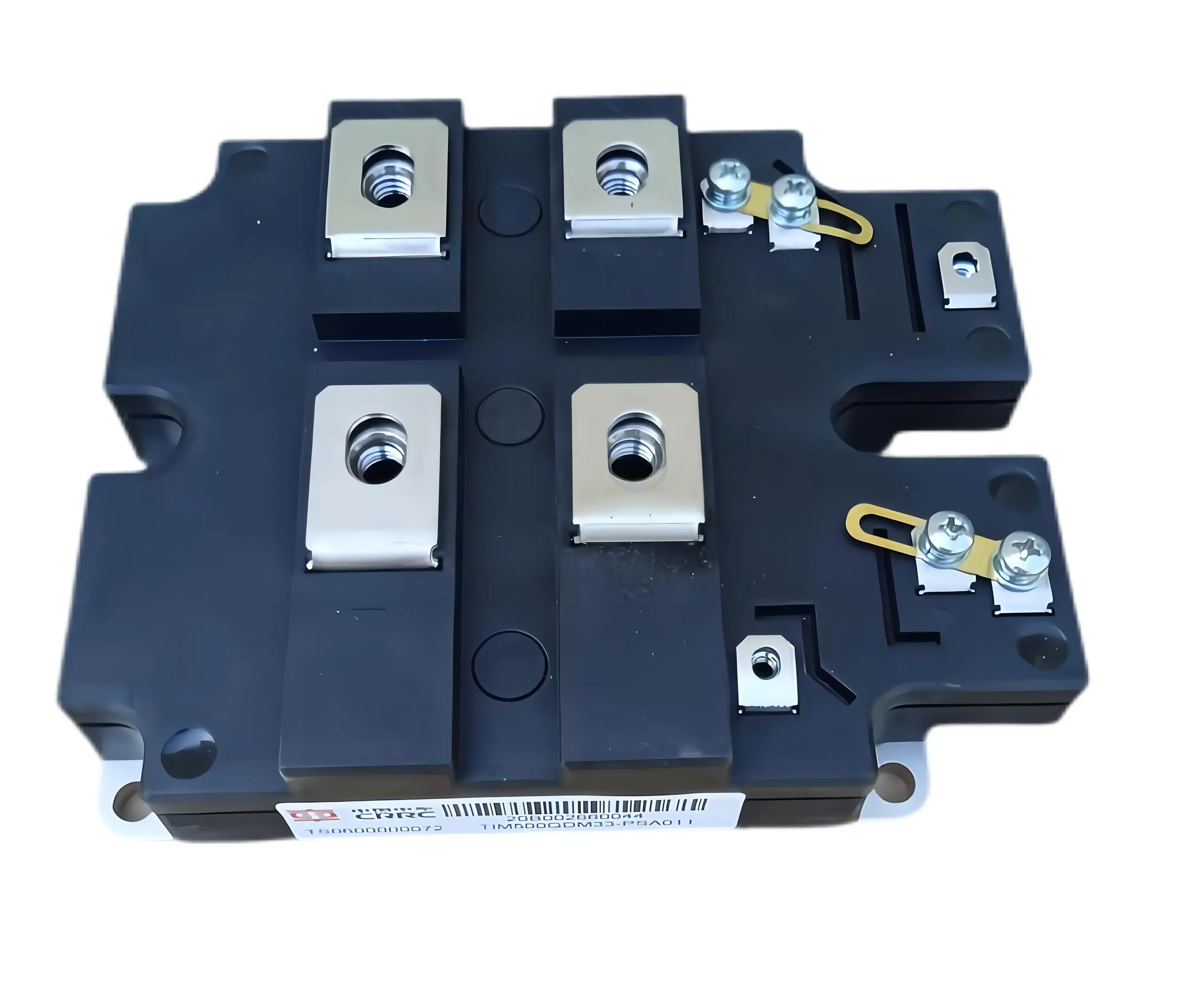

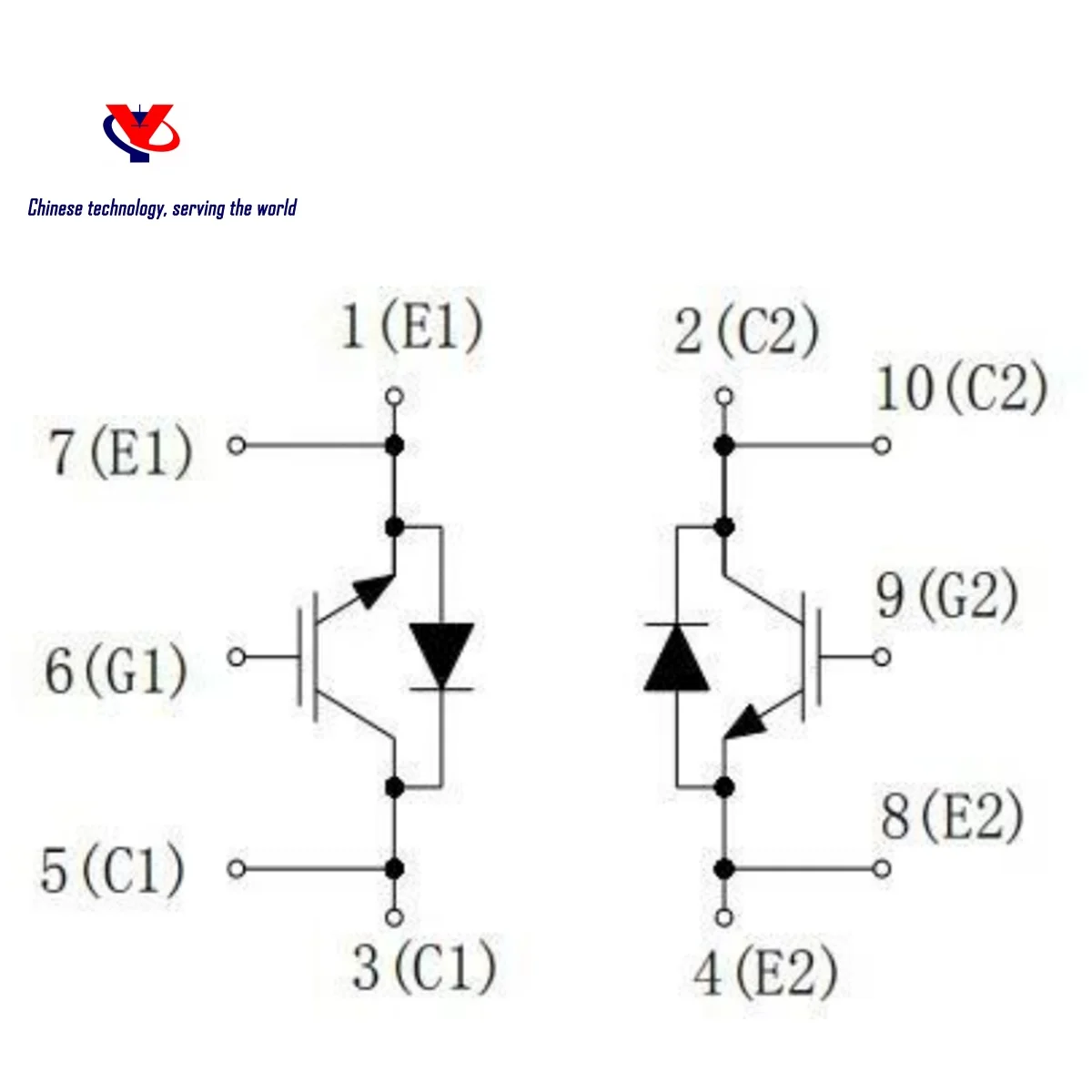

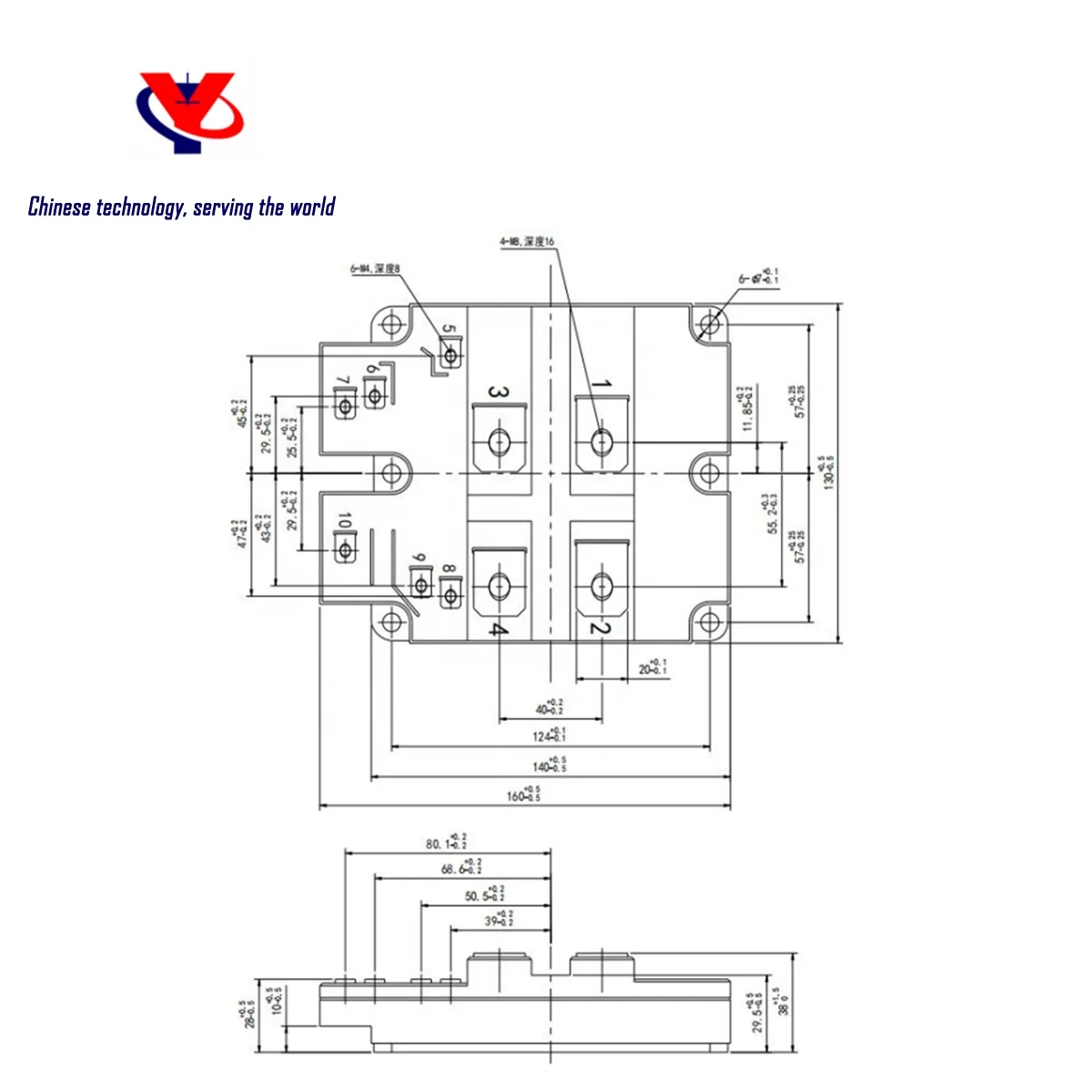

TIM500GDM33-PSA011
YMIBD500-33
3300V/500A High voltage IGBT modules
Key Parameters
Symbol
Description
Value
Unit
VCES
3300
V
VCE(sat)
Typ.
2.4
V
IC
Max.
500
A
ICM
ICRM
1000
A


Absolute Maximum Ratings
Symbol
Description
Value
Unit
VCES
Collector-Emitter Voltage
3300
V
VGES
Gate-Emitter Voltage
±20
V
IC
Collector Current @ TC=100℃
500
A
ICM
Pulsed Collector Current ,tp=1ms,Tc=140°C
1000
A
Ptot
Total power dissipation,TC=25°C,per switch(IGBT)
5200
W
I 2 t
Diode I 2 t ,VR =0V, tP = 10ms, Tvj = 150°C
80
kA2 s
Visol
1min,f=50Hz
6000
V
tpsc
IGBT short circuit SOA
VCC=2500V,VCEMCHIP≤3300V
VGE≤15V,Tvj≤125°C
10
μs
IF
DC forward current
500
A
IFRM
Peak forward current ,tp=1ms
1000
A
QPD
Partial discharge,V1= 3500V ,V2= 2600V,
50Hz RMS,TC=25°C(IEC 61287)
10
pC
Mounting torques
MS Mounting – M6
5
Nm
MT1 Electrical connections – M4
2
MT2 Electrical connections – M8
8
Diode characteristic values
Symbol
Parameter
Test Conditions
Min.
typ
Max.
Value
Unit
VF
Forward voltage
IF =500A
Tvj = 25 °C
2.10
2.60
V
Tvj = 125 °C
2.25
2.7
V
Tvj = 15 0°C
2.25
2.7
V
Irr


Reverse recovery current
IF =500A
VCC=1800V,
diF/dt=2100A/μs
Tvj = 25 °C
420
A

Tvj = 125 °C
460
A
V
Tvj = 150 °C
490
Qrr


Recovered charge
IF =500A
VCC=1800V,
diF/dt=2100A/μs
Tvj = 25 °C
390
µC
Tvj = 125 °C
620
Tvj = 150 °C
720
Erec

Reverse recovery energy
IF =500A
VCC=1800V,
diF/dt=2100A/μs
Tvj = 25 °C
480
mJ
Tvj = 125 °C
760
Tvj = 150 °C
900

IGBT characteristic values
Symbol
Parameter
Test Conditions
Min.
Typ.
Max.
Unit
VCEsat
Collector-emitter saturation voltage.IC=500A,VGE=15V
Tvj= 25°C
2.40
2.90
V
Tvj= 125°C
2.95
3.40
V
Tvj= 150°C
3.10
3.60
V
IGES
Gate leakage current
VCE=0V, VGE=±20V, Tvj=25°C
-500
500
nA
VGE (TH)
Gate-emitter threshold voltage
IC=40mA, VCE=VGE, Tvj=25°C
5.5
6.1
7.0
V
ICES
Collector-emitter saturation voltage.VCE=3300V,VGE=0V
Tvj= 25°C
1
mA
Tvj= 125°C
30
mA
Tvj = 150 °C
50
mA
ISC
Short circuit current
tpsc ≤ 10μs, VGE =15V,
Tvj = 150°C,VCC= 2500V
250
A
IFRM
Diode peak forward current
tP = 1ms
500
A
td(on)
Turn-on delay time
Tvj = 25 °C
650
ns
Tvj = 125 °C
630
ns
Tvj = 150 °C
620
ns
td(off)
Turn-off delay time
Tvj = 25 °C
1720
ns
Tvj = 125 °C
1860
ns
Tvj = 150 °C
1920
ns
ISC
Short circuit current
tpsc ≤ 10μs, VGE =15V,
Tvj = 150°C,VCC= 2500V
1800
A
Cies
Input capacitance
VCE=25V,VGE=0V,f=1MHz,Tvj=25°C
90
nF
Qg
Gate charge
C=500A,VCE=1800V,VGE=-15V…15V
5.0
µC
Cres
Reverse transfer capacitance
VCE=25V,VGE=0V,f=1MHz,Tvj=25°C
2
nF
Eon
Turn-on switching loss energy
Tvj = 25 °C
Tvj = 125 °C
Tvj = 150 °C
VCC=1800V, IC=500A, RG(ON)=3.0Ω
RG(OFF)=4.5Ω,CGE=100nF,VGE=±15V
Lδ=150nH
730
nH
880
mJ
930
Eoff
Turn-off switching loss energy
Tvj = 25 °C
Tvj = 125 °C
Tvj = 150 °C
780
mJ
900
1020
Why Choose Us
1. we only distribute products from Chinese manufacturers with first-class technology.This is our key measure.
2. We have strict requirements on the choice of manufacturers.
3. We have the ability to provide customers with alternative solutions from China.
4. We have a responsible team.

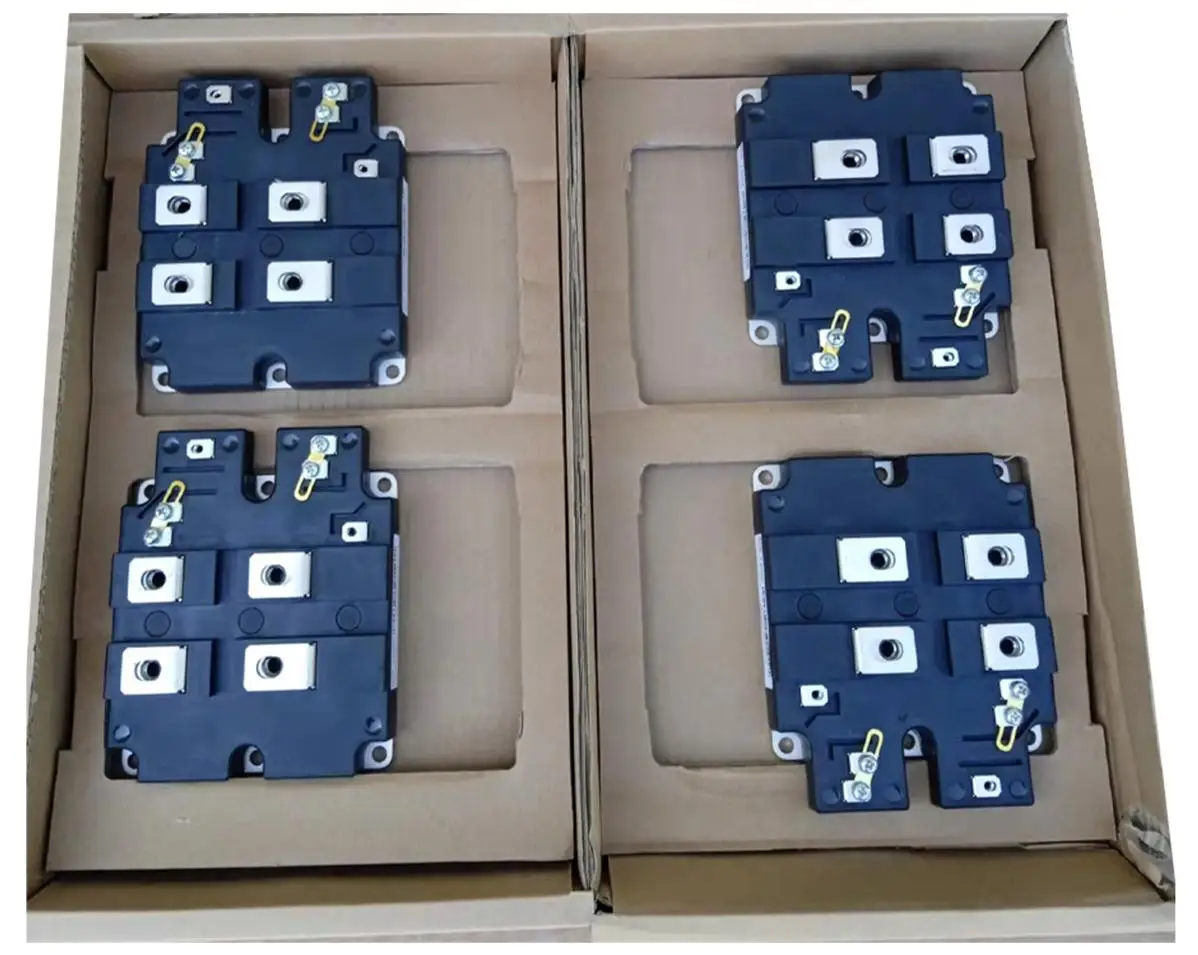

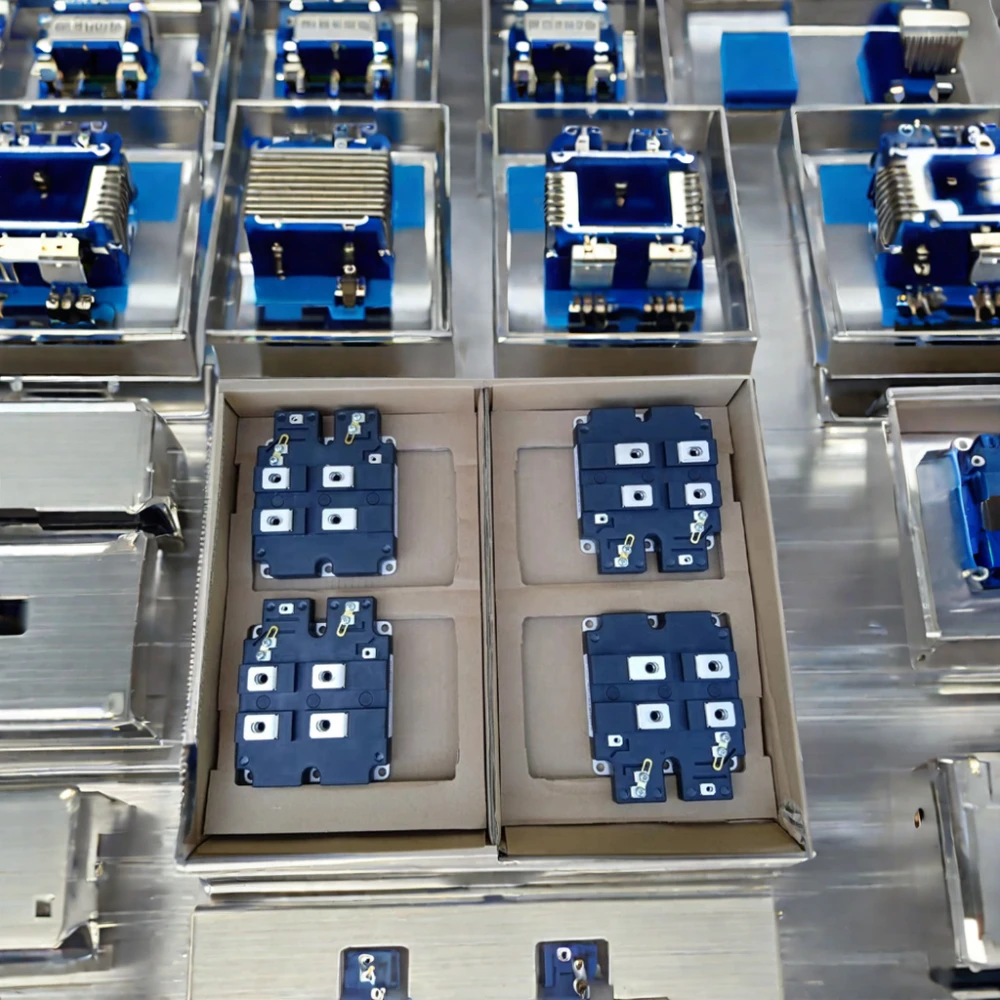

Product packaging
converters drives-1

MPQ:

2pcs
converters drives-2

Add wooden case
According to customer requirements, wooden boxes can be added for protection.

converters drives-3
