TG1400HF12H1-S300 IGBT Module Transistor for inverters converters drives New and Original CRRC Wind Turbines Motor Drives

Introduction
Company Profile
Beijing World E To Technology Co., Ltd. is a technology-based company with import and export qualifications, Founded on the principles of innovation and excellence,stand at the forefront of semiconductor semiconductor alternative solutions and technology. specializing in semiconductor product design, contract customization, and distribution. We have strict requirements on the choice of Cooperation partners, We only cooperate ith technology companies and manufacturers with first-class design and manufacturing technology. The customization of the optimization of factory automatic transmission lines are an other important part of our contract manufacturing.
1
IGBT module and Driver
2
IGCT module and Driver
3
Inverter core board
4
Diode module
5
Thyristors module
6
Current sensor
7
Capacitor
8
Resistor
9
Energy storage system
10
Industrial robots and Core parts
11
Civil Unmanned Aircraft and Core Parts
Products Description

Features

(1) AISiC Baseplate for high power cycling capability
(2) Cu Baseplate
(3) High Thermal Cycling Capability
(4) High current density

(5) 10μs short circuit withstand
(6) Low VCEsat

Typical Applications

(1) Motor Drives
(2) High Power Converters
(3) Wind Turbines
(4) High Reliability Inverter

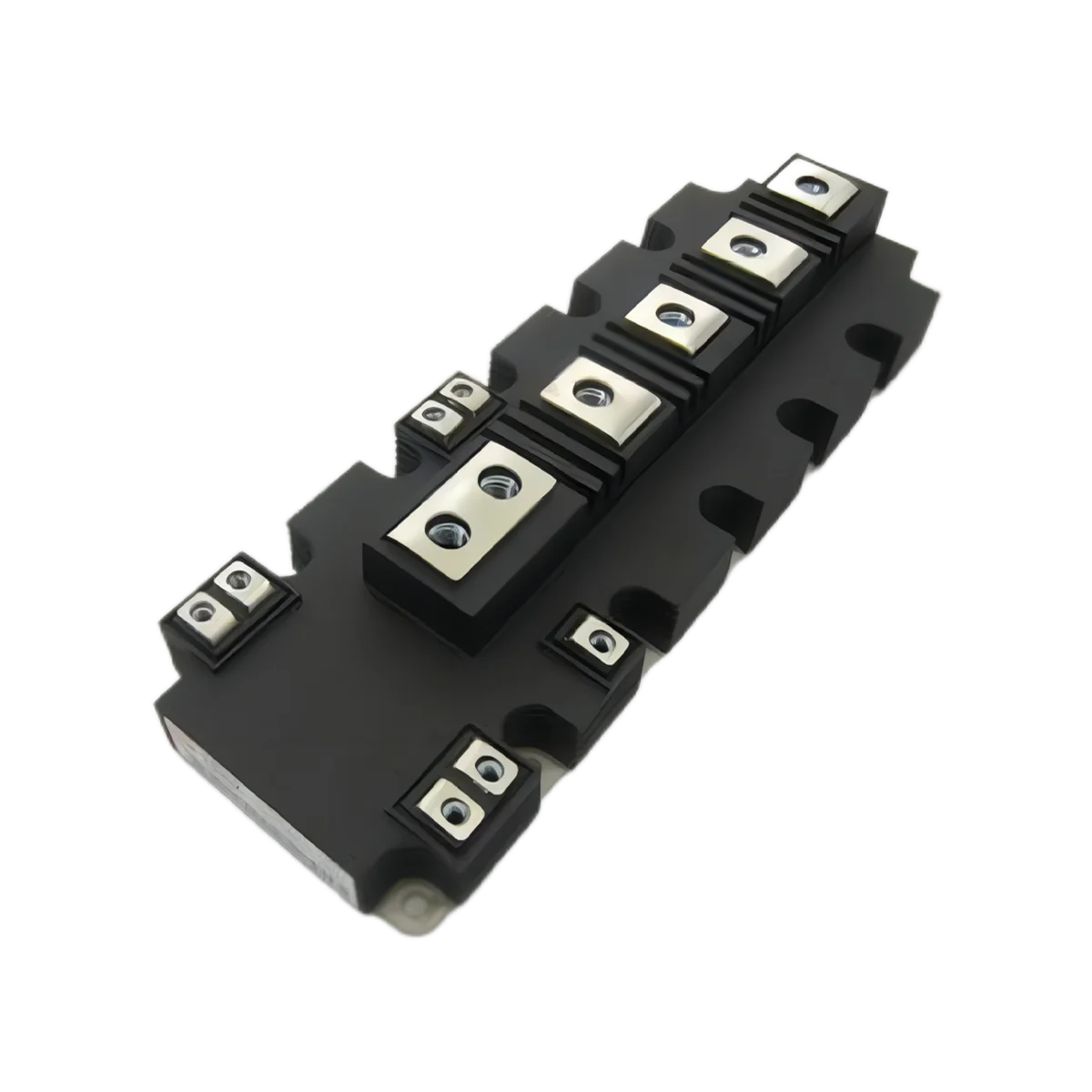

product tg1400hf12h1 s300 igbt module transistor for  inverters converters  drives new and original crrc wind turbines motor drives-0
TG1400HF12H1-S300
1200V/1400A Half Bridge IGBT
Key Parameters
Symbol
Description
Value
Unit
VCES
1200
V
VCE(sat)
Typ.
1.80
V
IC
Max.
1400
A
IC(RM)
Max.
2800
A


Absolute Maximum Ratings(Tcase = 25°C unless stated otherwise)
Symbol
Description
Value
Unit
VCES
Collector-Emitter Voltage
1200
V
VGES
Gate-Emitter Voltage
±20
V
IC
Collector Current @ Tcase = 100 °C
1400
A
IC(PK)
Peak collector current ,tp=1ms, Tcase = 110 °C
2800
A
Pmax
Max. transistor power dissipation,Tvj = 150°C, Tcase = 25 °C
7500
W
I 2 t
Diode I 2 t ,VR =0V, tP = 10ms, Tvj = 150°C
172
kA2 s
Visol
( Commoned terminals to base plate), AC RMS,1 min, 50Hz
4000
V
IF
Diode forward current, DC
1000
A
IFRM
Diode maximum forward current ,tp=1ms
2000
A
Mounting torques
Mounting – M5
6
Nm
Electrical connections – M8
10

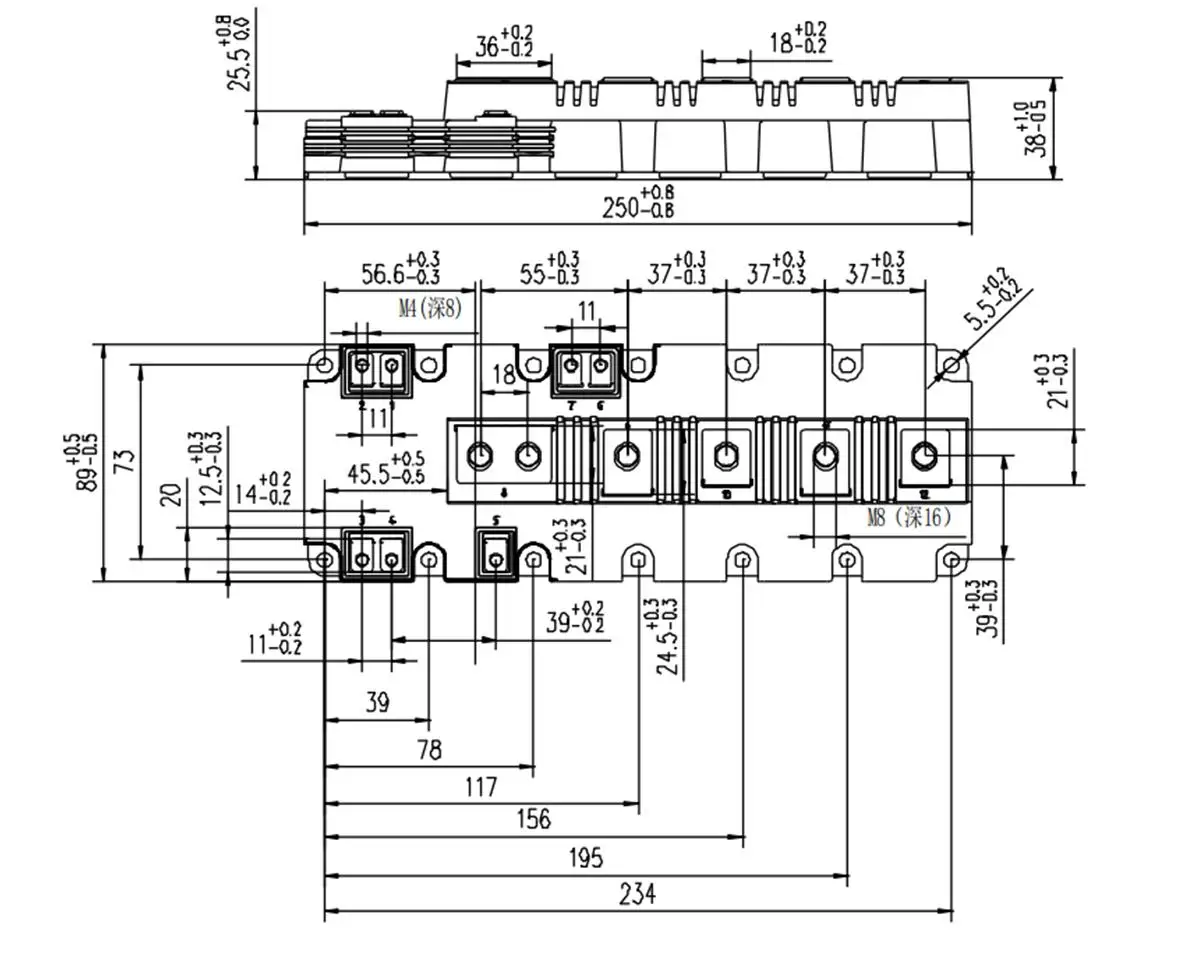

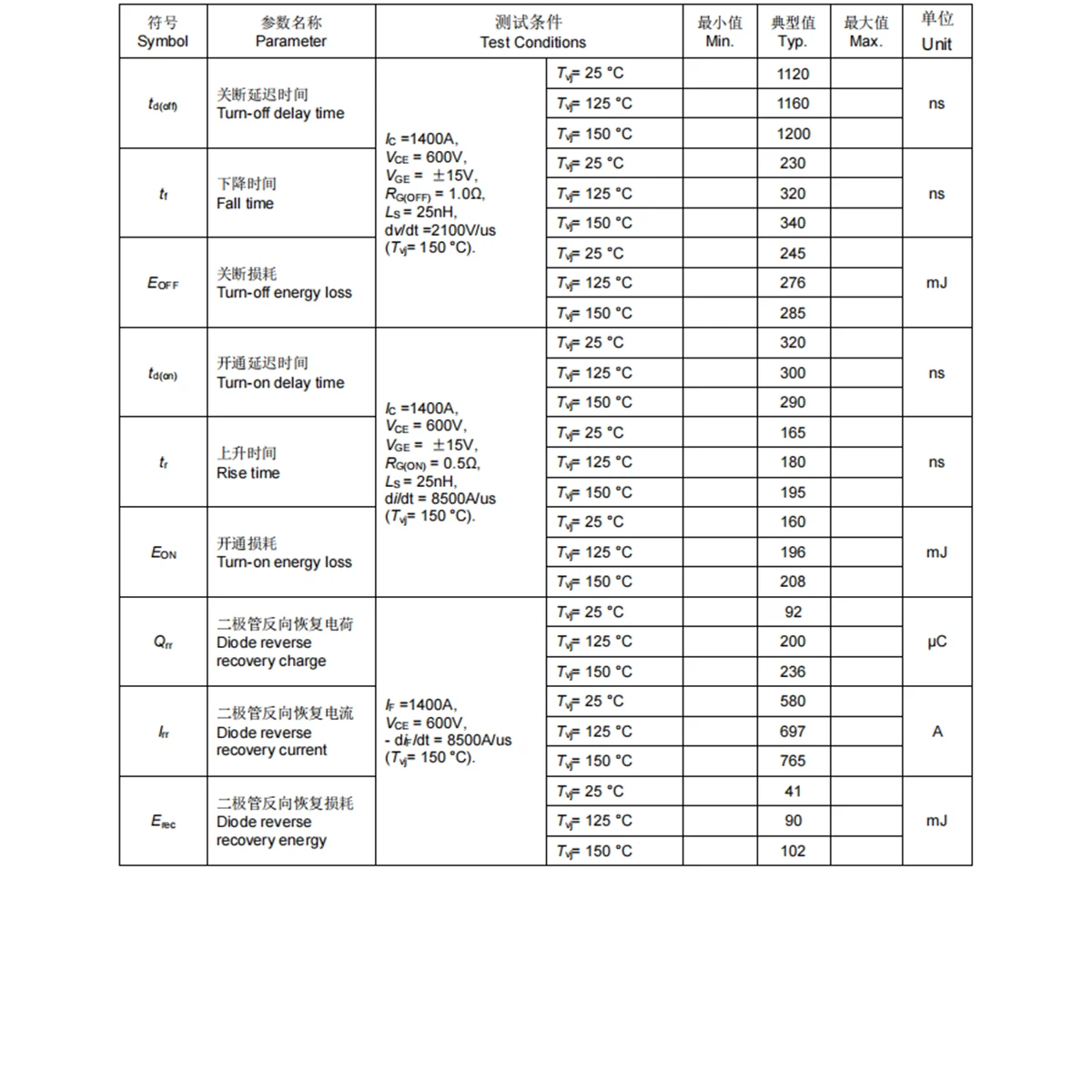

Electrical Characteristics
product tg1400hf12h1 s300 igbt module transistor for  inverters converters  drives new and original crrc wind turbines motor drives-1

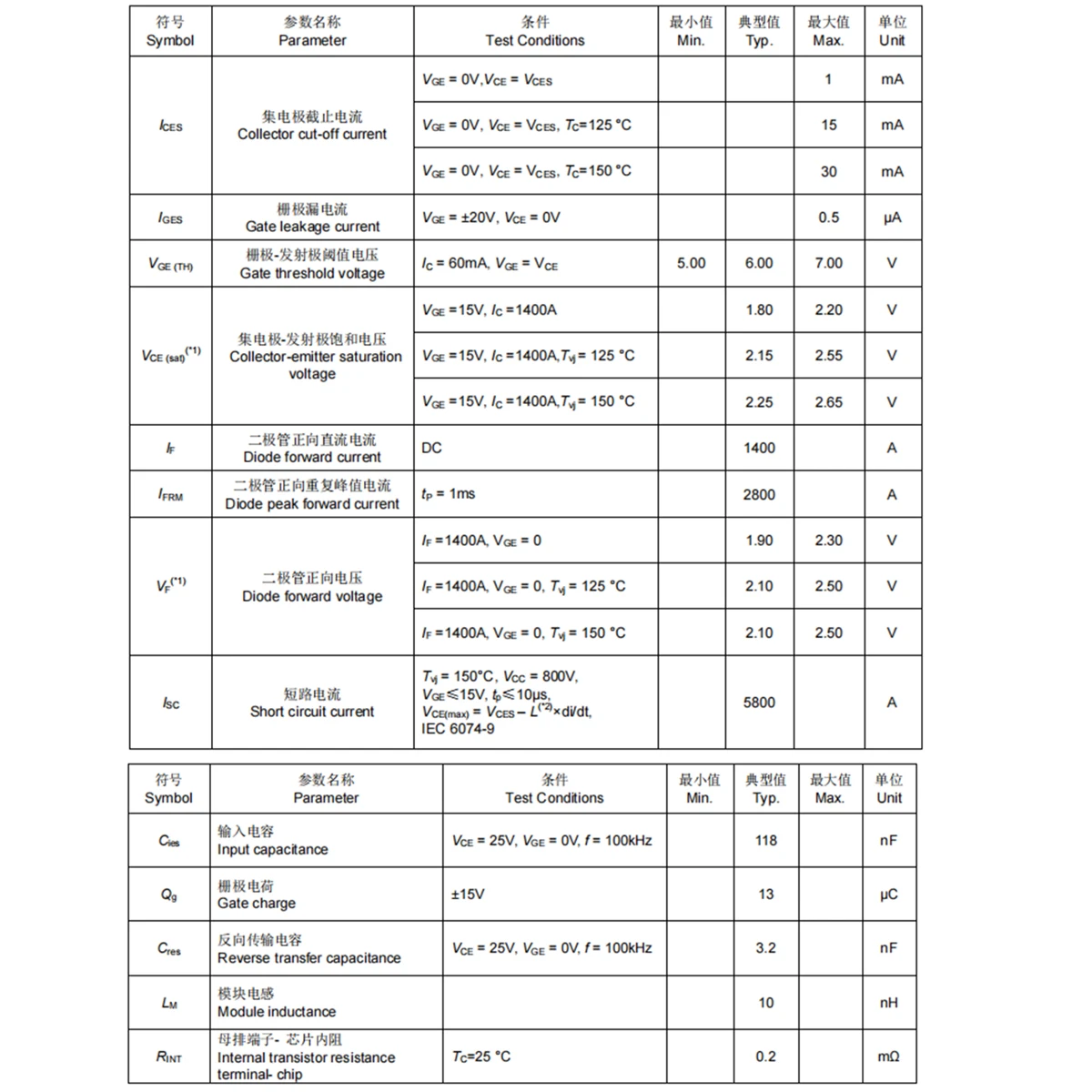

Electrical Characteristics
