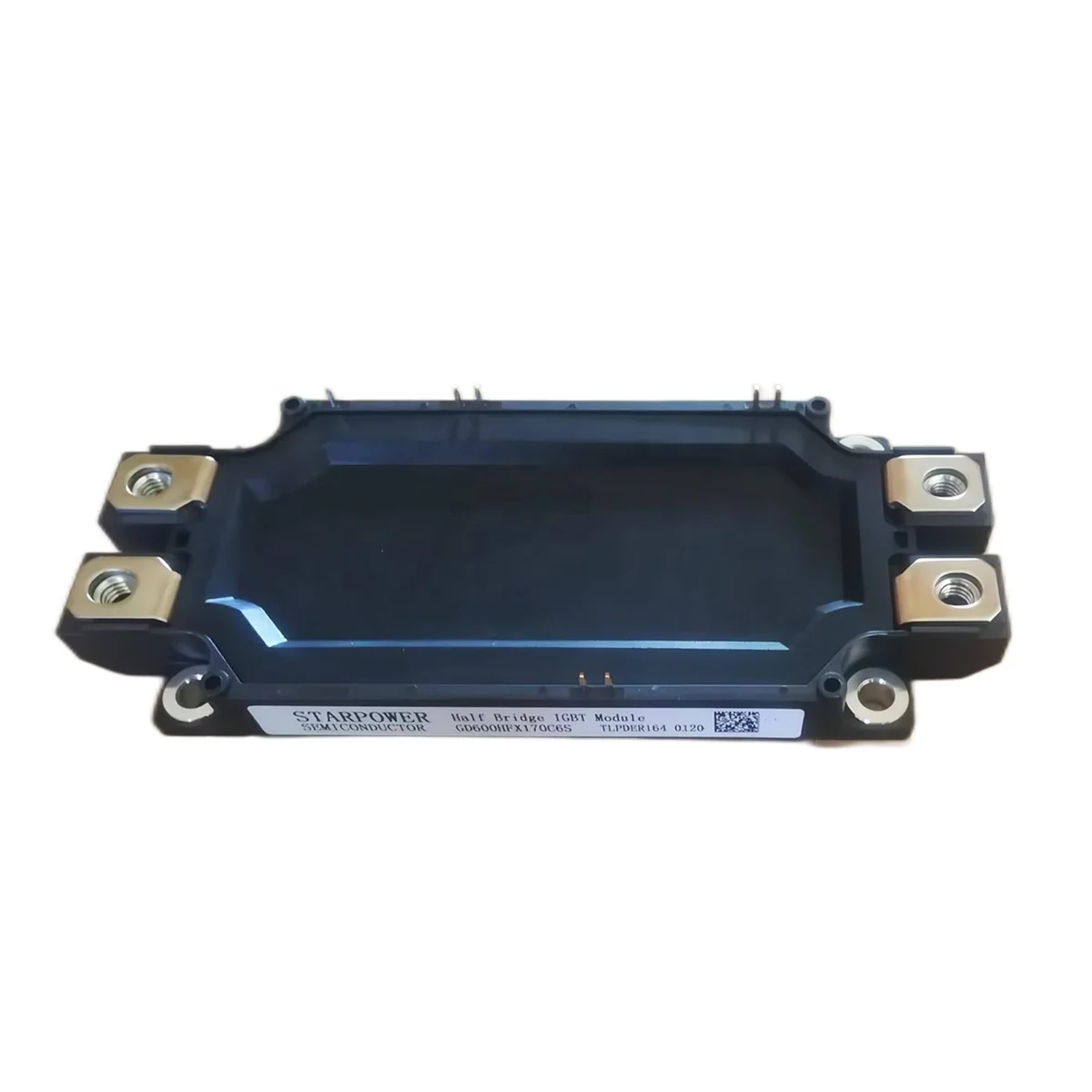

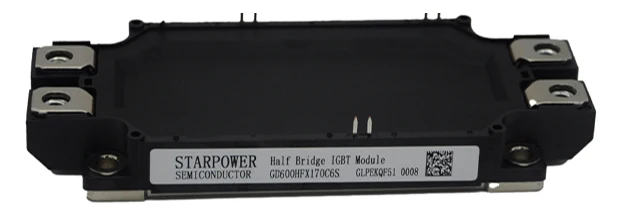

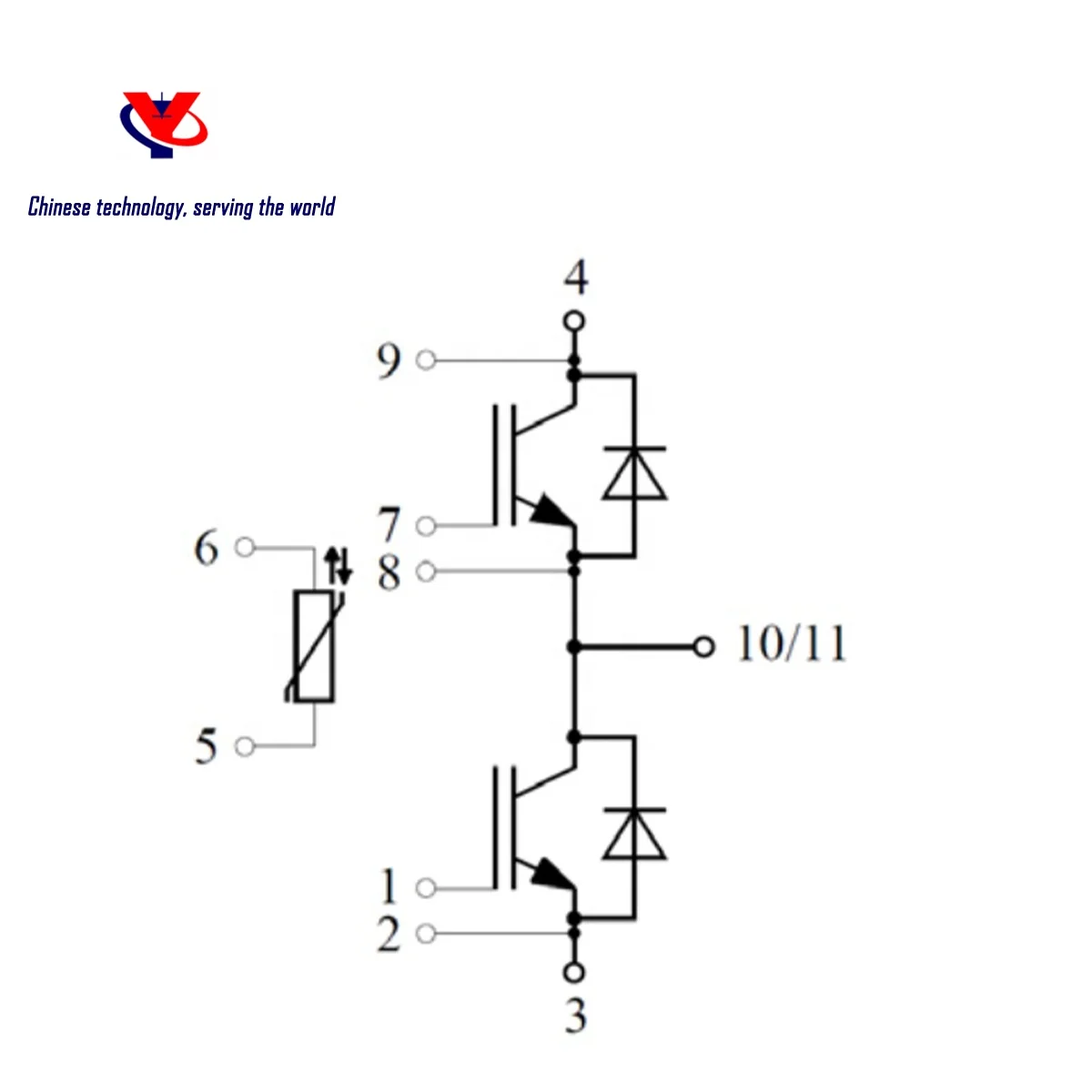

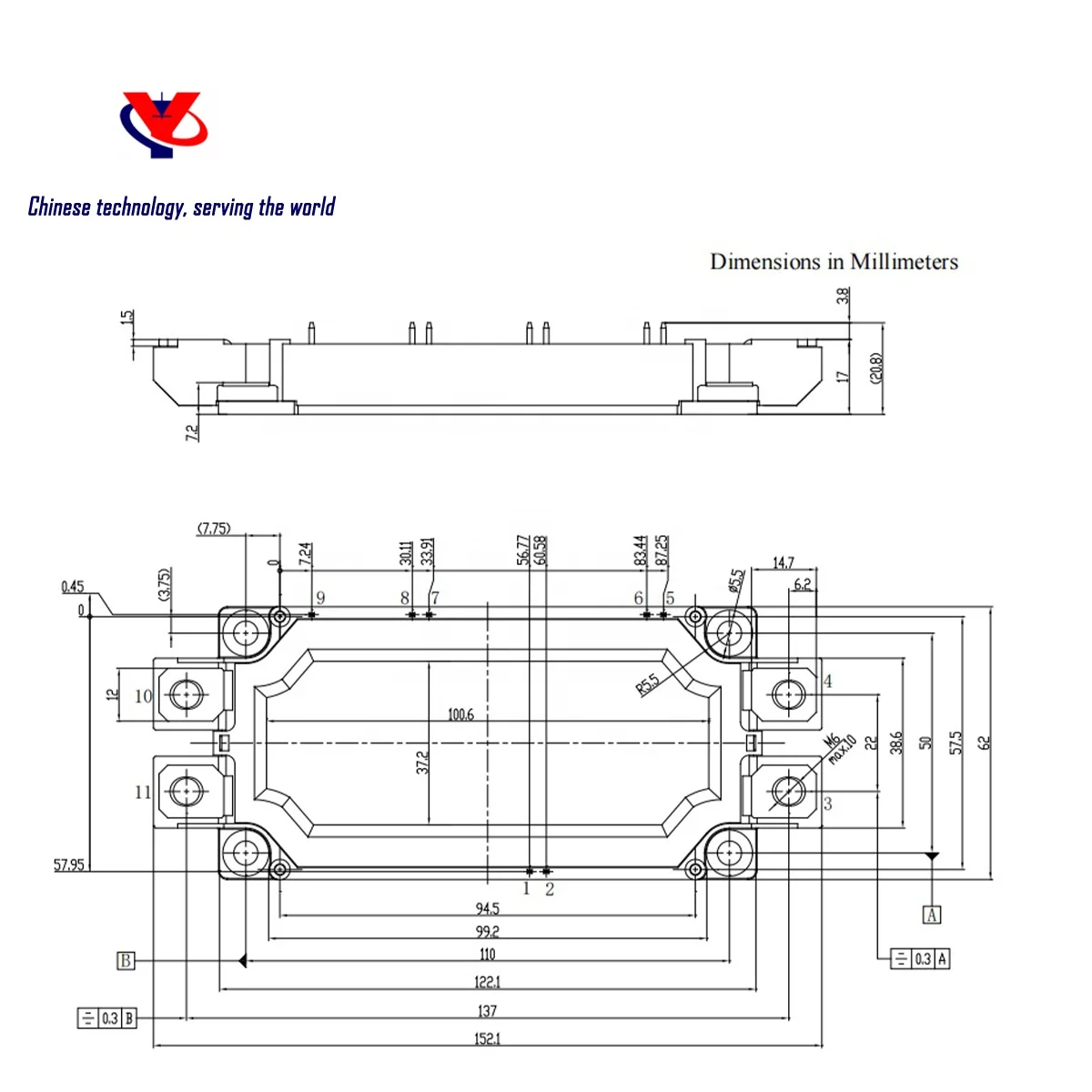

General Description
This type Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS.
1 |
IGBT module and Driver |
2 |
IGCT module and Driver |
3 |
Inverter core board |
4 |
Diode module |
5 |
Thyristors module |
6 |
Current sensor |
7 |
Capacitor |
8 |
Resistor |
9 |
Solid state relay |
10 |
Industrial robots and Core parts |
11 |
Civil Unmanned Aircraft and Core Parts |
Symbol |
Description |
Value |
Unit |
VCES |
Collector-Emitter Voltage |
1700 |
V |
VGES |
Gate-Emitter Voltage |
±20 |
V |
IC |
Collector Current @ TC=25℃ @ TC=100℃ |
1069 600 |
A |
ICM |
Pulsed Collector Current tp=1ms |
1200 |
A |
PD
|
Maximum Power Dissipation @ Tj=175℃ |
4166 |
W |
Symbol |
Description |
Value |
Unit |
VRRM
|
Repetitive Peak Reverse Voltage |
1700 |
V |
IF |
Diode Continuous Forward Current |
600 |
A |
IFM |
Diode Maximum Forward Current tp=1ms |
1200 |
A |
IFSM
|
Surge Forward Current VR=0V,tp=10ms, @Tj=25℃ @Tj=150℃ |
3400 |
A |
2700 |
|||
I 2 t |
I 2 t-value,tp=10ms @ Tj=25℃ @ Tj=150℃ |
57800 |
A2 s |
36450 |
Symbol |
Description |
Value |
Unit |
Tjmax
|
Maximum Junction Temperature |
175 |
℃ |
Tjop
|
Operating Junction Temperature |
-40 to +150 |
℃ |
TSTG |
Storage Temperature Range |
-40 to +125 |
℃ |
VISO
|
Isolation Voltage RMS,f=50Hz,t=1min |
4000 |
V |
