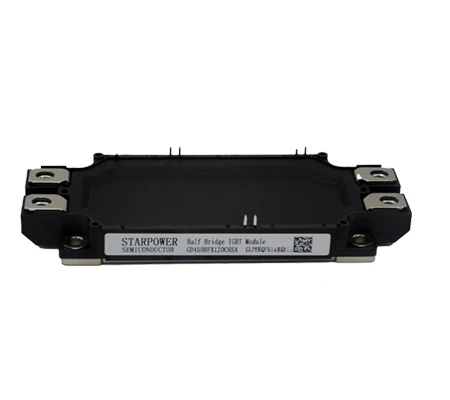

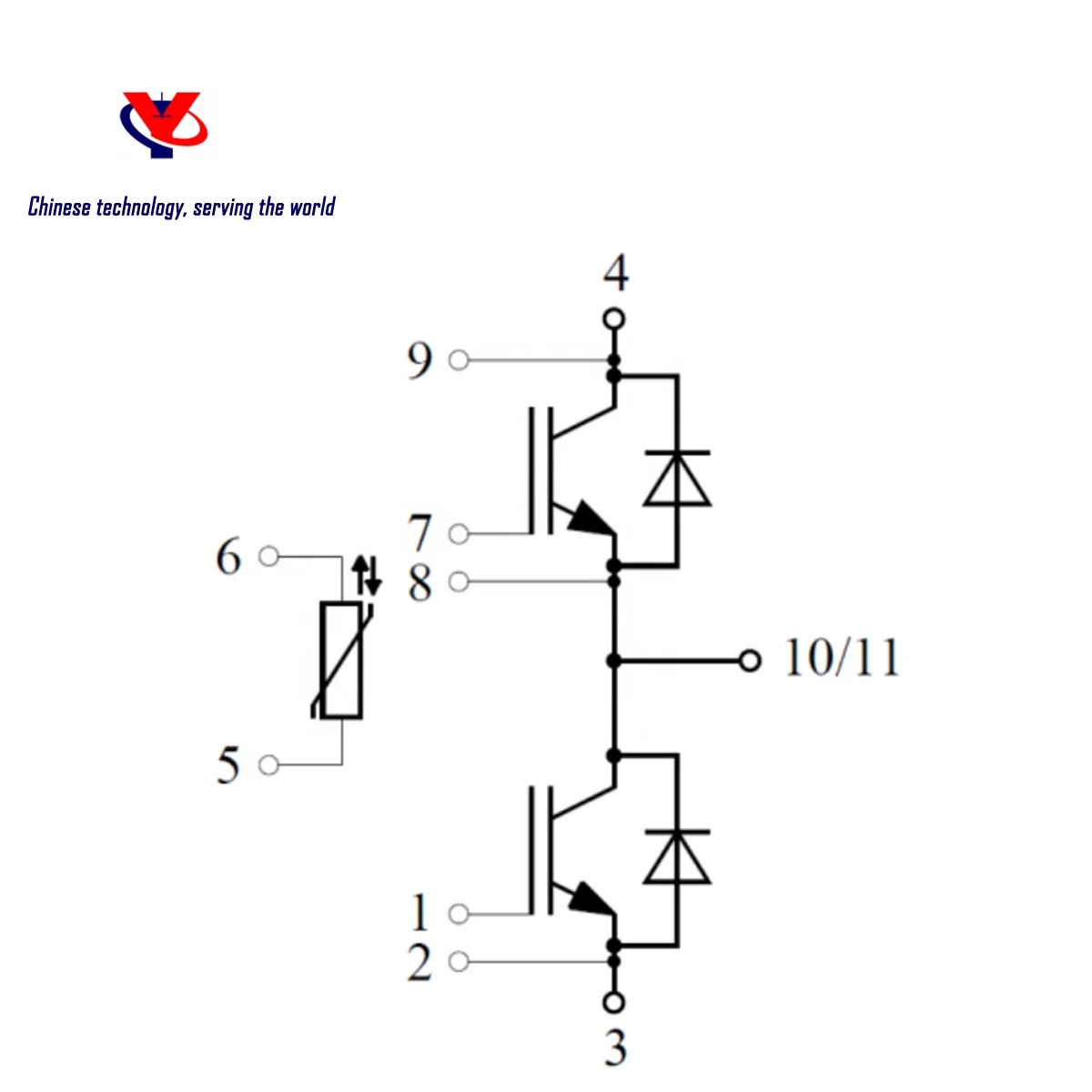

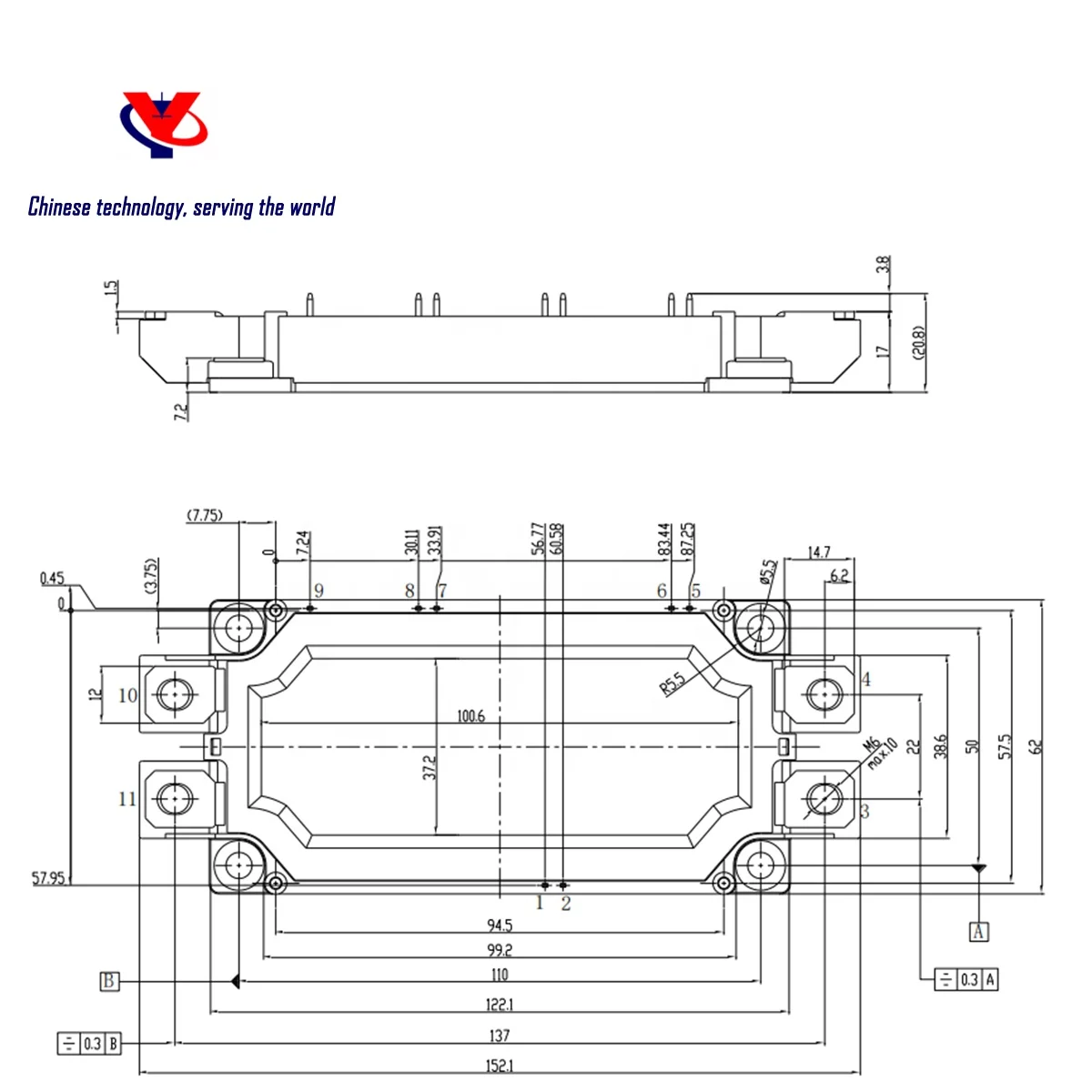

General Description
This type Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS.
Our products list: |
||
1 |
IGBT module and Driver |
|
2 |
IGCT module and Driver |
|
3 |
Inverter core board |
|
4 |
Diode module |
|
5 |
Thyristors module |
|
6 |
Current sensor |
|
7 |
Capacitor |
|
8 |
Resistor |
|
9 |
Solid state relay |
|
10 |
Industrial robots and Core parts |
|
11 |
Civil Unmanned Aircraft and Core Parts |
Symbol |
Description |
Value |
Unit |
VCES |
Collector-Emitter Voltage |
1200 |
V |
VGES |
Gate-Emitter Voltage |
±20 |
V |
IC |
Collector Current @ TC=25℃ @ TC=100℃ |
680 450 |
A |
ICM |
Pulsed Collector Current tp=1ms |
900 |
A |
PD
|
Maximum Power Dissipation @ Tj=175℃ |
2173 |
W |
Symbol |
Description |
Value |
Unit |
VRRM
|
Repetitive Peak Reverse Voltage |
1200 |
V |
IF |
Diode Continuous Forward Current |
450 |
A |
IFM |
Diode Maximum Forward Current tp=1ms |
900 |
A |
Symbol |
Description |
Value |
Unit |
Tjmax
|
Maximum Junction Temperature |
175 |
℃ |
Tjop
|
Operating Junction Temperature |
-40 to +150 |
℃ |
TSTG |
Storage Temperature Range |
-40 to +125 |
℃ |
VISO
|
Isolation Voltage RMS,f=50Hz,t=1min |
2500 |
V |
