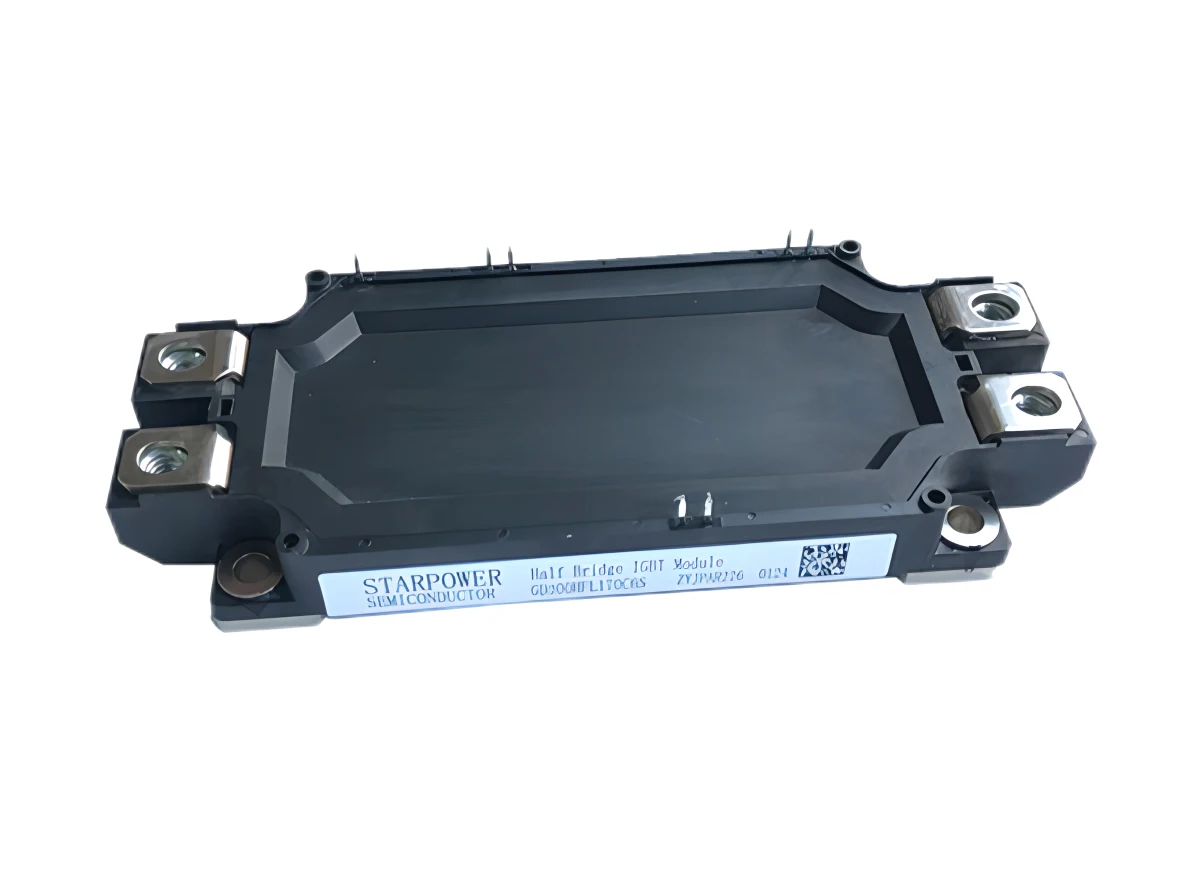

GD300HFX170C2S Original Power Module New IGBT Transistor Module for UPS Inverter AC DC Servo Drive Amplifier Starpower

Introduction
Company Profile
Beijing World E To Technology Co., Ltd. is a technology-based company with import and export qualifications, Founded on the principles of innovation and excellence,stand at the forefront of semiconductor semiconductor alternative solutions and technology. specializing in semiconductor product design, contract customization, and distribution. We have strict requirements on the choice of Cooperation partners, We only cooperate ith technology companies and manufacturers with first-class design and manufacturing technology. The customization of the optimization of factory automatic transmission lines are an other important part of our contract manufacturing.
1
IGBT module and Driver
2
IGCT module and Driver
3
Inverter core board
4
Diode module
5
Thyristors module
6
Current sensor
7
Capacitor
8
Resistor
9
Solid state relay
10
Industrial robots and Core parts
11
Civil Unmanned Aircraft and Core Parts
Products Description

Features

(1) Low VCE(sat) Trench IGBT technology
(2) 10μs short circuit capability
(3) VCE(sat) with positive temperature coefficient
(4) Maximum junction temperature 175℃
(5) Low inductance case
(6) Fast & soft reverse recovery anti-parallel FWD
(7) Isolated copper baseplate using DBC technology

Typical Applications

(1) Inverter for motor drive
(2) AC and DC servo drive amplifier
(3) Uninterruptible power supply
product gd300hfx170c2s original power module new igbt transistor module for ups inverter ac dc servo drive amplifier starpower-0

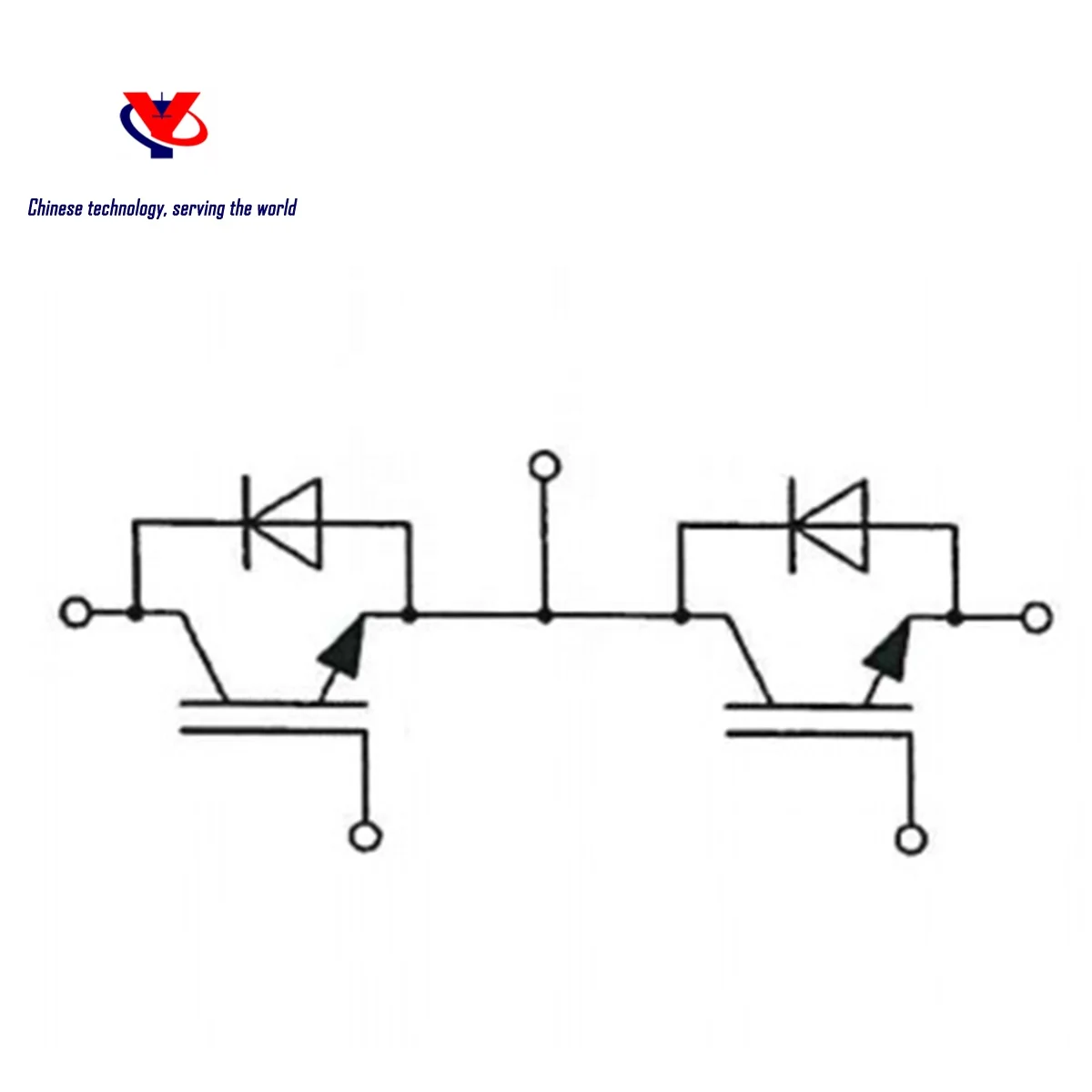

GD300HFX170C2S
1700V/300A 2 in one-package

General Description
This type Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS.

Absolute Maximum Ratings

TC=25℃ unless otherwise noted


IGBT
Symbol
Description
Value
Unit
VCES
Collector-Emitter Voltage
1700
V
VGES
Gate-Emitter Voltage
±20
V
IC
Collector Current @ TC=25℃
@ TC=100℃
650
300
A
ICM
Pulsed Collector Current tp=1ms
600
A
PD
Maximum Power Dissipation @ Tj=175℃
2050
W

Diode
Symbol
Description
Value
Unit
VRRM
Repetitive Peak Reverse Voltage
1700
V
IF
Diode Continuous Forward Current
300
A
IFM
Diode Maximum Forward Current tp=1ms
600
A

Module
Symbol
Description
Value
Unit
Tjmax
Maximum Junction Temperature
175
Tjop
Operating Junction Temperature
-40 to +150
TSTG
Storage Temperature Range
-40 to +125
VISO
Isolation Voltage RMS,f=50Hz,t=1min
4000
V
Why Choose Us
1. we only distribute products from Chinese manufacturers with first-class technology.This is our key measure.
2. We have strict requirements on the choice of manufacturers.
3. We have the ability to provide customers with alternative solutions from China.
4. We have a responsible team.
Product packaging
product gd300hfx170c2s original power module new igbt transistor module for ups inverter ac dc servo drive amplifier starpower-1

MPQ

12pcs
product gd300hfx170c2s original power module new igbt transistor module for ups inverter ac dc servo drive amplifier starpower-2

Delivered in the manufacturer's original packaging

Add wooden case
product gd300hfx170c2s original power module new igbt transistor module for ups inverter ac dc servo drive amplifier starpower-3

Title goes here.

According to customer requirements, wooden boxes can be added for protection.
