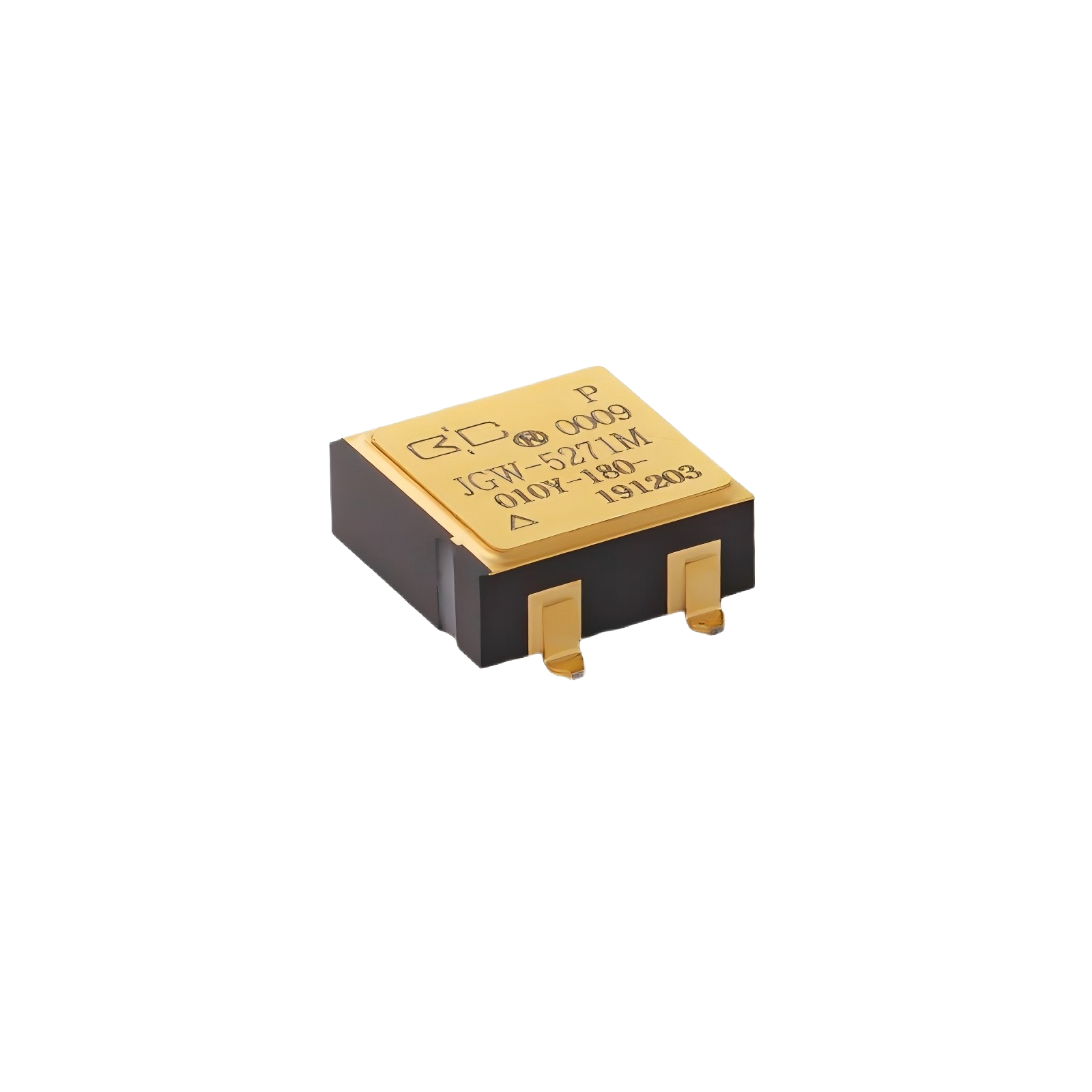

Photo MOS Relay for military use,Defense, aerospace, automation control, ignition control
This product finds wide applications in defense systems, scientific research, industrial automation controls, test instrumentation, medical equipment, and satellite communications.
Dimensions: 10.7mm×6.45mm×2.7mm (L×W×H)
Features
Main parameter
Parameter |
Min |
Typ |
Max |
unit |
Out parameter | ||||
Number of output circuits |
4A (four normally open groups) |
|||
Output configuration mode |
Bidirectional |
|||
Output |
|
|
0.3 |
A |
Output voltage |
|
±80 |
±90 |
Vd.c. |
Output voltage drop |
|
|
0.3 |
Vd.c. |
Overload Current |
|
|
12 |
A |
Transient voltage |
±100 |
|
|
Vd.c. |
Leakage current |
|
|
0.05 |
μA |
Input parameter | ||||
Input currenton |
5 |
10 |
20 |
mA |
Turn-On Current |
|
|
5 |
mA |
Turn-Off Voltage |
0.8 |
|
|
Vd.c. |
Reverse Polarity |
|
|
5 |
Vd.c. |
Forward Voltage Drop |
1 |
1.5 |
18 |
Vd.c. |
Turn-On Time |
|
|
2 |
ms |
Turn-off time |
|
|
1 |
ms |
Insulation Resistance |
500 |
|
|
MΩ |
Dielectric withstand voltage |
500 |
Vd.c. |
||
Power Consumption |
|
|
0.5 |
W |
Isolation Capacitance |
|
|
5 |
pF |
Dimensions
Photo MOS Relay List
P/N |
Description |
Pics |

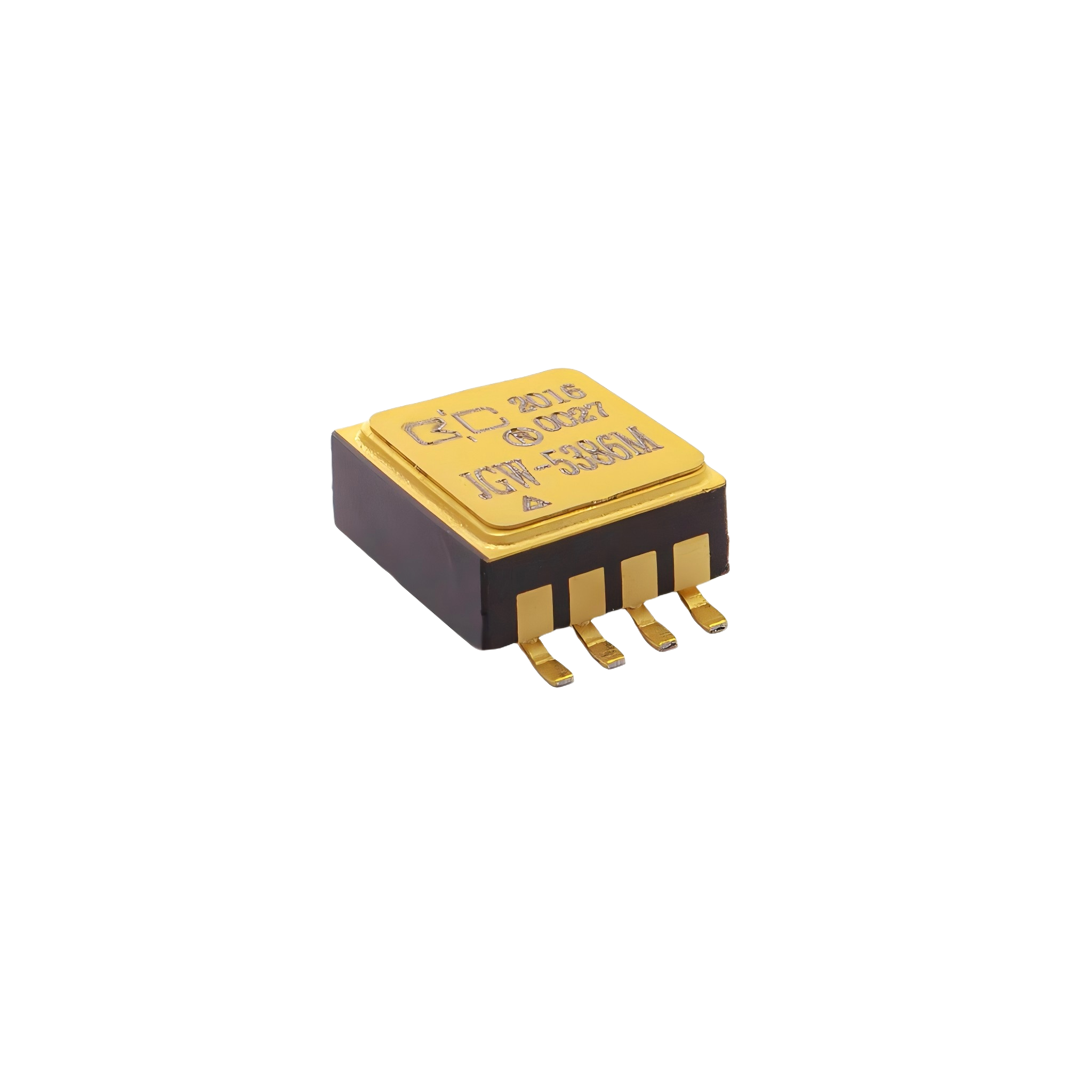

JGW-5386M |
The JGW-5386M type PhotoMOS relay has a quality grade of either Y or X. This product can be widely applied in the fields of national defense, scientific research, and industrial automation control. It is suitable for computerized automatic control systems, testing instruments, medical equipment, satellite communication, and other scenarios. |
|
JGC-5379M |
The JGC-5379M type PhotoMOS relay has a product quality grade of Y or X. This product can be widely used in the fields of national defense, scientific research, and industrial automation control, and is suitable for computerized automatic control systems, testing instruments, medical equipment, satellite communications, and other applications. |
|
JGW-5220MA |
JGW-5220MA type PhotoMOS relay. Quality grade: Y level. This product can be widely applied in fields such as national defense research and industrial automation control, and is suitable for isolation driving of electronic equipment, coupling amplification of digital signals, switching of analog signals, driving of power transistors, and measurement instruments, etc. |
|

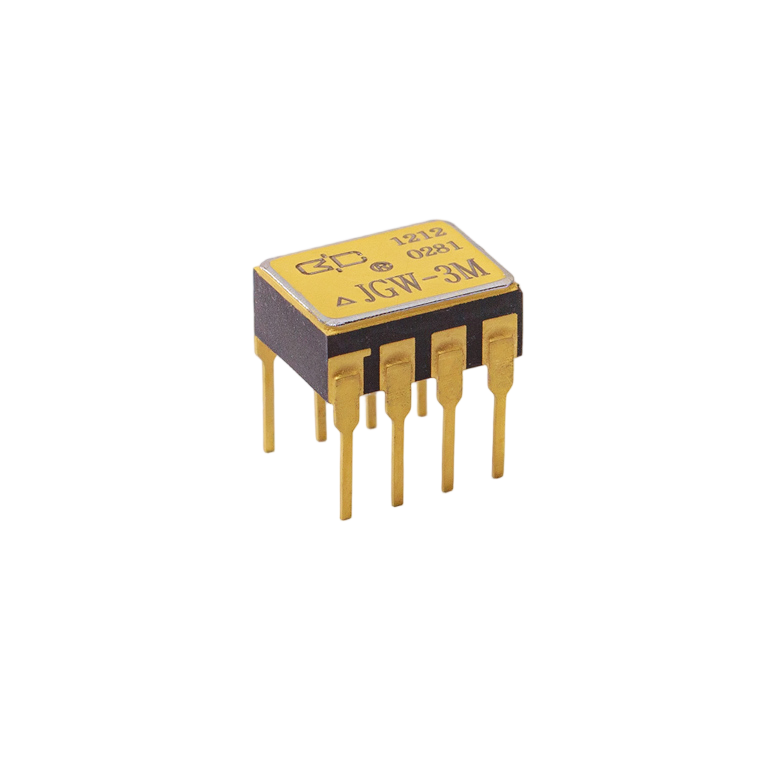

GW-3M |
GW-3M type PhotoMOS relay. Quality grade: Y level. This product can be widely applied in fields such as national defense, scientific research, and industrial automation control, and is suitable for scenarios like ignition of pyrotechnic devices, control of inductive coils and DC solenoid valves, control of micro motors, and lighting control. |
|
JGW-5397M |
JGW-5397M PhotoMOS relay, with product quality level of Y or X. This product can be widely used in the fields of national defense, scientific research, and industrial automation control, and is suitable for computer automation control systems, testing instruments, medical equipment, satellite communication, and other fields. |
|
JGW-5396M |
The JGW-5396M type PhotoMOS relay has a quality grade of either Y or X. This product can be widely applied in the fields of national defense, scientific research, and industrial automation control. It is suitable for computerized automatic control systems, testing instruments, medical equipment, satellite communication, and other scenarios. |
|

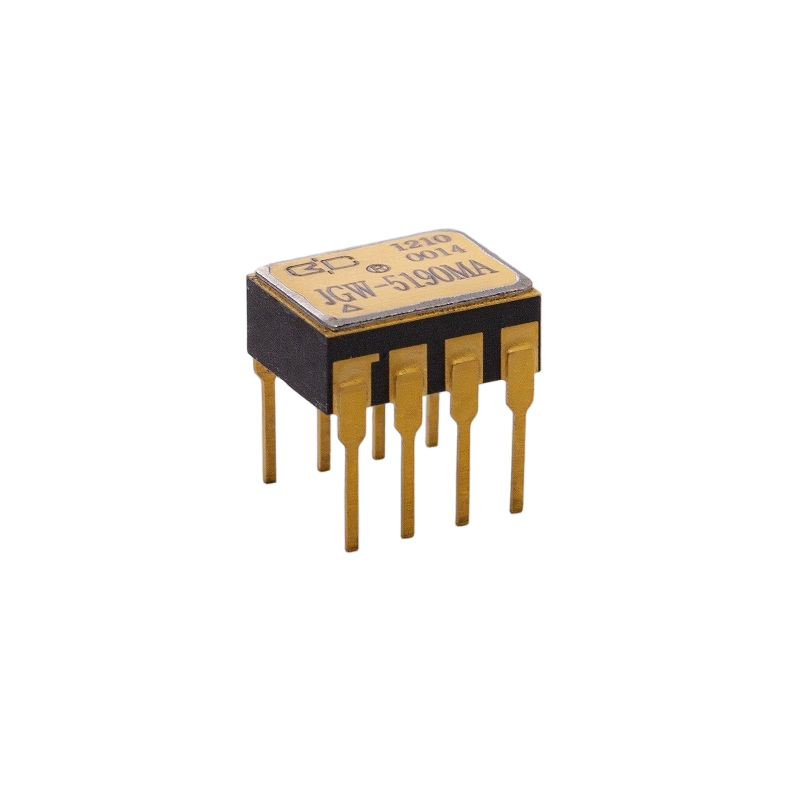

JGW-5190MA |
JGW-5190MA oPhotoMOS relay, with a quality level of Y. This product can be widely used in high-tech fields such as national defense, scientific research, industrial automation control, and electronic information. It is suitable for computer automation equipment systems, testing instruments, medical equipment, power switching, satellite communication, and other occasions. |
|
JGW-5219MB |
JGW-5219MB PhotoMOS relay, with a quality level of X or Y. This product can be widely used in the fields of national defense research, industrial control, and automation management, and is suitable for high reliability applications such as satellite communication and ignition control. |
*** For more product information, please contact the agent.
