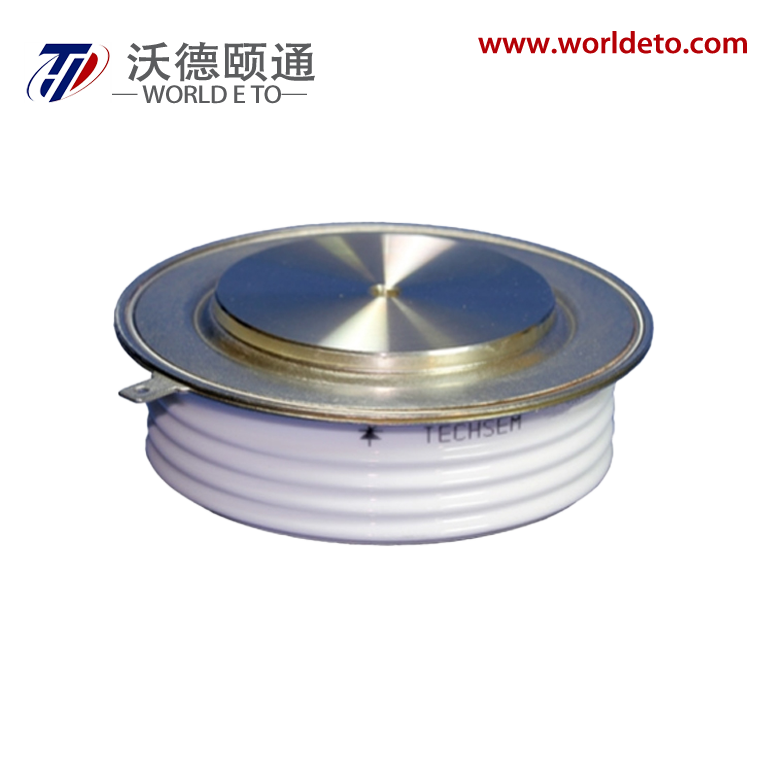

IT(AV) | 1600A |
VDRM | 1200V~2000V |
VRRM | 1000V~1800V |
tq | 20~50µs |
Features
Typical Applications
SYMBOL | CHARACTERISTIC | TEST CONDITIONS | Tj(℃) | VALUE |
UNIT | |||
Min | Type | Max | ||||||
IT(AV) | Mean on-state current | 180°half sine wave 50Hz Double side cooled | TC=55℃ | 125 |
|
| 1600 | A |
VDRM | Repetitive peak off-state voltage | tp=10ms |
125 | 1200 |
| 2000 | V | |
VRRM | Repetitive peak reverse voltage | 1000 |
| 1800 | V | |||
IDRM IRRM | Repetitive peak current | at VDRM at VRRM | 125 |
|
| 120 | mA | |
ITSM | Surge on-state current | 10ms half sine wave VR=0.6VRRM |
125 |
|
| 18 | kA | |
I2t | I2t for fusing coordination |
|
| 1620 | 103A2s | |||
VTO | Threshold voltage |
|
125 |
|
| 1.27 | V | |
rT | On-state slope resistance |
|
| 0.22 | mΩ | |||
VTM | Peak on-state voltage |
ITM=3000A, F=28kN | 20≤tq≤28 |
25 |
|
| 2.20 | V |
29≤tq≤50 |
|
| 2.00 | V | ||||
dv/dt | Critical rate of rise of off-state voltage | VDM=0.67VDRM | 125 |
|
| 1000 | V/μs | |
di/dt | Critical rate of rise of on-state current (Non-repetitive) | VDM= 67%VDRM, Gate pulse tr ≤0.5μs IGM= 1.5A | 125 |
|
| 1500 | A/μs | |
Qrr | Recovery charge | ITM= 1000A, tp=4000μs, di/dt=-20A/μs, VR= 100V | 125 |
| 750 |
| μC | |
tq | Circuit commutated turn-off time | ITM= 1000A ,tp=4000μs, VR= 100V dv/dt=30V/μs ,di/dt=-20A/μs | 125 | 15 |
| 50 | μs | |
IGT | Gate trigger current |
VA= 12V, IA= 1A |
25 | 40 |
| 250 | mA | |
VGT | Gate trigger voltage | 0.9 |
| 2.5 | V | |||
IH | Holding current | 20 |
| 500 | mA | |||
IL | Latching current |
|
| 1000 | mA | |||
VGD | Non-trigger gate voltage | VDM=67%VDRM | 125 |
|
| 0.3 | V | |
Rth(j-c) | Thermal resistance Junction to case | At 180°sine, double side cooled Clamping force 32kN |
|
|
| 0.016 |
℃ /W | |
Rth(c-h) | Thermal resistance case to heatsink |
|
|
| 0.004 | |||
Fm | Mounting force |
|
| 27 |
| 34 | kN | |
Tvj | Junction temperature |
|
| -40 |
| 125 | ℃ | |
Tstg | Stored temperature |
|
| -40 |
| 140 | ℃ | |
Wt | Weight |
|
|
| 640 |
| g | |
Outline | KT54cT |
