SiC Module

SCE600R12MA3,SiC Module,

1200V 600A 2.7mΩ

Brand:

SCE

Spu:

SCE600R12MA3

Appurtenance:

Product Brochure:DOWNLOAD

Introduction
Key Parameters
Product selection catalogue
Dimensions and Circuit

Introduction

Features

n Industry Standard 62mm Footprint

n Ultra Low Loss, High-Frequency Operation

n Zero Reverse Recovery from Diodes

n Zero Turn-off Tail Current from MOSFET

n Normally-off, Fail-Safe Device Operation

n Copper Baseplate and Silicon Nitride Insulator

Applications

n High Frequency Switching Application

n DC/DC Converter

n Solar and Wind Inverters

n UPS and SMPS

n Traction


Key Parameters

Key Parameters

Symbol	Parameter	Values			Unit	Test Conditions
Absolute maximum rating
VDS	Drain-Source Voltage	1200			V	TC=25°C
ID	Drain Current (continuous)	600			A	TC=25°C
TJ	Junction Temperature	175			℃
Symbol	Parameter	Min.	Typ.	Max.	Unit	Test Conditions
Static characteristics
RDS(on)	Static Drain-Source on Resistance	-	2.7	3.7	mΩ	VGS=18V; ID=300A; TC=25°C
Dynamic characteristics
QG	Total Gate Charge	-	1428	-	nC	VDD=800V; VGS=-5/+18V; ID=300A; TC=25°C
QGD	Gate-Drain Charge	-	469	-	nC	VDD=800V; VGS=-5/+18V; ID=300A; TC=25°C
Source-drain diode
QRR	Reverse Recovery Charge	-	3678	-	nC	VGS=-5/+18V; IF=300A; VR=800V; Load=100µH; TJ=25°C

Absolute Maximum Ratings (at TC=25°C unless otherwise specified)

Symbol	Parameter	Values	Unit
VDS	Drain-Source Voltage	1200	V
VGS	Gate-Source Voltage (dynamic)	-10/+22	V
ID	Drain Current (continuous)	600	A
IDM	Drain Current (pulsed)	1200	A
Top; Tstg	Operating and Storage Temperature Range	-40 to +150	℃
TJ	Junction Temperature	175	℃
Rth Jh	Thermal Resistance, Junction-to-Heatsink	0.12	℃/W

Product selection catalogue

Product List	VDS	RDS(on) @25℃	ID
SCE600R12MA3	1200V	2.7mΩ	600A
SCE600N1200MA3_F	1200V	2.7mΩ	600A
SCR2P7N1200MA3_X	1200V	2.7mΩ	510A
SCE500N1200MA3	1200V	3.2mΩ	500A
SCE400N1200MA3	1200V	4mΩ	400A
SCE400N1200MA3_F	1200V	4mΩ	400A
SCE300N1200MA3	1200V	5.3mΩ	300A
SCE300N1200MA3_X	1200V	5.3mΩ	300A
SCE300N1200MA3_F	1200V	5.3mΩ	300A
SCR6N1200MA3	1200V	5.3mΩ	210A
SCR8N1200MA3	1200V	7.5mΩ	210A
SCE200N1200MA3_F	1200V	8mΩ	200A
SCE200N1200MA3_H	1200V	8mΩ	200A
SCR9N1200MA3	1200V	9mΩ	180A
SCE600N1700MA3	1700V	4.3mΩ	600A
SCE600N1700MA3_H	1700V	4.3mΩ	600A
SCE400N1700MA3	1700V	6.5mΩ	400A
SCE400N1700MA3F	1700V	6.5mΩ	400A
SCE300N1700MA3	1700V	8.7mΩ	300A
SCE300N1700MA3_F	1700V	8.7mΩ	300A
SCE200N1700MA3	1700V	13mΩ	200A
SCE200N1700MA3_H	1700V	13mΩ	200A

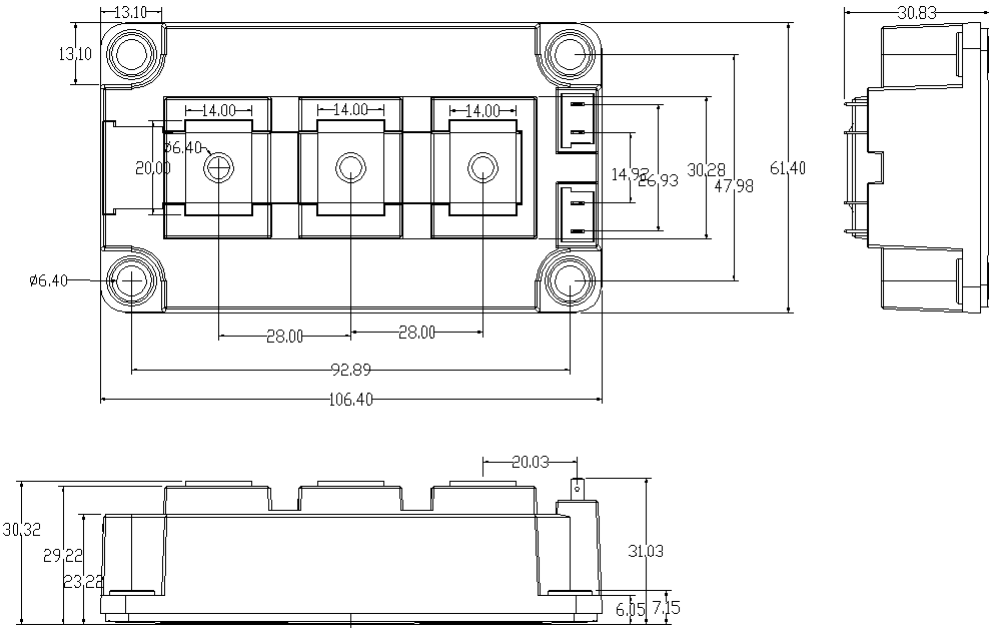

Dimensions and Circuit
